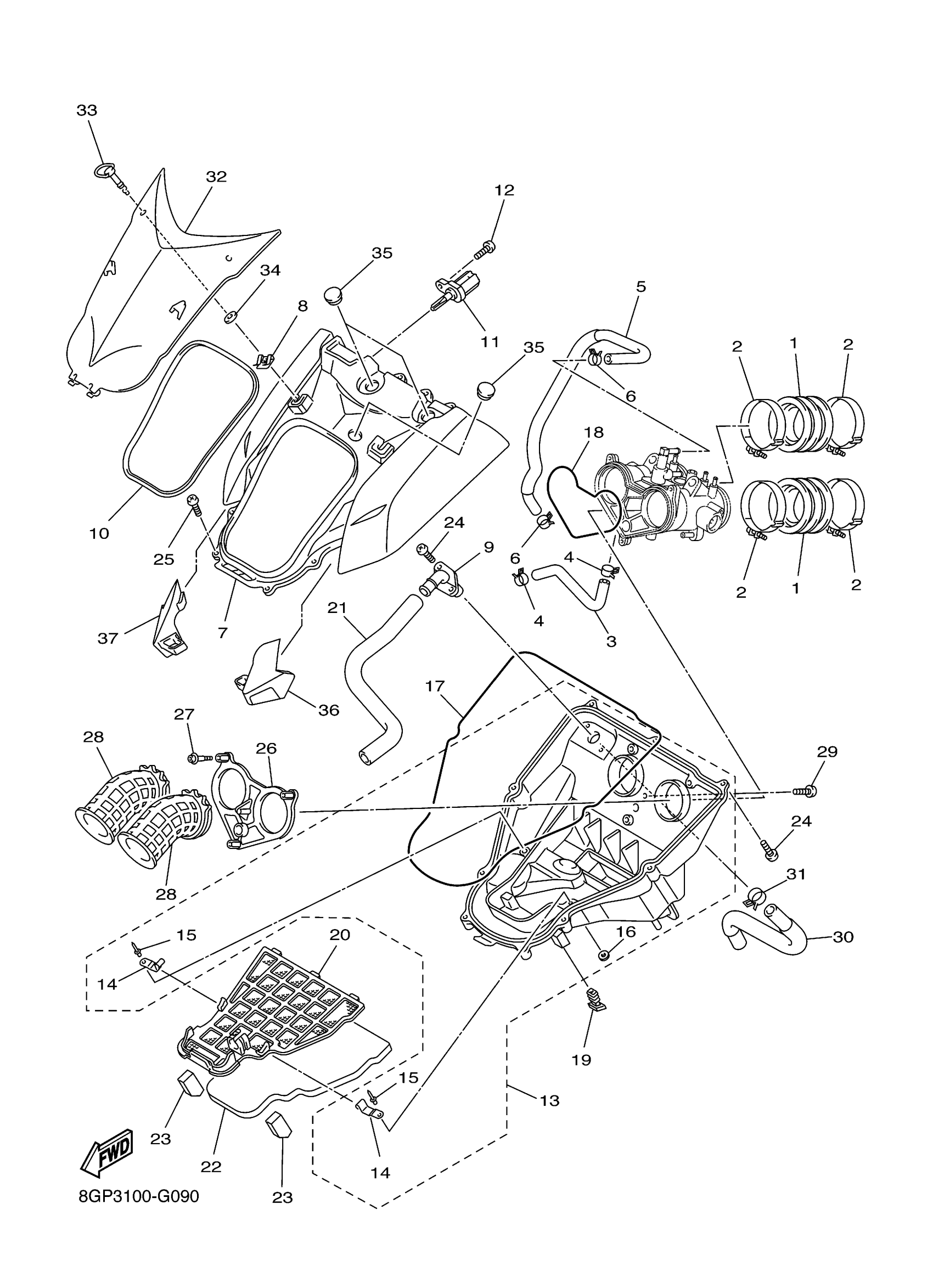

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 INTAKE Diagram

#

Description
Price

1

JOINT

8GC-13595-10-00

$21.97

2

HOSE CLAMP ASSY

90450-60004-00

$14.64

3

HOSE 1

8GC-1243A-00-00

$10.77

4

CLIP

90467-110A2-00

$6.69

5

HOSE 3

8GC-12578-00-00

$34.75

6

CLIP

90467-110A2-00

$6.69

7

SILENCER, INTAKE 1

8GC-14431-00-00

$55.22

8

PLATE, SPRING

4XV-2177L-01-00

$6.20

9

PIPE, JOINT

8GC-14485-00-00

$4.77

10

SEAL

8GC-14457-00-00

$59.20

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$49.83

12

SCREW, PANHEAD TAPPING

97702-50520-00

$0.28

13

SILENCER, INTAKE 2

8GC-W1444-10-00

$69.49

14

HINGE

8GC-14406-00-00

$7.15

15

RIVET, BLIND

90267-32013-00

$1.91

16

WASHER, PLATE

90201-03008-00

$6.23

17

SEAL

8GC-14452-00-00

$8.28

18

SEAL

51Y-14462-00-00

$11.61

19

GROMMET

8GC-14435-00-00

$3.54

20

PLATE, ELEMENT

8GC-14472-10-00

$28.92

21

PIPE

8GC-14419-00-00

$40.18

22

ELEMENT, AIR CLEANER

8GC-14451-00-00

$26.92

23

DAMPER 1

8GC-14425-00-00

$2.00

24

SCREW, TRUSS TAP.

97707-50025-00

$6.18

25

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

26

JOINT, AIR CLEANER 1

8GC-14453-00-00

$10.45

27

BOLT

90109-05005-00

$2.75

28

FUNNEL, AIR

8GC-14469-00-00

$15.02

29

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

30

PIPE, OIL TANK BREATHER

8GC-21745-00-00

$42.68

31

CLIP(34X)

90467-22097-00

$7.14

32

COVER 1

8GC-14417-00-00

$30.57

33

HEAD

3FV-28386-00-00

$22.96

34

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

35

GROMMET

8GC-14445-00-00

$2.71

36

PAD, SILENCER 1

8GC-78251-00-00

$18.95

37

PAD, SILENCER 2

8GC-78252-00-00

$18.95
