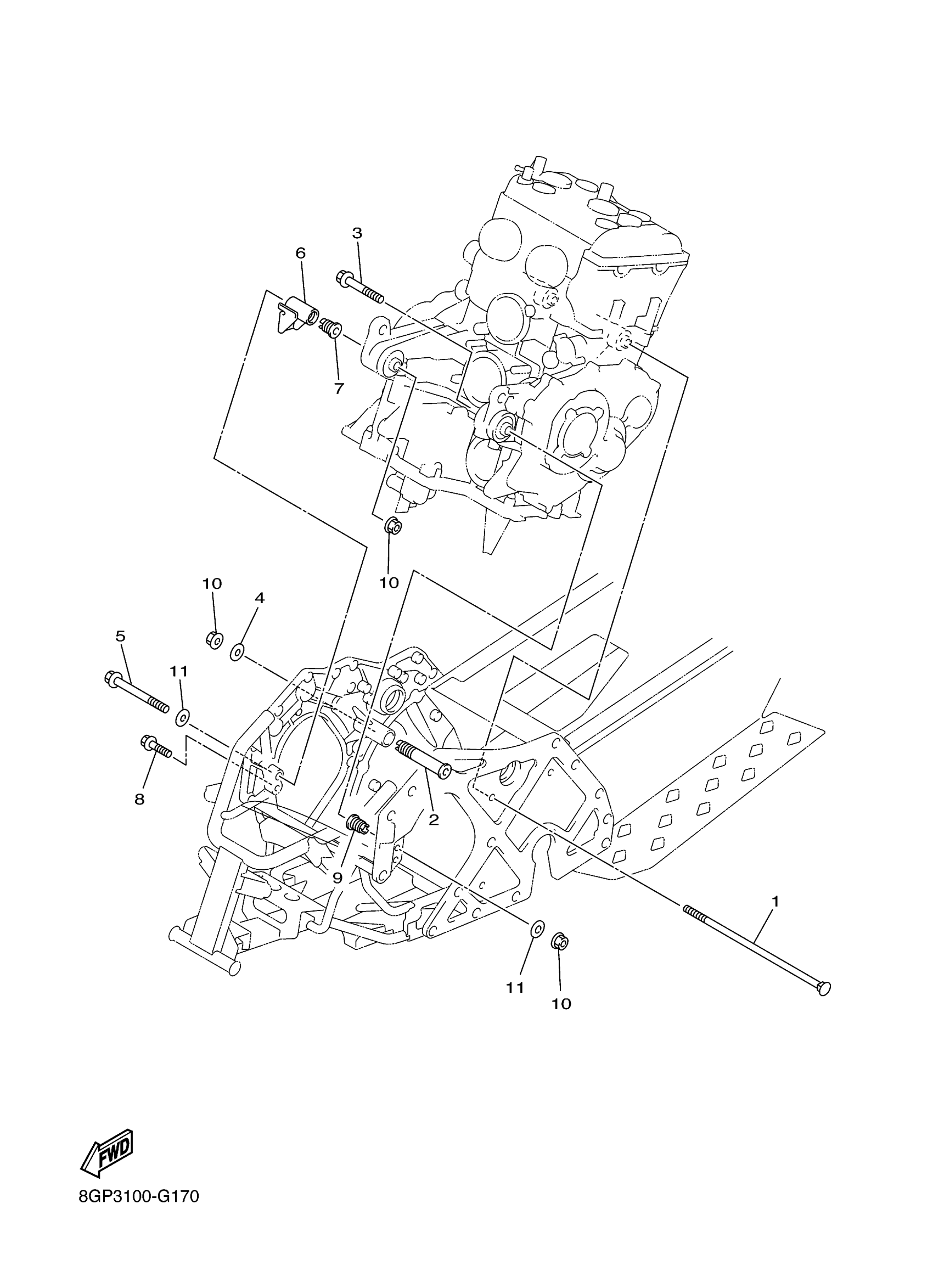

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT, ENGINE MOUNTING 1

8GC-21481-01-00

$28.80

2

BOLT

8GC-2149C-00-00

$62.52

3

BOLT, FLANGE(4MY)

95817-10100-00

$4.23

4

WASHER, PLATE (17K)

90201-106F2-00

$7.66

5

BOLT, FLANGE

95817-10170-00

$5.32

6

BRACKET 1

8GK-2141A-00-00

$42.40

7

BOLT, ENGINE ADJUSTING

8GK-21495-00-00

$26.69

8

BOLT, FLANGE

95814-08045-00

$3.95

9

BOLT, ENGINE ADJUSTING

8GC-21495-00-00

$26.69

10

NUT(4KG)

90179-10658-00

$7.49

11

WASHER, PLATE

90201-10144-00

Unavailable
