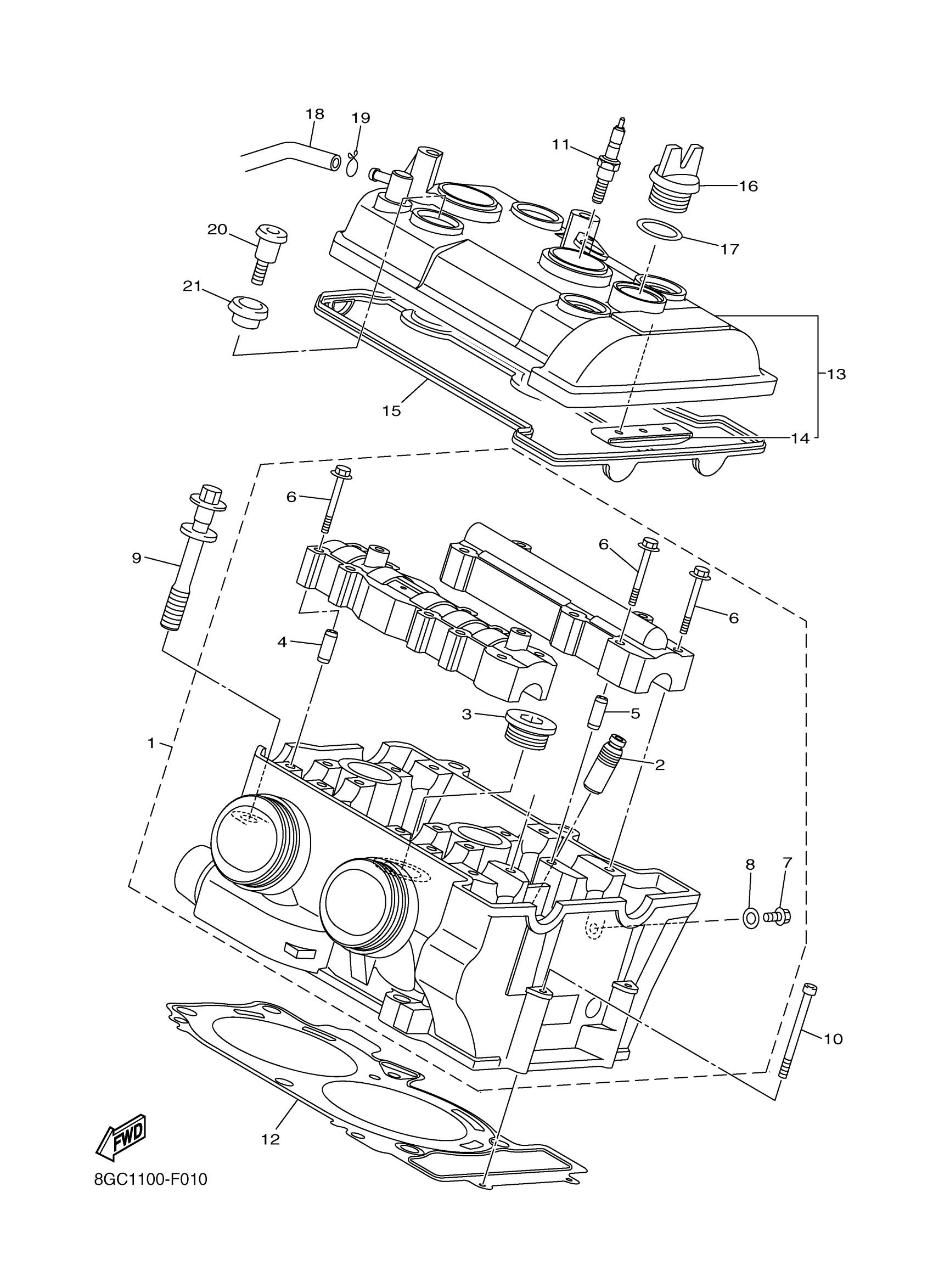

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

8GC-11101-03-00

$1,339.99

2

GUIDE, INTAKE VALVE

5NL-11133-10-00

$59.82

3

PLUG, STRAIGHT SCREW

90340-20004-00

Unavailable

4

PIN, DOWEL(3XW)

91808-16023-00

$5.48

5

PIN, DOWEL(3XW)

91808-16023-00

$5.48

6

BOLT, WASHER BASED

90105-06027-00

$6.23

7

BOLT, FLANGE

95022-06012-00

$3.00

8

GASKET 256113960000

90430-06014-00

$7.23

9

BOLT, WITH WASHER

90119-10004-00

$7.91

10

BOLT

91312-06060-00

$7.45

11

CR9EKB NGK SPLUG 10PK

CR9-EKB00-00-00

$13.36

12

GASKET, CYLINDER HEAD 1

8GC-11181-00-00

$44.57

13

COVER, CYLINDER HEAD 1

8GC-11191-00-00

$200.86

14

GUIDE, STOPPER 2

5BE-12241-01-00

$25.54

15

GASKET, HEAD COVER 1

8GC-11193-00-00

$37.82

16

PLUG, OIL

3Y1-15363-10-00

$17.02

17

O-RING (646)

93210-19123-00

$6.91

18

PIPE, BREATHER 1

8GC-11166-00-00

$16.75

19

CLIP

90467-100A1-00

$6.38

20

BOLT(4BP)

90109-066F0-00

$6.38

21

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.68
