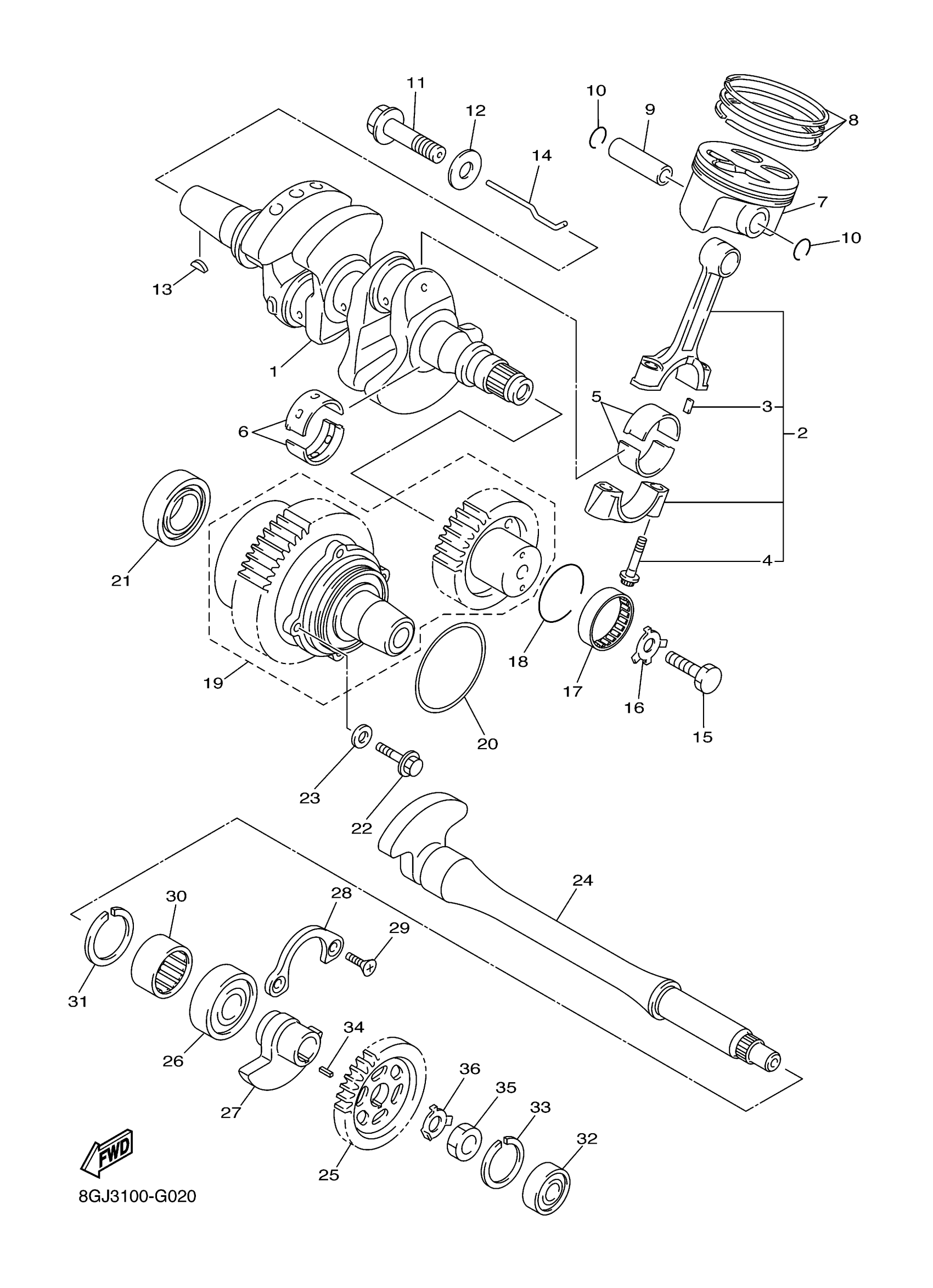

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

8GC-11411-00-00

$1,113.99

2

CONNECTING ROD ASSY

8GC-11650-01-00

$190.40

3

PIN, DOWEL

93603-07073-00

$5.20

4

BOLT, CONNECTING ROD

5VY-11654-01-00

$14.25

5

PLANE BEARING, CONNECTING ROD

4C8-11656-00-00

$18.82

5

PLANE BEARING, CONNECTING ROD

4C8-11656-10-00

$18.95

5

PLANE BEARING, CONNECTING ROD

4C8-11656-20-00

$18.63

5

PLANE BEARING, CONNECTING ROD

4C8-11656-A0-00

$9.18

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-00-00

$17.71

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-10-00

$17.58

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-20-00

$17.63

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-30-00

$17.68

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-A0-00

$17.72

7

PISTON (STD)

8GC-11631-00-00

$124.54

8

PISTON RING SET (STD)

4C8-11603-01-00

Unavailable

9

PIN, PISTON

5VY-11633-00-00

$23.94

10

CLIP (1J7)

90468-12069-00

$6.68

11

BOLT, FLANGE

90105-12032-00

$33.29

12

WASHER (838)

90201-12191-00

$6.11

13

KEY WOODRUFF 146115450000

90280-03017-00

$5.78

14

SHAFT 1

59J-11455-00-00

$10.72

15

BOLT

90101-10009-00

$8.48

16

WASHER, LOCK

90215-10007-00

$3.49

17

BEARING

93311-33588-00

$61.60

18

CIRCLIP(1GU)

93450-46113-00

$1.49

19

DRIVE GEAR SET

8GC-W114B-00-00

$979.99

20

O-RING

93210-53679-00

$3.76

21

BEARING

93306-27209-00

$67.09

22

BOLT, FLANGE

95817-06025-00

$1.46

23

GASKET (4V2)

90430-06166-00

$3.45

24

SHAFT, BALANCER 1

8GC-11583-10-00

$312.55

25

GEAR, BALANCE WEIGHT

8GC-11531-10-00

$75.92

26

BEARING

93306-30324-00

$34.09

27

WEIGHT 1

8GC-11454-10-00

$77.00

28

PLATE, BEARING COVER

4JT-15383-00-00

$23.86

29

SCREW, COUNTERSUNK

90151-06023-00

$6.52

30

BEARING, CYLINDRICAL(3YL)

93311-62574-00

$54.64

31

CIRCLIP(2JN)

93420-37074-00

Unavailable

32

BEARING(3WF)

93306-20119-00

$28.48

33

CIRCLIP(46T)

99009-32500-00

$6.22

34

KEY, STRAIGHT

90282-04055-00

$1.95

35

NUT

90170-14003-00

$3.03

36

WASHER, LOCK

90215-14001-00

$2.45
