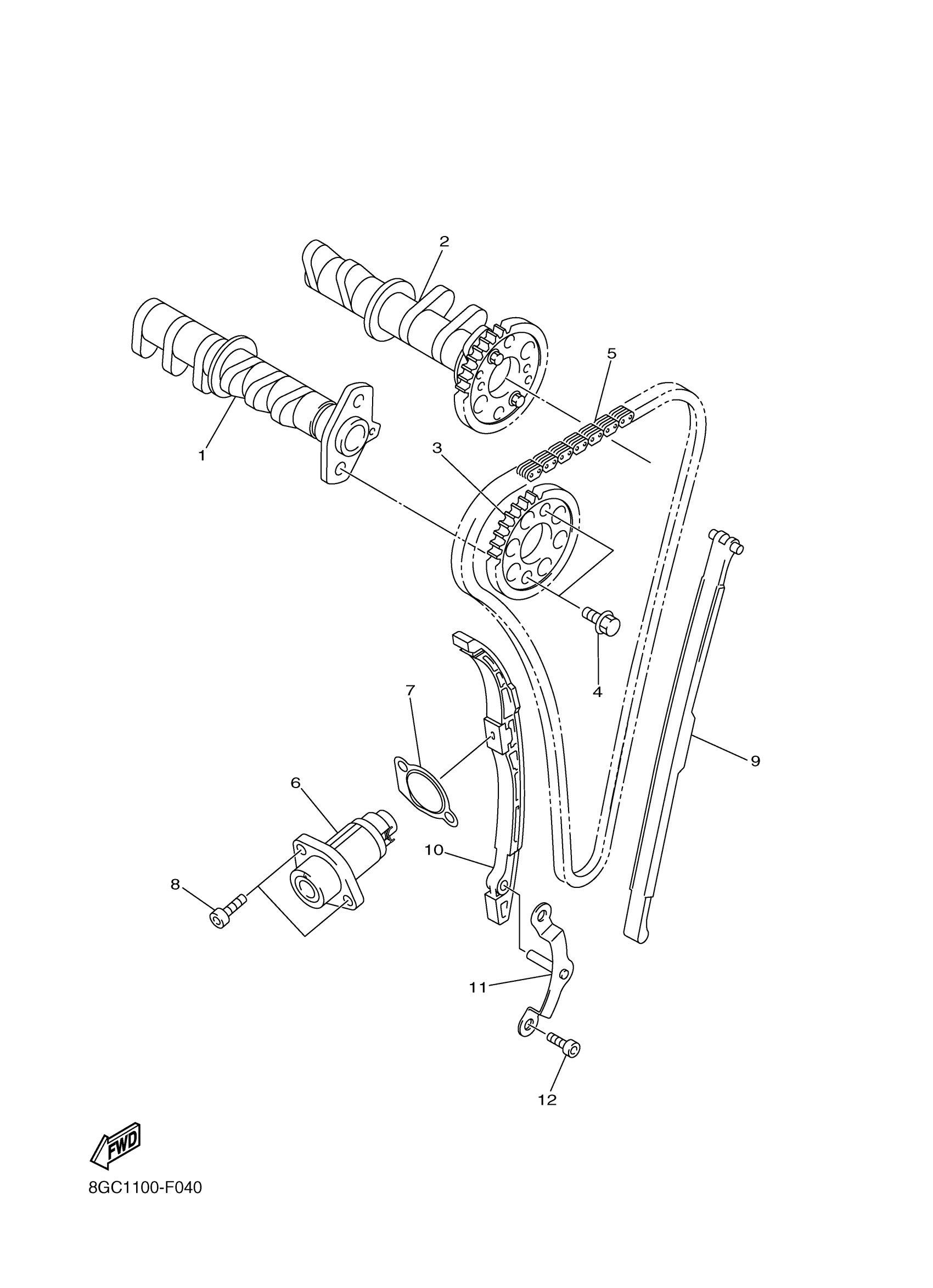

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

8GC-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

8GC-12180-02-00

Unavailable

3

SPROCKET, CAM CHAIN

8GC-12176-00-00

$66.23

4

BOLT, FLANGE

90105-07004-00

$4.76

5

CHAIN

94591-64118-00

$58.13

6

TENSIONER ASSY, CAM CHAIN

8GC-12210-11-00

Unavailable

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.42

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$6.02

9

DAMPER, CHAIN 1

5EB-12251-01-00

$42.88

10

DAMPER, CHAIN 2

8GC-12252-00-00

Unavailable

11

PLATE, GUIDE STOPPER 1

8GC-12233-00-00

$14.23

12

BOLT (33M)

91312-06014-00

$4.52
