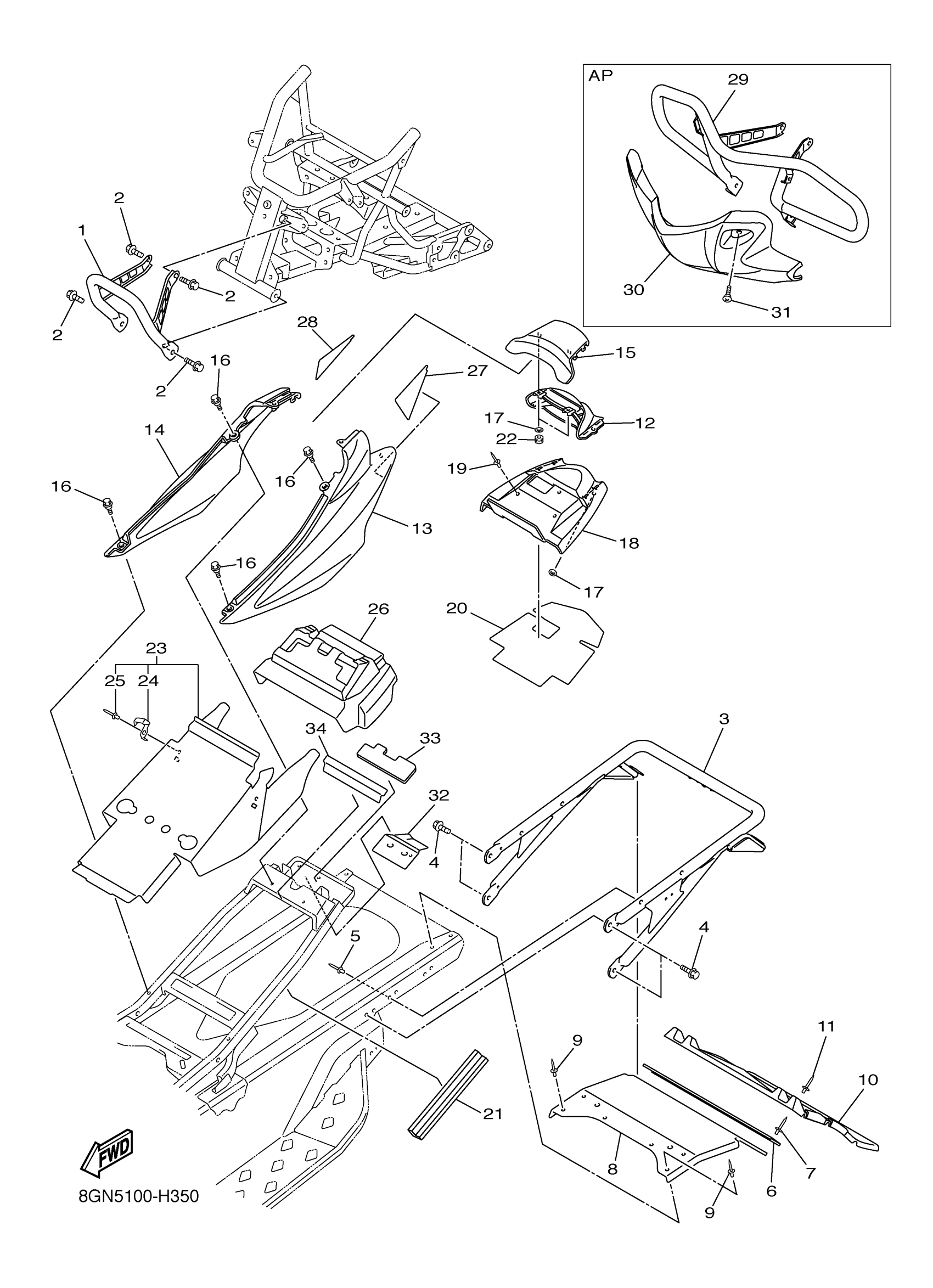

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8GC-77511-00-00

$126.99

2

BOLT, FLANGE

95814-08016-00

$9.49

3

BUMPER, REAR 1

8GK-77541-00-00

Unavailable

4

BOLT, FLANGE

95814-08016-00

$9.49

5

RIVET, BLIND

90267-47195-00

$3.88

6

STOPPER, FLAP

8GC-77596-00-00

Unavailable

7

RIVET, BLIND

90267-47195-00

$3.88

8

PANEL, SUB FRAME 5

8GC-21916-00-00

$89.99

9

RIVET, BLIND

90267-47195-00

$3.88

10

FLAP

8GT-K7595-00-00

Unavailable

11

RIVET, BLIND(8CH)

90267-47187-00

$2.34

12

COVER, TAILLIGHT

8GC-84516-01-00

$26.99

13

PROTECTOR 1

8GC-77551-30-00

Unavailable

13

PROTECTOR 1

8GC-77551-40-00

Unavailable

14

PROTECTOR 2

8GC-77552-30-00

$44.99

14

PROTECTOR 2

8GC-77552-40-00

Unavailable

15

PROTECTOR 3

8GC-77553-00-00

Unavailable

15

PROTECTOR 3

8GC-77553-50-00

Unavailable

16

BOLT

90109-06220-00

Unavailable

17

NUT, SPRING

90183-06071-00

Unavailable

18

BRACKET, TAILLIGHT

8GC-2117E-01-00

Unavailable

19

RIVET, BLIND(8CH)

90267-47187-00

$2.34

20

SEAT 1

8GC-2112B-00-00

Unavailable

21

SHEET,2

8GC-2113C-00-00

Unavailable

22

GROMMET(1WG)

90480-11454-00

Unavailable

23

PROTECTOR 5

8GC-77555-00-00

Unavailable

24

CLAMP(3RW)

90462-08224-00

Unavailable

25

RIVET, BLIND

90267-47195-00

$3.88

26

PROTECTOR 6

8GC-77556-00-00

Unavailable

27

PROTECTOR, SIDE 1

8GC-77561-00-00

Unavailable

28

PROTECTOR, SIDE 2

8GC-77562-00-00

Unavailable

29

BUMPER, FRONT 1

8GR-77511-00-00

Unavailable

30

PROTECTOR 5

8GR-77555-00-00

Unavailable

31

SCREW(2XF)

90149-06263-00

Unavailable

32

PROTECTOR 7

8GC-77557-00-00

Unavailable

33

INSULATOR 1

8GC-8258K-00-00

Unavailable

34

INSULATOR 2

8GC-8259K-00-00

Unavailable
