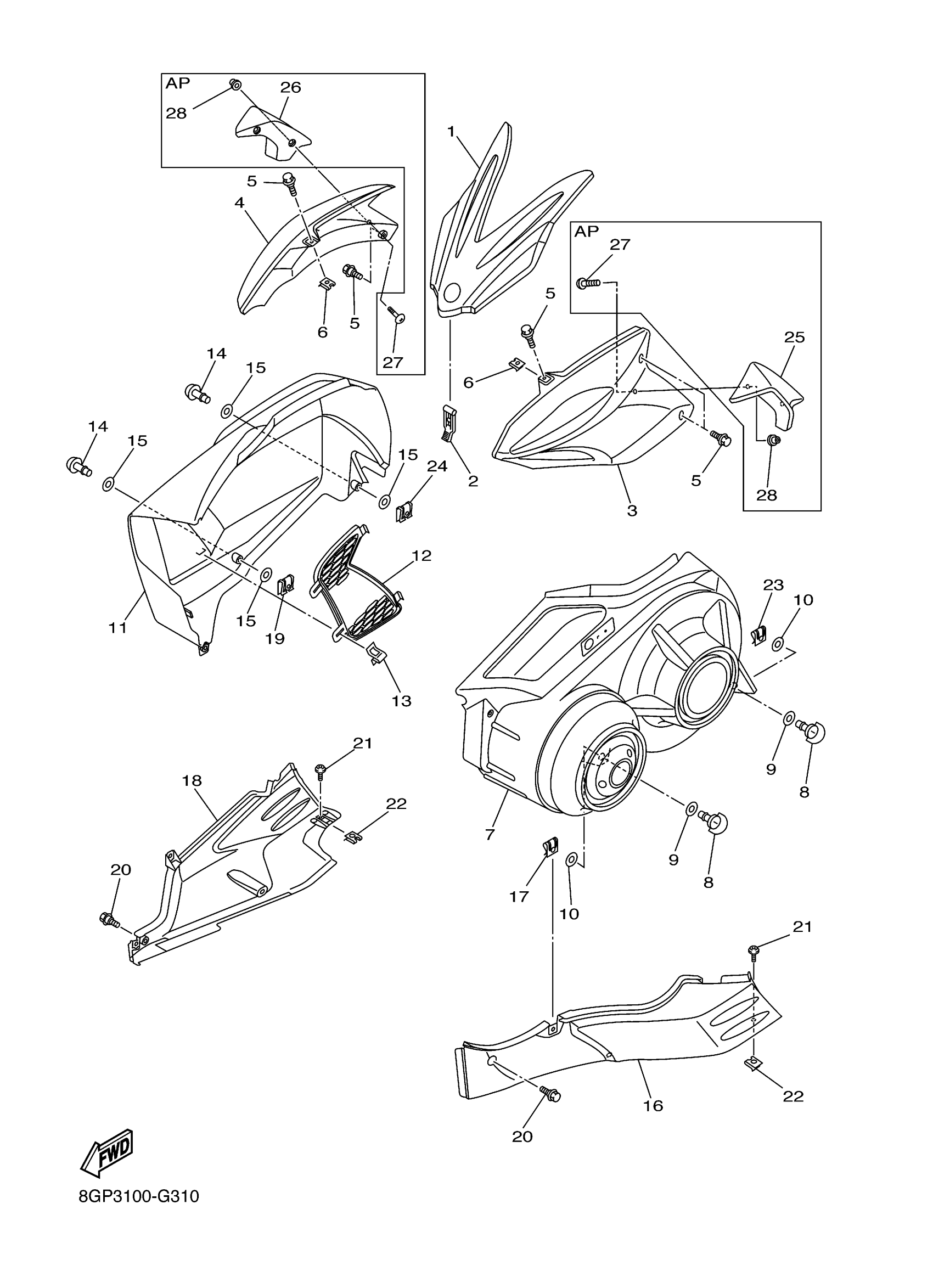

Yamaha PZ50RTXW (PHAZER RTX) 8GN30 2008 SHROUD Diagram

#

Description
Price

1

SHROUD

8GC-77111-00-00

$99.99

1

SHROUD

8GC-77111-30-00

$99.99

2

BAND

59V-21646-00-00

$22.99

3

PANEL 1

8GC-2835U-00-00

Unavailable

3

PANEL 1

8GC-2835U-30-00

$63.99

4

PANEL 2

8GC-2835V-00-00

Unavailable

4

PANEL 2

8GC-2835V-30-00

$65.99

5

BOLT

90109-06220-00

$10.49

6

NUT, SPRING

90183-06100-00

$10.49

7

HOOD 3

8GC-2197H-20-00

Unavailable

8

HEAD

3FV-28386-00-00

$40.99

9

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

10

WASHER, SPECIAL 1

5TJ-21757-00-00

$7.99

11

HOOD 4

8GC-2198H-21-00

Unavailable

12

LOUVER 4

8GC-77134-00-00

Unavailable

13

CLIP

90468-06001-00

Unavailable

14

HEAD

5PW-28386-00-00

Unavailable

15

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

16

FRAME UNDER 1

8GC-2196A-20-00

Unavailable

17

PLATE, SPRING

4XV-2177L-01-00

Unavailable

18

FRAME, UNDER 2

8GC-2196E-20-00

Unavailable

19

PLATE, SPRING

5PW-2177L-01-00

Unavailable

20

BOLT

90109-06220-00

$10.49

21

SCREW

90149-06105-00

Unavailable

22

NUT, SPRING

90183-06100-00

$10.49

23

PLATE, SPRING

4XV-2177L-01-00

Unavailable

24

PLATE, SPRING

5PW-2177L-01-00

Unavailable

25

PROTECTOR, SIDE 1

8GK-77561-00-00

Unavailable

26

PROTECTOR, SIDE 2

8GK-77562-00-00

Unavailable

27

SCREW, BIND (8K2)

98902-05016-00

Unavailable

28

NUT(1KT)

90179-05523-00

Unavailable
