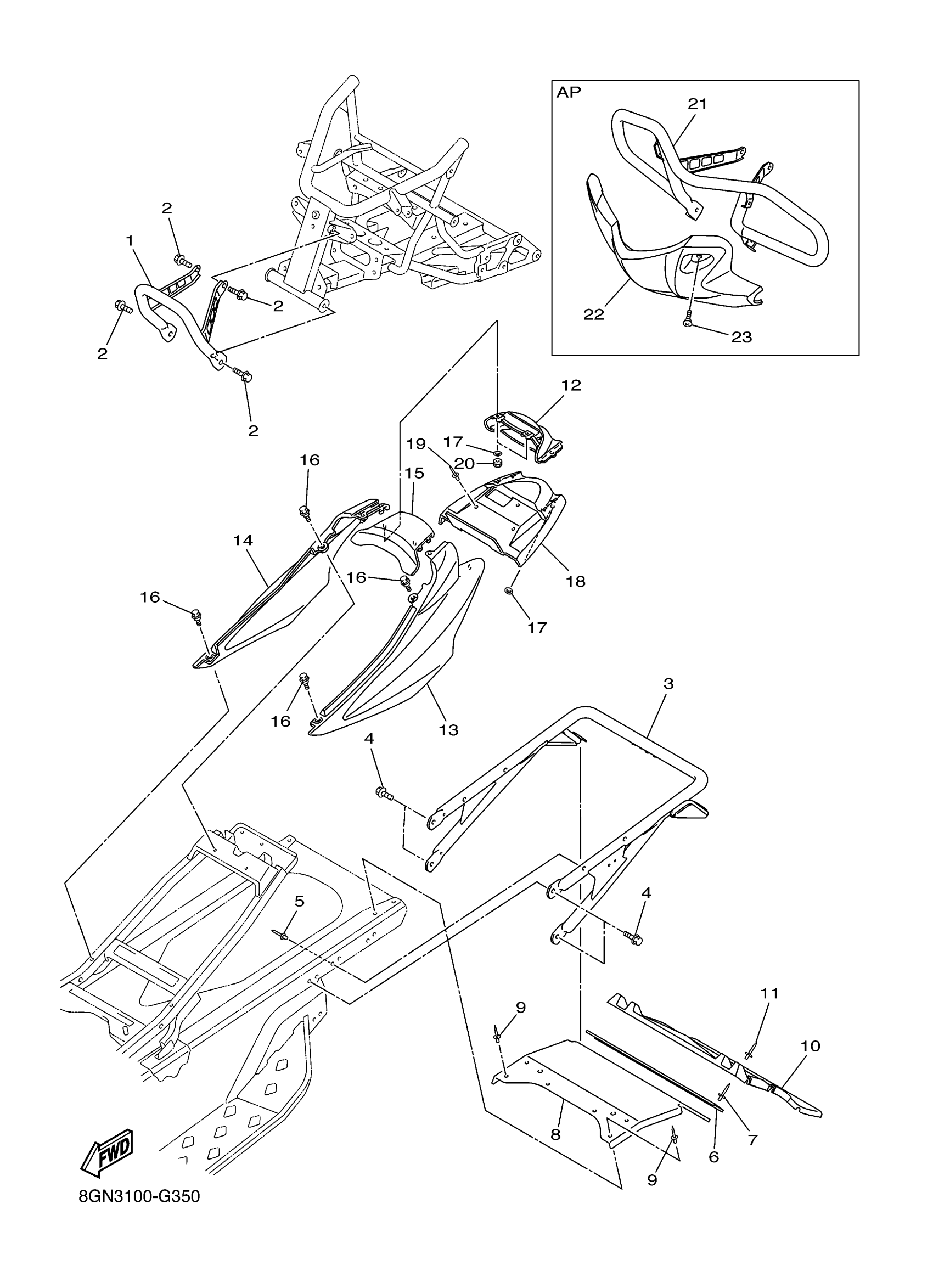

Yamaha PZ50RTXW (PHAZER RTX) 8GN30 2008 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8GC-77511-00-00

$126.99

2

BOLT, FLANGE

95814-08016-00

$9.49

3

BUMPER, REAR 1

8GC-77541-09-00

Unavailable

4

BOLT, FLANGE

95814-08016-00

$9.49

5

RIVET, BLIND

90267-47195-00

$3.88

6

STOPPER, FLAP

8GC-77596-00-00

Unavailable

7

RIVET, BLIND

90267-47195-00

$3.88

8

PANEL, SUB FRAME 5

8GC-21916-00-00

$89.99

9

RIVET, BLIND

90267-47195-00

$3.88

10

FLAP

8GT-K7595-00-00

Unavailable

11

RIVET, BLIND(8CH)

90267-47187-00

$2.34

12

COVER, TAILLIGHT

8GC-84516-01-00

$26.99

13

PROTECTOR 1

8GC-77551-00-00

Unavailable

13

PROTECTOR 1

8GC-77551-30-00

Unavailable

14

PROTECTOR 2

8GC-77552-00-00

Unavailable

14

PROTECTOR 2

8GC-77552-30-00

Unavailable

15

PROTECTOR 3

8GC-77553-00-00

Unavailable

15

PROTECTOR 3

8GC-77553-30-00

Unavailable

16

BOLT

90109-06220-00

Unavailable

17

NUT, SPRING

90183-06071-00

Unavailable

18

BRACKET, TAILLIGHT

8GC-2117E-01-00

Unavailable

19

RIVET, BLIND(8CH)

90267-47187-00

$2.34

20

GROMMET(1WG)

90480-11454-00

Unavailable

21

BUMPER, FRONT 1

8GR-77511-00-00

Unavailable

22

PROTECTOR 5

8GR-77555-00-00

Unavailable

23

SCREW(2XF)

90149-06263-00

Unavailable
