2017 Yamaha Phazer RTX (PZ50RTHB) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2017 Yamaha Phazer RTX (PZ50RTHB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

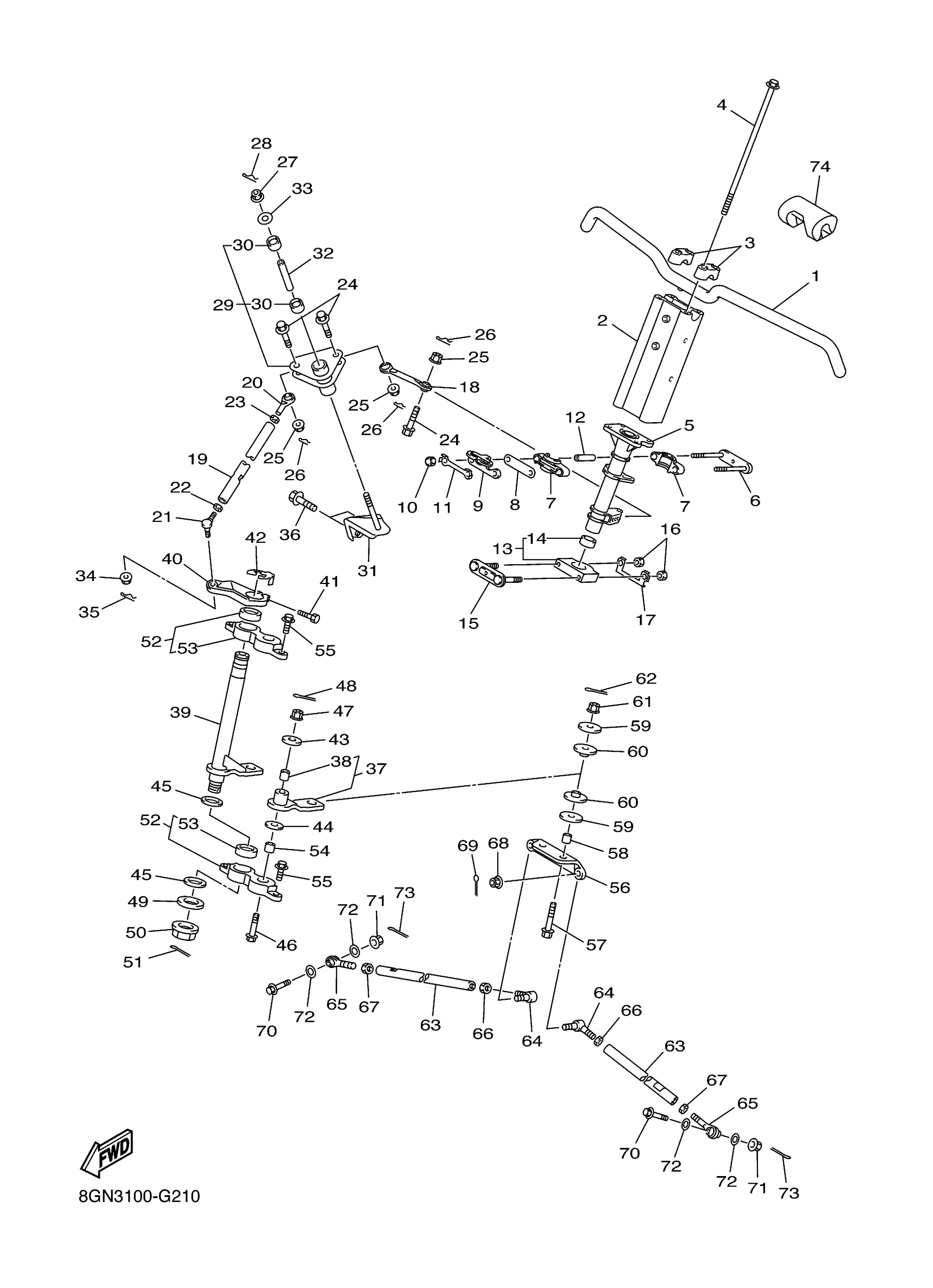

2017 Yamaha Phazer RTX (PZ50RTHB) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

8GN-26111-10-00

1
Out of stock

2

JOINT

8GC-2381B-00-00

—
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

BOLT

8GC-23436-00-00

1
Out of stock

5

COLUMN, STEERING 2

8GC-23813-00-00

—
Out of stock

6

HOLDER 2

8GC-23867-00-00

—
Out of stock

7

PLANE BEARING, STEERING

8FA-23812-00-00

1
Out of stock

8

HOLDER 2

8FA-23867-00-00

—
Out of stock

9

HOLDER, BEARING

8GC-23872-00-00

—
Out of stock

10

NUT, CAP

95307-08800-00

1
Out of stock

11

WASHER, LOCK 1

1UY-23894-01-00

1
Out of stock

12

COLLAR

90387-09006-00

1
Out of stock

13

PLANE BEARING, STEERING

8GC-23812-00-00

1
Out of stock

14

BEARING

93317-425B7-00

1
Out of stock

15

HOLDER

8GJ-23857-00-00

1
Out of stock

16

NUT(6L2)

95333-08600-00

—
Out of stock

17

WASHER, LOCK 1

8GJ-23894-00-00

—
Out of stock

18

ROD, STEERING

8GC-23828-00-00

—
Out of stock

19

ROD, STEERING RELAY

8GC-23821-00-00

—
Out of stock

20

JOINT, UNIVERSAL 1

8GC-23841-00-00

—
Out of stock

21

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

22

NUT (682)

95380-10700-00

1
Out of stock

23

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

24

BOLT, WASHER BASED(47X)

90105-08321-00

—
Out of stock

25

NUT,FLANGE(J10)

95702-08500-00

—
Out of stock

26

CLIP

90468-16001-00

—
Out of stock

27

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

28

CLIP (7U6)

90468-18121-00

—
Out of stock

29

ARM, CONTROL 1

8GC-2384E-00-00

—
Out of stock

30

BEARING, CYLINDRICAL(3VR)

93317-41767-00

—
Out of stock

31

BRACKET 1

8GK-23881-00-00

—
Out of stock

32

NUT

8GC-23846-00-00

—
Out of stock

33

WASHER, PLATE

90201-121U3-00

—
Out of stock

34

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

35

PIN, COTTER (648)

91490-20015-00

—
Out of stock

36

BOLT, FLANGE

95812-08030-00

—
Out of stock

37

ARM PIVOT ASSY

8GC-2389K-00-00

—
Out of stock

38

BUSH

8GC-23526-00-00

—
Out of stock

39

PIVOT ARM ASSY 2

8GC-2389M-01-00

—
Out of stock

40

ARM, INSIDE

8GC-2381A-00-00

—
Out of stock

41

BOLT, SOCKET

91317-08025-00

—
Out of stock

42

CIRCLIP

8GC-23183-00-00

—
Out of stock

43

WASHER, PLATE(N04)

90201-124G7-00

—
Out of stock

44

WASHER PLATE 371115580000

90201-25291-00

—
Out of stock

45

WASHER, PLATE (5F7)

90201-256E4-00

—
Out of stock

46

BOLT 1

8GC-23346-00-00

—
Out of stock

47

95702-12500

95702-12500-00

—
Out of stock

48

PIN, COTTER

91490-25020-00

—
Out of stock

49

WASHER, PLATE

90201-22018-00

—
Out of stock

50

NUT (26H)

90179-22412-00

—
Out of stock

51

PIN, COTTER

91402-20035-00

—
Out of stock

52

BRACKET, PIVOT

8GC-2389H-00-00

—
Out of stock

53

BEARING

93317-425B7-00

1
Out of stock

54

COLLAR

8GC-23113-00-00

—
Out of stock

55

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

56

ARM, IDLER

8GC-23826-00-00

—
Out of stock

57

BOLT, WASHER BASED(4KD)

90105-10728-00

—
Out of stock

58

COLLAR

90387-10070-00

—
Out of stock

59

WASHER, PLATE(JN9)

90201-100S2-00

—
Out of stock

60

BUSH 1

8GC-23362-10-00

—
Out of stock

61

NUT, SELF-LOCKING

90185-10011-00

—
Out of stock

62

PIN, COTTER (648)

91490-20015-00

—
Out of stock

63

ROD, TIE

8GC-23831-00-00

—
Out of stock

64

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

65

JOINT, UNIVERSAL 3

8GC-23847-00-00

—
Out of stock

66

NUT (682)

95380-10700-00

1
Out of stock

67

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

68

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

69

PIN, COTTER (648)

91490-20015-00

—
Out of stock

70

BOLT

8GC-23493-00-00

—
Out of stock

71

NUT,FLANGE(J10)

95702-08500-00

—
Out of stock

72

WASHER, PLATE

90201-06018-00

—
Out of stock

73

PIN, COTTER (648)

91490-20015-00

—
Out of stock

74

PAD, STEERING

8FR-23815-00-00

—
Out of stock
