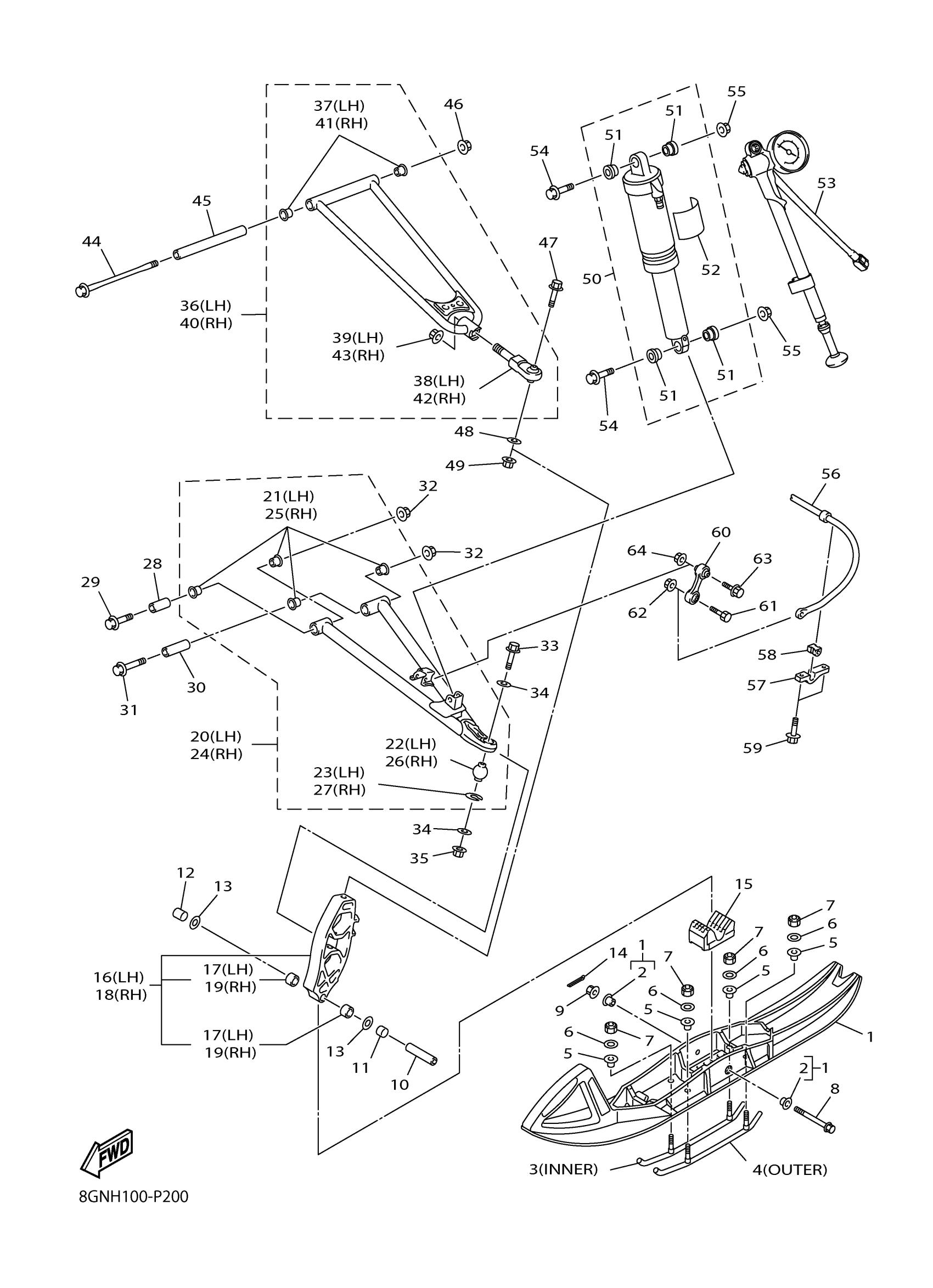

Find the part on the Ski diagram for your 2017 Yamaha Phazer RTX (PZ50RTHB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Phazer RTX (PZ50RTHB) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEN II 135MM TUNER SKI BK

SMA-8JPDS-00-00

1
Out of stock

2

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

3

8JH CARBIDE PAIR - 9MM RD 2"

SMA-8JH31-02-00

1
Out of stock

4

8JH RUNNER SET - NO CARBIDE

SMA-8JH31-01-00

1
Out of stock

5

COLLAR

90387-08064-00

1
Out of stock

6

WASHER, PLATE

90201-08053-00

1
Out of stock

7

NUT, NYLON

95717-08300-00

1
Out of stock

8

BOLT, FLANGE

90105-10070-00

1
Out of stock

9

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

10

COLLAR

90387-1012H-00

1
Out of stock

11

COLLAR

90387-16017-00

1
Out of stock

12

COLLAR

90387-16018-00

1
Out of stock

13

WASHER, PLATE

90201-16022-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1
Out of stock

15

STOPPER 1

8GK-23743-00-00

1
Out of stock

16

STEERING KNUCKLE ASSY (LEFT)

8GK-23501-01-00

—
Out of stock

17

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

18

STEERING KNUCKLE ASSY (RIGHT)

8GK-23502-01-00

—
Out of stock

19

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

20

FRONT LOWER ARM COMP. (LEFT)

8GN-23570-C0-00

—
Out of stock

21

BUSH, SOLID

90381-16003-00

—
Out of stock

22

BALL JOINT 2

8GK-23579-01-00

—
Out of stock

23

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

24

FRONT LOWER ARM COMP. (RIGHT)

8GN-23580-C0-00

—
Out of stock

25

BUSH, SOLID

90381-16003-00

—
Out of stock

26

BALL JOINT 2

8GK-23579-01-00

—
Out of stock

27

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

28

COLLAR

90387-10093-00

—
Out of stock

29

BOLT, FLANGE

90105-10211-00

—
Out of stock

30

COLLAR

90387-10074-00

—
Out of stock

31

BOLT, FLANGE

90105-10212-00

—
Out of stock

32

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

33

BOLT, FLANGE

90105-10210-00

—
Out of stock

34

WASHER, PLATE

90201-10051-00

—
Out of stock

35

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

36

FRONT UPPER ARM COMP. (LEFT)

8GK-23540-C0-00

—
Out of stock

37

BUSH, SOLID

90381-15003-00

—
Out of stock

38

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

39

NUT, U FLANGE

95602-14200-00

—
Out of stock

40

FRONT UPPER ARM COMP. (RIGHT)

8GK-23550-C0-00

—
Out of stock

41

BUSH, SOLID

90381-15003-00

—
Out of stock

42

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

43

NUT, U FLANGE

95602-14200-00

—
Out of stock

44

BOLT, FLANGE

90105-10213-00

—
Out of stock

45

COLLAR

90387-10073-00

—
Out of stock

46

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

47

BOLT

91312-10045-00

—
Out of stock

48

WASHER, PLATE

90201-10052-00

—
Out of stock

49

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

50

ABSORBER ASSY 1

8GN-F376A-A0-00

1
Out of stock

51

BUSH

8GN-2376B-09-00

—
Out of stock

52

LABEL,WARNING

8GT-F2259-00-00

1
Out of stock

53

FOX AIR PUMP

8FP-23703-FS-00

1
Out of stock

54

BOLT, FLANGE (8V9)

95812-10045-00

—
Out of stock

55

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

56

BAR, STABILIZER FRONT

8GN-2386E-00-00

—
Out of stock

57

HOLDER, STABILIZER FRONT

8GN-2386C-00-00

—
Out of stock

58

BUSH, STABILIZER FRONT

8GN-2386G-00-00

—
Out of stock

59

BOLT, FLANGE

95812-08020-00

—
Out of stock

60

JOINT, STABILIZER 1

8GN-2385L-00-00

—
Out of stock

61

BOLT(6TA)

97017-10035-00

—
Out of stock

62

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

63

BOLT, FLANGE

95817-08040-00

—
Out of stock

64

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock
