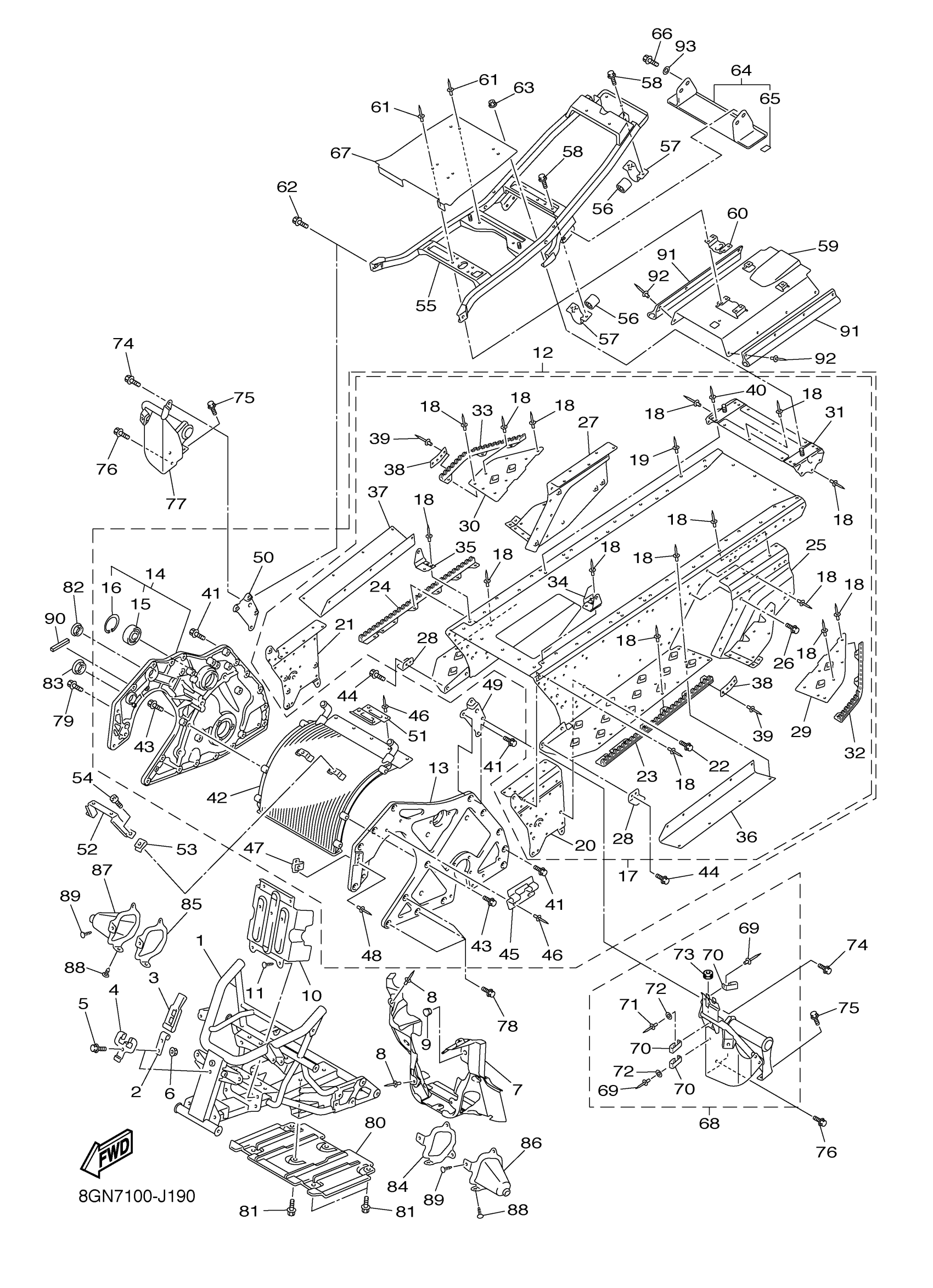

Yamaha PZ50RTHB (PHAZER RTX) 8GNM 2017 FRAME Diagram
#
1
FRONT FRAME COMP.
8GK-21940-01-00
Unavailable
2
BRACKET 3
8GC-2175V-00-00
Unavailable
3
BAND
59V-21646-00-00
$22.99
4
BRACKET 4
8GC-2175W-00-00
Unavailable
5
BOLT, BUTTON HEAD
92017-05040-00
$1.64
6
NUT, FLANGE
95702-05500-00
$0.38
7
PANEL, SUB FRAME 1
8GC-21912-01-00
Unavailable
8
RIVET, BLIND (8R6)
90267-48086-00
$4.14
9
PLUG(2GU)
90338-12192-00
$8.49
10
PROTECTOR, FRAME A
8GC-2195A-10-00
Unavailable
11
RIVET
90269-05003-00
$2.07
12
REAR FRAME COMP.
8GK-21950-40-00
Unavailable
13
REINF., PANELL FRAME 1
8GC-21991-00-00
Unavailable
14
HOUSING, REINF SUB-ASSY(R.H)
8GK-21930-20-00
$737.99
15
BEARING
93306-20532-00
$66.99
16
CIRCLIP(26H)
99009-52500-00
Unavailable
17
. REAR FRAME COMP
8GC-21950-29-00
Unavailable
18
RIVET, BLIND
90267-47195-00
Unavailable
19
RIVET, BLIND
90267-48023-00
Unavailable
20
BRACKET, MAIN TRACK 1
8GK-21943-00-00
Unavailable
21
BRACKET, MAIN TRACK 2
8GK-21953-00-00
Unavailable
22
BOLT, FLANGE
95817-08012-00
Unavailable
23
REINFORCEMENT, FOOTREST 1
8GC-21926-01-00
Unavailable
24
REINFORCEMENT, FOOTREST 2
8GC-21936-01-00
Unavailable
25
BRACKET, RR.TRACK SUSPENTION 1
8GK-21944-00-00
Unavailable
26
BOLT, FLANGE
95822-08014-00
Unavailable
27
BRACKET, RR.TRACK SUSPENTION 2
8GK-21954-00-00
Unavailable
28
PATCH 7
8GC-21967-00-00
Unavailable
29
BRACKET, FOOTREST 1
8GC-27452-00-00
Unavailable
30
BRACKET, FOOTREST 2
8GC-27462-00-00
Unavailable
31
BRACKET, SEAT 1
8GK-21341-00-00
Unavailable
32
REINFORCEMENT, RR. FOOTREST 1
8GC-21927-01-00
Unavailable
33
REINFORCEMENT, RR. FOOTREST 2
8GC-21937-01-00
Unavailable
34
BRACKET
8GC-21238-00-00
Unavailable
35
BRACKET 2
8GC-21239-00-00
Unavailable
36
PATCH 1
8GC-21961-00-00
Unavailable
37
PATCH 2
8GC-21962-00-00
Unavailable
38
PATCH 8
8GC-21988-00-00
Unavailable
39
RIVET, BLIND
90267-48010-00
Unavailable
40
RIVET, BLIND
90267-47197-00
Unavailable
41
BOLT, FLANGE
95022-08020-00
Unavailable
42
HEAT EXCHANGER ASSY
8GC-12440-00-00
Unavailable
43
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
44
BOLT, FLANGE
90105-06109-00
Unavailable
45
HOOK
8GC-21973-00-00
Unavailable
46
RIVET, BLIND
90267-47195-00
Unavailable
47
PLATE, SPRING
2TK-2177L-00-00
Unavailable
48
RIVET, BLIND
90267-32192-00
Unavailable
49
PATCH 3
8GC-21963-00-00
Unavailable
50
PATCH 4
8GC-21964-00-00
Unavailable
51
STAY 2
8GC-2164G-00-00
Unavailable
52
STAY 1
8GC-2164F-00-00
Unavailable
53
NUT, SPRING(4ES)
90183-06069-00
Unavailable
54
BOLT,SOCKET
91317-06012-00
Unavailable
55
SEAT RAIL COMP
8GK-21160-00-00
Unavailable
56
DAMPER, MUFFLER
8GC-14747-00-00
Unavailable
57
BRACKET, DAMPER
8GC-21121-00-00
Unavailable
58
BOLT, FLANGE
95812-06010-00
Unavailable
59
SHIELD, HEAT
8GC-2199H-10-00
Unavailable
60
BRACKET, SILENCER 1
8GC-1467H-00-00
Unavailable
61
RIVET, BLIND
90267-47195-00
Unavailable
62
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
63
NUT, SELF-LOCKING
90185-08169-00
Unavailable
64
SEAT BRACKET ASSY
8GC-24708-01-00
Unavailable
65
PAD 1
8GC-77151-00-00
Unavailable
66
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
67
PANEL, SUB FRAME 6
8GC-21917-00-00
Unavailable
68
FOOTREST COMP. 1
8GJ-21960-00-00
Unavailable
69
RIVET, BLIND
90267-48010-00
Unavailable
70
CLAMP(51Y)
90465-08277-00
Unavailable
71
RIVET, BLIND (22W)
90267-48083-00
Unavailable
72
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
73
GROMMET (1E5)
90480-13163-00
Unavailable
74
BOLT, FLANGE
95814-08016-00
Unavailable
75
BOLT, FLANGE
95022-06012-00
Unavailable
76
BOLT, FLANGE
95812-06014-00
Unavailable
77
FOOTREST COMP. 2
8GJ-21970-00-00
Unavailable
78
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
79
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
80
PROTECTOR
8GC-2193A-00-00
Unavailable
81
BOLT
90109-06285-00
Unavailable
82
GROMMET
90480-27001-00
Unavailable
83
GROMMET
90480-40003-00
Unavailable
84
PLATE, STRG BRACKET 1
8GC-2195E-00-00
Unavailable
85
PLATE, STRG BRACKET 2
8GC-2195F-00-00
Unavailable
86
COVER 1
8GC-2198F-00-00
Unavailable
87
COVER 3
8GC-2198J-00-00
Unavailable
88
RIVET
90269-05003-00
$2.07
89
RIVET
90269-05002-00
Unavailable
90
DAMPER 1
8GL-77319-00-00
Unavailable
91
DAMPER
8GC-21852-00-00
Unavailable
92
RIVET, BLIND
90267-48024-00
Unavailable
93
WASHER, PLATE
90201-08079-00
Unavailable
