Description

Price

1

SHROUD

8GC-77111-00-00

$99.99

2

BAND

59V-21646-00-00

$22.99

3

PANEL 1

8GK-2835U-40-00

Unavailable

4

PROTECTOR, SIDE 1

8GK-77561-00-00

$71.99

5

PANEL 2

8GK-2835V-40-00

Unavailable

6

PROTECTOR, SIDE 2

8GK-77562-00-00

$71.99

7

BOLT

90109-06220-00

$10.49

8

NUT, SPRING

90183-06100-00

$10.49

9

SCREW, BIND (8K2)

98902-05016-00

$1.71

10

NUT(1KT)

90179-05523-00

$8.49

11

HOOD 3

8GC-2197H-00-00

Unavailable

12

HEAD

8HG-28386-00-00

$31.99

13

WASHER, SPECIAL 1

8HG-21757-00-00

$1.07

14

WASHER, SPECIAL 1

8HR-21757-00-00

$2.82

15

PLATE 1

8FR-77185-00-00

$8.49

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

NUT, NYLON

95707-05300-00

Unavailable

18

HOOD 4

8GC-2198H-01-00

Unavailable

19

LOUVER 4

8GC-77134-00-00

Unavailable

20

CLIP

90468-06001-00

Unavailable

21

HEAD

5PW-28386-00-00

Unavailable

22

WASHER, SPECIAL 1

8HW-21757-00-00

Unavailable

23

PLATE 1

8FR-77185-00-00

$8.49

24

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

25

NUT, NYLON

95707-05300-00

Unavailable

26

FRAME UNDER 1

8GC-2196A-00-00

Unavailable

27

PLATE, SPRING

4XV-2177L-01-00

Unavailable

28

FRAME, UNDER 2

8GC-2196E-00-00

Unavailable

29

PLATE, SPRING

5PW-2177L-01-00

Unavailable

30

BOLT

90109-06220-00

$10.49

31

SCREW

90149-06105-00

Unavailable

32

NUT, SPRING

90183-06100-00

$10.49

33

PLATE, SPRING

4XV-2177L-01-00

Unavailable

34

PLATE, SPRING

5PW-2177L-01-00

Unavailable

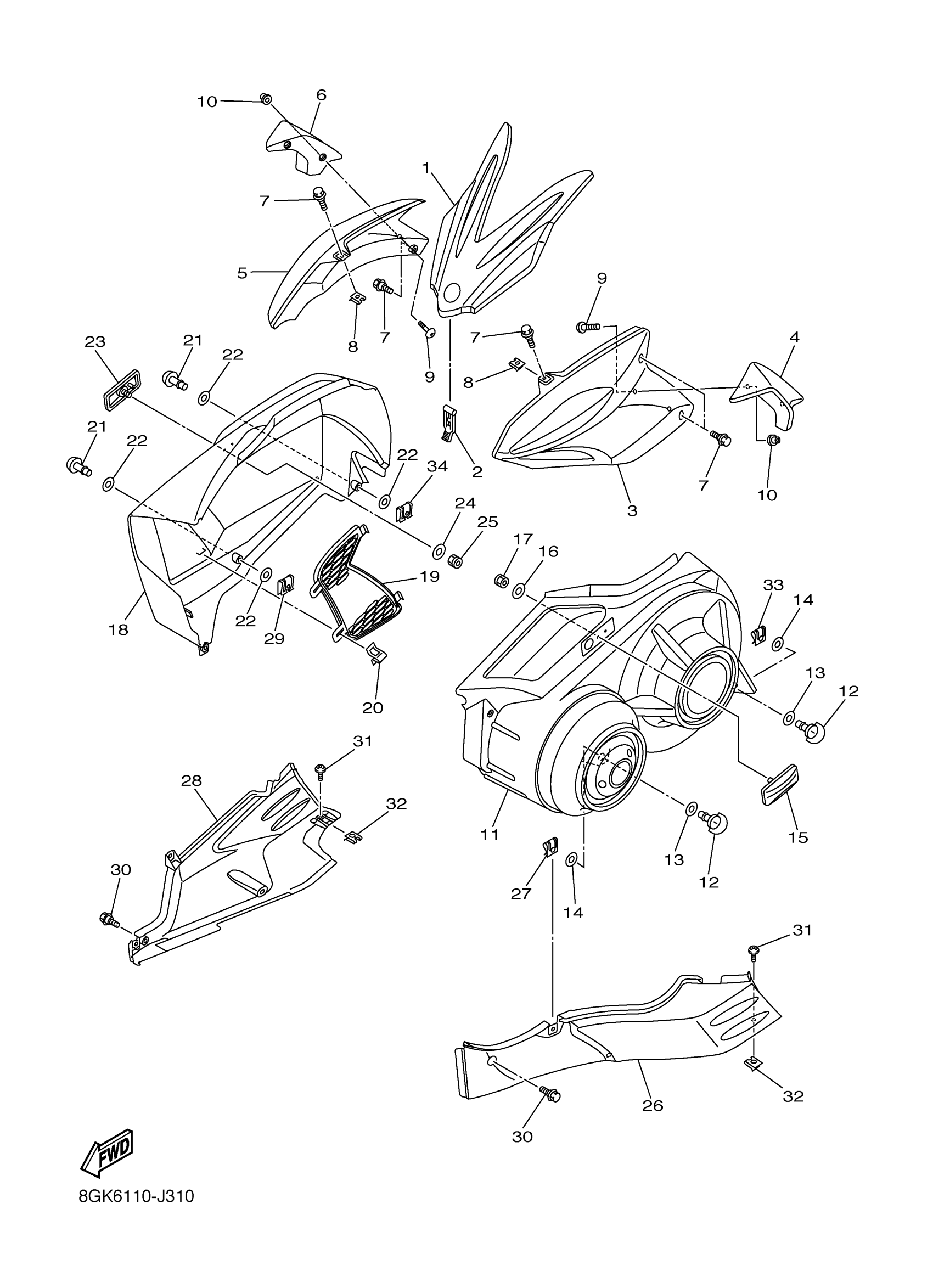

Yamaha PZ50RTFB (PHAZER RTX) 8GNH 2015 SHROUD Diagram

SHROUD

BAND

PANEL 1

PROTECTOR, SIDE 1

PANEL 2

PROTECTOR, SIDE 2

BOLT

NUT, SPRING

SCREW, BIND (8K2)

NUT(1KT)

HOOD 3

HEAD

WASHER, SPECIAL 1

WASHER, SPECIAL 1

PLATE 1

WASHER, PLATE (4H7)

NUT, NYLON

HOOD 4

LOUVER 4

CLIP

HEAD

WASHER, SPECIAL 1

PLATE 1

WASHER, PLATE (4H7)

NUT, NYLON

FRAME UNDER 1

PLATE, SPRING

FRAME, UNDER 2

PLATE, SPRING

BOLT

SCREW

NUT, SPRING

PLATE, SPRING

PLATE, SPRING
