- PZ50RTEW (PHAZER RTX) 8GNF 2014
TRACK SUSPENSION 2

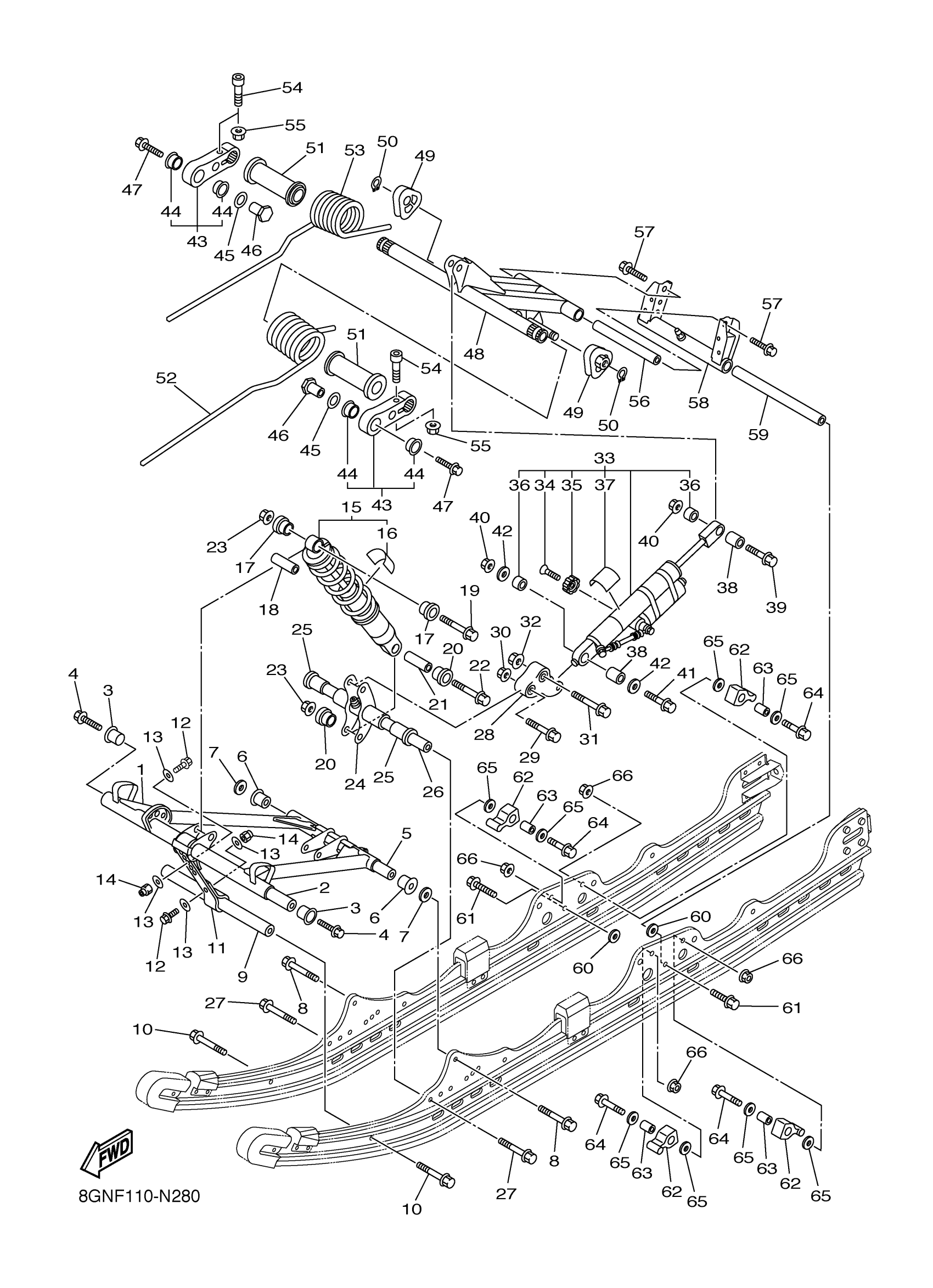

Yamaha PZ50RTEW (PHAZER RTX) 8GNF 2014 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8GN-47331-03-00
$391.99
2
SHAFT 1
8GC-47465-10-00
$65.99
3
BUSH
90386-22001-00
$7.49
4
BOLT
90109-10032-00
$8.49
5
SHAFT 4
8ES-47486-00-00
$40.99
6
COLLAR
90387-10022-00
$18.99
7
WASHER, PLATE
90201-10064-00
$7.49
8
BOLT, FLANGE
90105-10209-00
$8.49
9
SHAFT 3
8ES-47485-00-00
$55.99
10
BOLT, FLANGE
90105-10209-00
$8.49
11
STOPPER 1
8GC-47495-00-00
$68.99
12
BOLT, HEXAGON
97017-06025-00
$4.24
13
WASHER, PLATE
90201-06036-00
$8.49
14
NUT, NYLON
95707-06300-00
$3.50
15
SHOCK ABSORBER 2
8GN-47481-20-00
Unavailable
16
LABEL, WARNING
4AA-22259-60-00
Unavailable
17
COLLAR
90387-15009-00
Unavailable
18
COLLAR
90387-10054-00
Unavailable
19
BOLT, FLANGE
95812-10060-00
Unavailable
20
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
21
COLLAR (8U7)
90387-105G5-00
Unavailable
22
BOLT(88R)
90101-10738-00
Unavailable
23
NUT, S/L FLANGE
95602-10200-00
Unavailable
24
BRACKET, ARM PIVOT
8GT-47349-01-00
Unavailable
25
BUSH
90386-20001-00
Unavailable
26
SHAFT 5
8GN-47487-00-00
Unavailable
27
BOLT, FLANGE
90105-10209-00
$8.49
28
BRACKET
8GN-4741B-00-00
Unavailable
29
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
BOLT, FLANGE
95812-12060-00
Unavailable
32
NUT, SELF-LOCKING
95602-12200-00
Unavailable
33
SHOCK ABSORBER
8GN-47480-50-00
Unavailable
34
SCREW, OVAL HEAD
98680-03008-00
Unavailable
35
. KNOB (COMP)
5EA-22464-00-00
Unavailable
36
BUSH, BIMETAL FORMED(39K)
90384-18190-00
Unavailable
37
LABEL, WARNING
4AA-22259-60-00
Unavailable
38
COLLAR
90387-10023-00
Unavailable
39
BOLT, FLANGE
95812-10040-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
Unavailable
41
BOLT, FLANGE
90105-10295-00
Unavailable
42
WASHER, PLATE
90201-10052-00
Unavailable
43
ARM, REAR PIVOT 1
8GC-47361-00-00
Unavailable
44
BUSH, SOLID
90381-20002-00
Unavailable
45
WASHER, PLATE(3HN)
90201-225M9-00
Unavailable
46
NUT
8GC-47368-00-00
Unavailable
47
BOLT, FLANGE
95812-12030-00
Unavailable
48
ARM, PIVOT 2
8GC-47332-02-00
Unavailable
49
HOOK 2
8ES-47447-00-00
Unavailable
50
CIRCLIP(13H)
99009-14400-00
Unavailable
51
PROTECTOR
8GC-47445-00-00
Unavailable
52
SPRING, REAR 1
8GC-47473-00-00
Unavailable
52
SPRING, REAR 1
8GK-47473-00-00
Unavailable
52
SPRING, REAR 1
8GP-47473-00-00
Unavailable
53
SPRING, REAR 2
8GC-47474-00-00
Unavailable
53
SPRING, REAR 2
8GK-47474-00-00
Unavailable
53
SPRING, REAR 2
8GP-47474-00-00
Unavailable
54
BOLT, SOCKET
91317-08045-00
Unavailable
55
NUT, SELF-LOCKING
95602-08200-00
Unavailable
56
SHAFT 6
8GC-47488-00-00
Unavailable
57
BOLT, FLANGE
95817-10030-00
Unavailable
58
BRACKET 3
8GC-47417-A0-00
Unavailable
59
SHAFT 3
8FU-47485-00-00
Unavailable
60
WASHER PLATE (789)
90201-10136-00
Unavailable
61
BOLT, FLANGE
95817-10030-00
Unavailable
62
STOPPER 2
8JH-47496-00-00
Unavailable
63
COLLAR (8U7)
90387-105G5-00
Unavailable
64
BOLT, HEXAGON
97017-10050-00
Unavailable
65
WASHER, PLATE
90201-10051-00
Unavailable
66
NUT, S/L FLANGE
95602-10200-00
Unavailable
