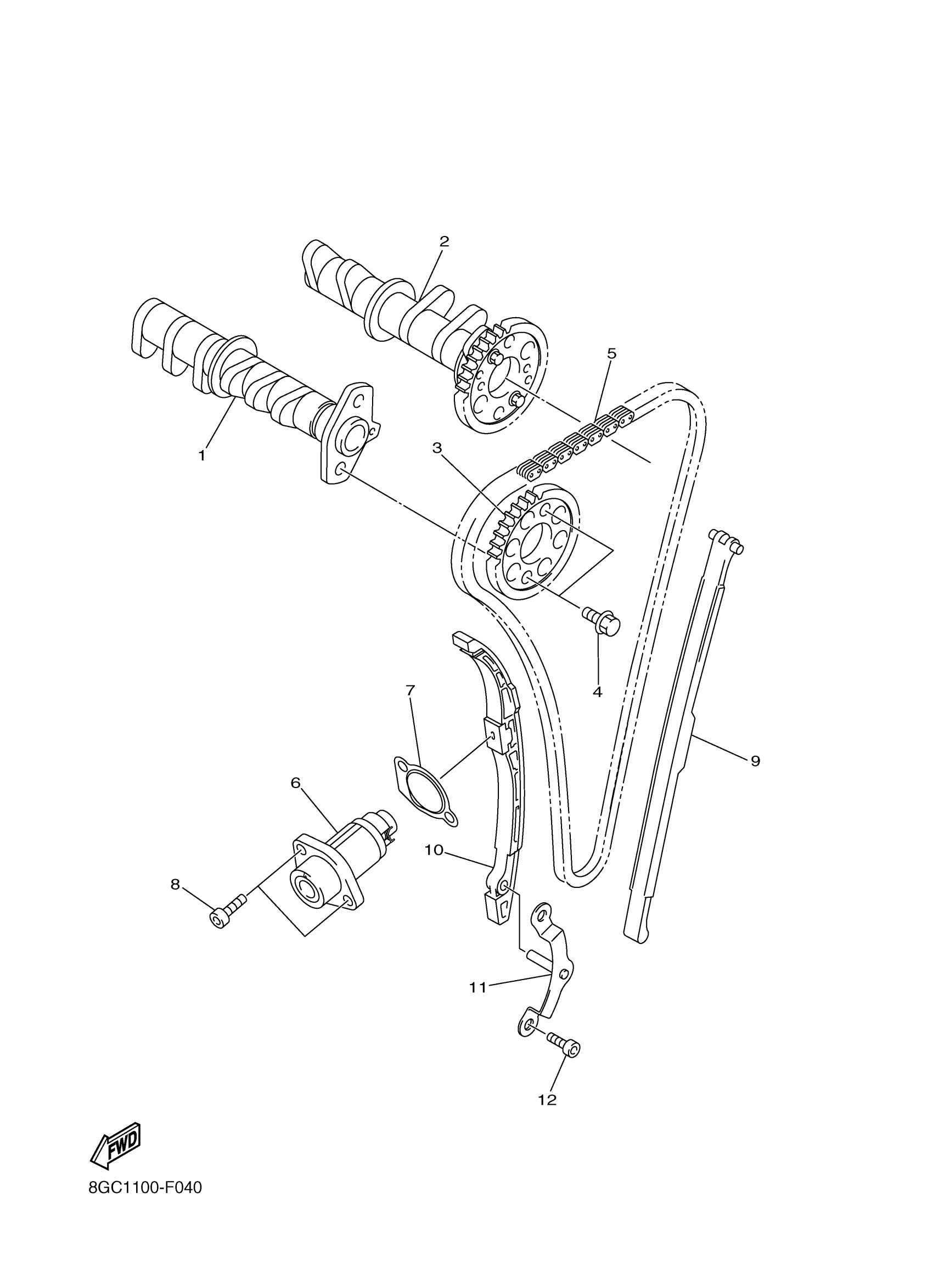

Yamaha PZ50RTEW (PHAZER RTX) 8GNF 2014 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

8GC-12170-00-00

Unavailable

CAMSHAFT ASSY 2

8GC-12180-02-00

Unavailable

SPROCKET, CAM CHAIN

8GC-12176-00-00

$75.99

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-64118-00

$69.99

TENSIONER ASSY, CAM CHAIN

8GC-12210-11-00

Unavailable

GASKET, TENSIONER CASE

2C0-12213-00-00

$7.99

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$8.49

DAMPER, CHAIN 1

5EB-12251-01-00

$55.99

DAMPER, CHAIN 2

8GC-12252-00-00

Unavailable

PLATE, GUIDE STOPPER 1

8GC-12233-00-00

$15.99

BOLT (33M)

91312-06014-00

$5.60
