Description

Price

1

WATER PUMP ASSY

8GC-12420-00-00

$242.99

2

COVER, HOUSING

8GC-12422-00-00

Unavailable

3

HOUSING, WATER PUMP

8GC-12421-00-00

Unavailable

4

GASKET, HOUSING COVER 1

8GC-12427-00-00

Unavailable

5

SEAL, MECHANICAL

8ES-12438-00-00

$45.99

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

7

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$11.49

8

IMPELLER SHAFT ASSY

8GC-12450-00-00

Unavailable

9

SCREW, PAN HEAD

98580-06016-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

O-RING(1WT)

93210-30734-00

$14.99

12

BOLT(J17)

91312-06035-00

$3.28

13

HOSE 8

8GC-12552-00-00

Unavailable

14

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

15

JOINT 1

8GC-12469-00-00

Unavailable

16

O-RING (24W)

93210-56589-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

18

HOSE 5

8GC-12588-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

20

HOSE 6

8GC-12589-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

22

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

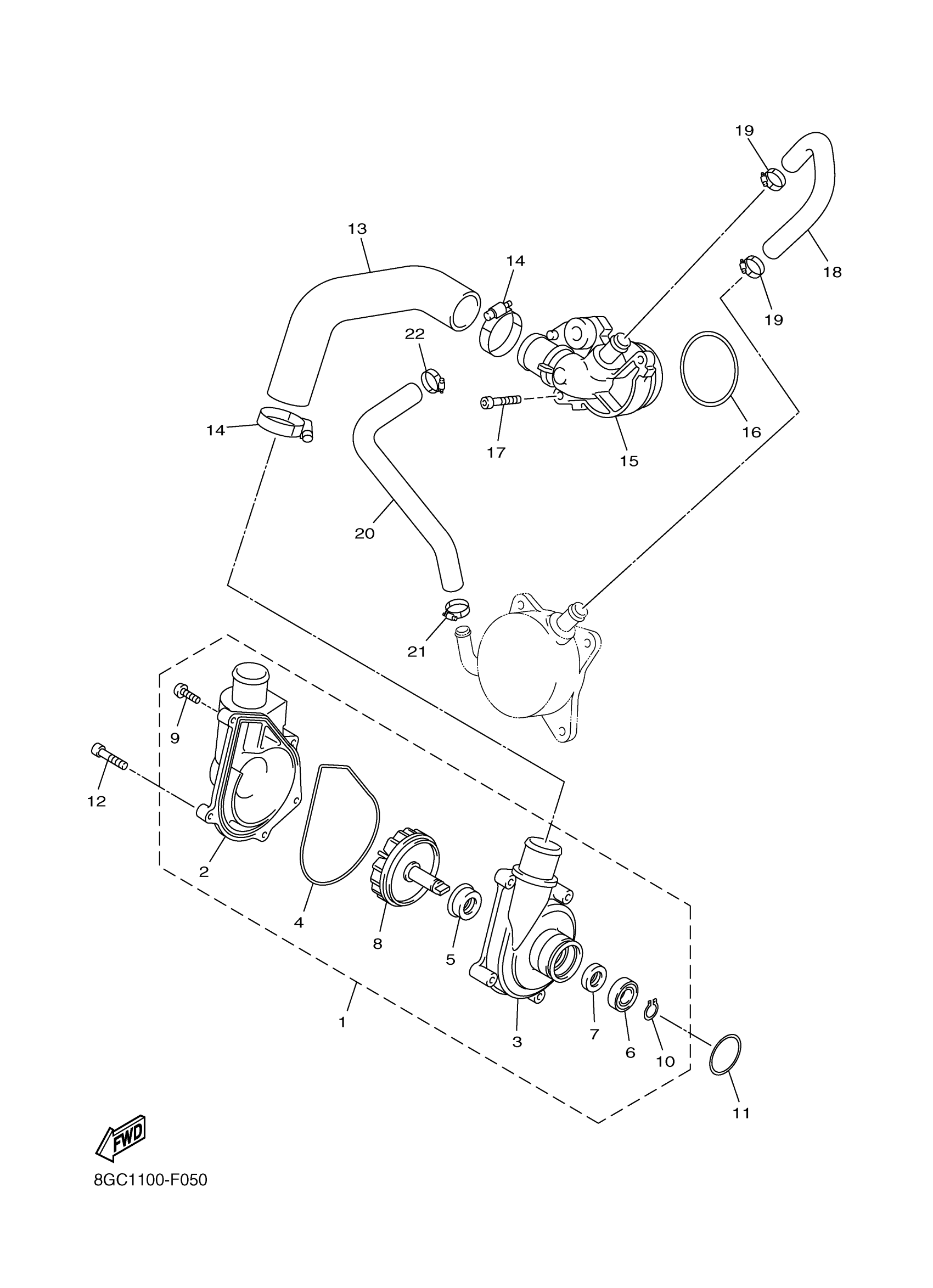

Yamaha PZ50RTDW (PHAZER RTX) 8GND 2013 WATER PUMP Diagram

WATER PUMP ASSY

COVER, HOUSING

HOUSING, WATER PUMP

GASKET, HOUSING COVER 1

SEAL, MECHANICAL

BRG,R-B 6000 26MM 19G KY

SEAL,OIL(SD 10-21-5 HS,3Y1)

IMPELLER SHAFT ASSY

SCREW, PAN HEAD

CIRCLIP(10W)

O-RING(1WT)

BOLT(J17)

HOSE 8

HOSE CLAMP ASSY(3GM)

JOINT 1

O-RING (24W)

BOLT, HEXAGON SOCKET HEAD

HOSE 5

HOSE CLAMP ASSY

HOSE 6

HOSE CLAMP ASSY

HOSE CLAMP ASSY
