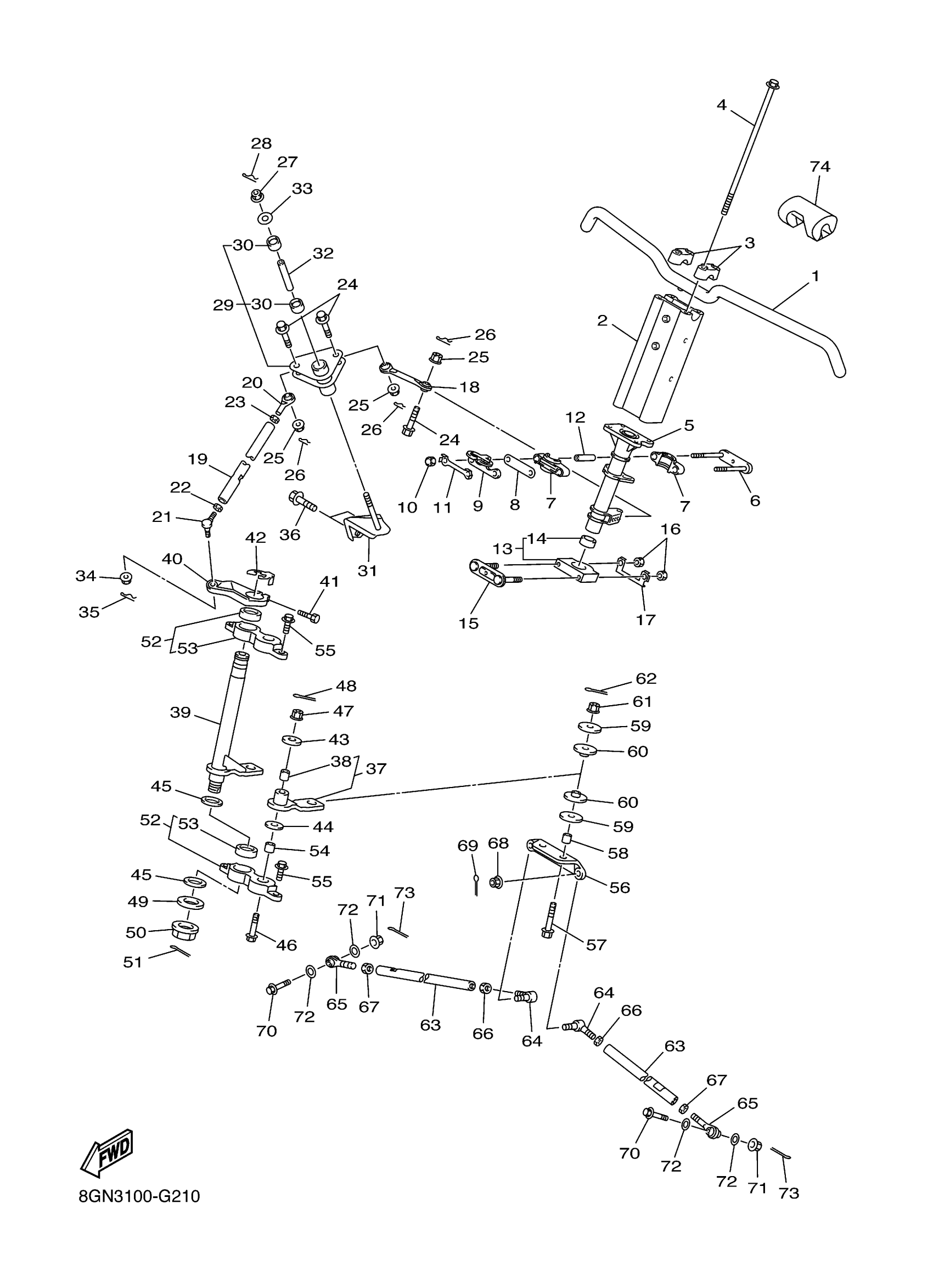

Yamaha PZ50RTDW (PHAZER RTX) 8GND 2013 STEERING Diagram
#
1
HANDLEBAR
8GN-26111-10-00
$147.99
2
JOINT
8GC-2381B-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
BOLT
8GC-23436-00-00
$4.46
5
COLUMN, STEERING 2
8GC-23813-00-00
Unavailable
6
HOLDER 2
8GC-23867-00-00
Unavailable
7
PLANE BEARING, STEERING
8FA-23812-00-00
$6.99
8
HOLDER 2
8FA-23867-00-00
Unavailable
9
HOLDER, BEARING
8GC-23872-00-00
Unavailable
10
NUT, CAP
95307-08800-00
$7.49
11
WASHER, LOCK 1
1UY-23894-01-00
$7.99
12
COLLAR
90387-09006-00
$7.49
13
PLANE BEARING, STEERING
8GC-23812-00-00
$61.99
14
BEARING
93317-425B7-00
$41.99
15
HOLDER
8GJ-23857-00-00
$21.99
16
NUT(6L2)
95333-08600-00
Unavailable
17
WASHER, LOCK 1
8GJ-23894-00-00
Unavailable
18
ROD, STEERING
8GC-23828-00-00
Unavailable
19
ROD, STEERING RELAY
8GC-23821-00-00
Unavailable
20
JOINT, UNIVERSAL 1
8GC-23841-00-00
Unavailable
21
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
22
NUT (682)
95380-10700-00
Unavailable
23
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
24
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
25
NUT,FLANGE(J10)
95702-08500-00
Unavailable
26
CLIP
90468-16001-00
Unavailable
27
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
28
CLIP (7U6)
90468-18121-00
Unavailable
29
ARM, CONTROL 1
8GC-2384E-00-00
Unavailable
30
BEARING, CYLINDRICAL(3VR)
93317-41767-00
Unavailable
31
BRACKET 1
8GK-23881-00-00
Unavailable
32
NUT
8GC-23846-00-00
Unavailable
33
WASHER, PLATE
90201-121U3-00
Unavailable
34
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
35
PIN, COTTER (648)
91490-20015-00
Unavailable
36
BOLT, FLANGE
95812-08030-00
Unavailable
37
ARM PIVOT ASSY
8GC-2389K-00-00
Unavailable
38
BUSH
8GC-23526-00-00
Unavailable
39
PIVOT ARM ASSY 2
8GC-2389M-01-00
Unavailable
40
ARM, INSIDE
8GC-2381A-00-00
Unavailable
41
BOLT, SOCKET
91317-08025-00
Unavailable
42
CIRCLIP
8GC-23183-00-00
Unavailable
43
WASHER, PLATE(N04)
90201-124G7-00
Unavailable
44
WASHER PLATE 371115580000
90201-25291-00
Unavailable
45
WASHER, PLATE (5F7)
90201-256E4-00
Unavailable
46
BOLT 1
8GC-23346-00-00
Unavailable
47
95702-12500
95702-12500-00
Unavailable
48
PIN, COTTER
91490-25020-00
Unavailable
49
WASHER, PLATE
90201-22018-00
Unavailable
50
NUT (26H)
90179-22412-00
Unavailable
51
PIN, COTTER
91402-20035-00
Unavailable
52
BRACKET, PIVOT
8GC-2389H-00-00
Unavailable
53
BEARING
93317-425B7-00
$41.99
54
COLLAR
8GC-23113-00-00
Unavailable
55
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
56
ARM, IDLER
8GC-23826-00-00
Unavailable
57
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
58
COLLAR
90387-10070-00
Unavailable
59
WASHER, PLATE(JN9)
90201-100S2-00
Unavailable
60
BUSH 1
8GC-23362-10-00
Unavailable
61
NUT, SELF-LOCKING
90185-10011-00
Unavailable
62
PIN, COTTER (648)
91490-20015-00
Unavailable
63
ROD, TIE
8GC-23831-00-00
Unavailable
64
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
65
JOINT, UNIVERSAL 3
8GC-23847-00-00
Unavailable
66
NUT (682)
95380-10700-00
Unavailable
67
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
68
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
69
PIN, COTTER (648)
91490-20015-00
Unavailable
70
BOLT
8GC-23493-00-00
Unavailable
71
NUT,FLANGE(J10)
95702-08500-00
Unavailable
72
WASHER, PLATE
90201-06018-00
Unavailable
73
PIN, COTTER (648)
91490-20015-00
Unavailable
74
PAD, STEERING
8FR-23815-00-00
Unavailable
