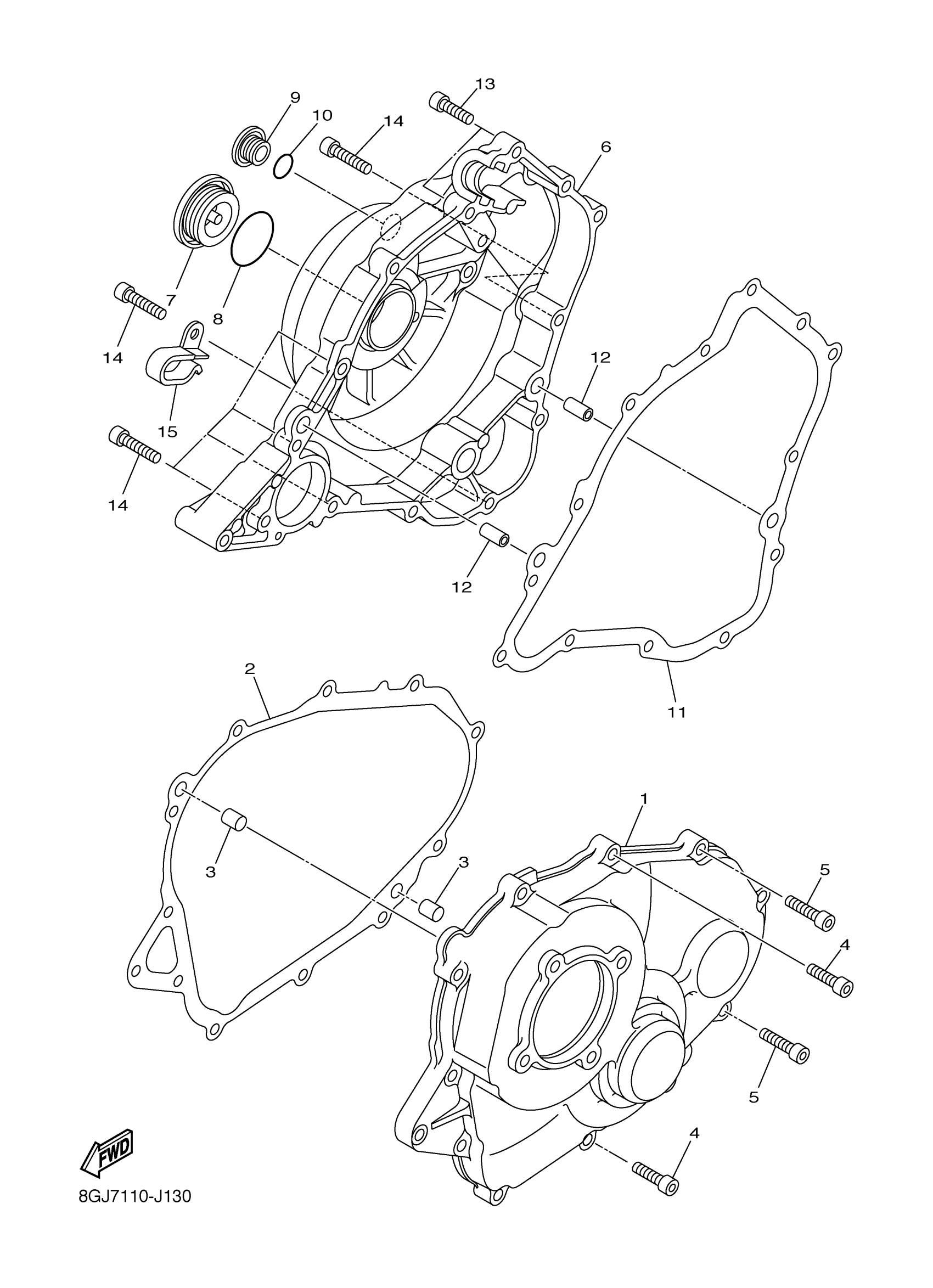

Yamaha PZ50RTDW (PHAZER RTX) 8GND 2013 CRANKCASE COVER 1 Diagram

#

Description

Price

1

COVER, CRANKCASE 1

8GC-15411-00-00

$142.41

2

GASKET, CRANKCASE COVER 1

8GC-15451-00-00

Unavailable

3

PIN, STRAIGHT

90250-08017-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$1.91

5

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57

6

COVER, CRANKCASE 2

8GC-15421-01-00

Unavailable

7

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$24.85

8

O-RING (341)

93210-32172-00

$5.39

9

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

10

O-RING (2H9)

93210-14369-00

$5.42

11

GASKET, CRANKCASE COVER 2

8GC-15461-00-00

$14.44

12

PIN, DOWEL

99530-08012-00

$4.89

13

BOLT,SOCKET

91317-06025-00

$1.91

14

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57

15

CLAMP

90465-10048-00

Unavailable
