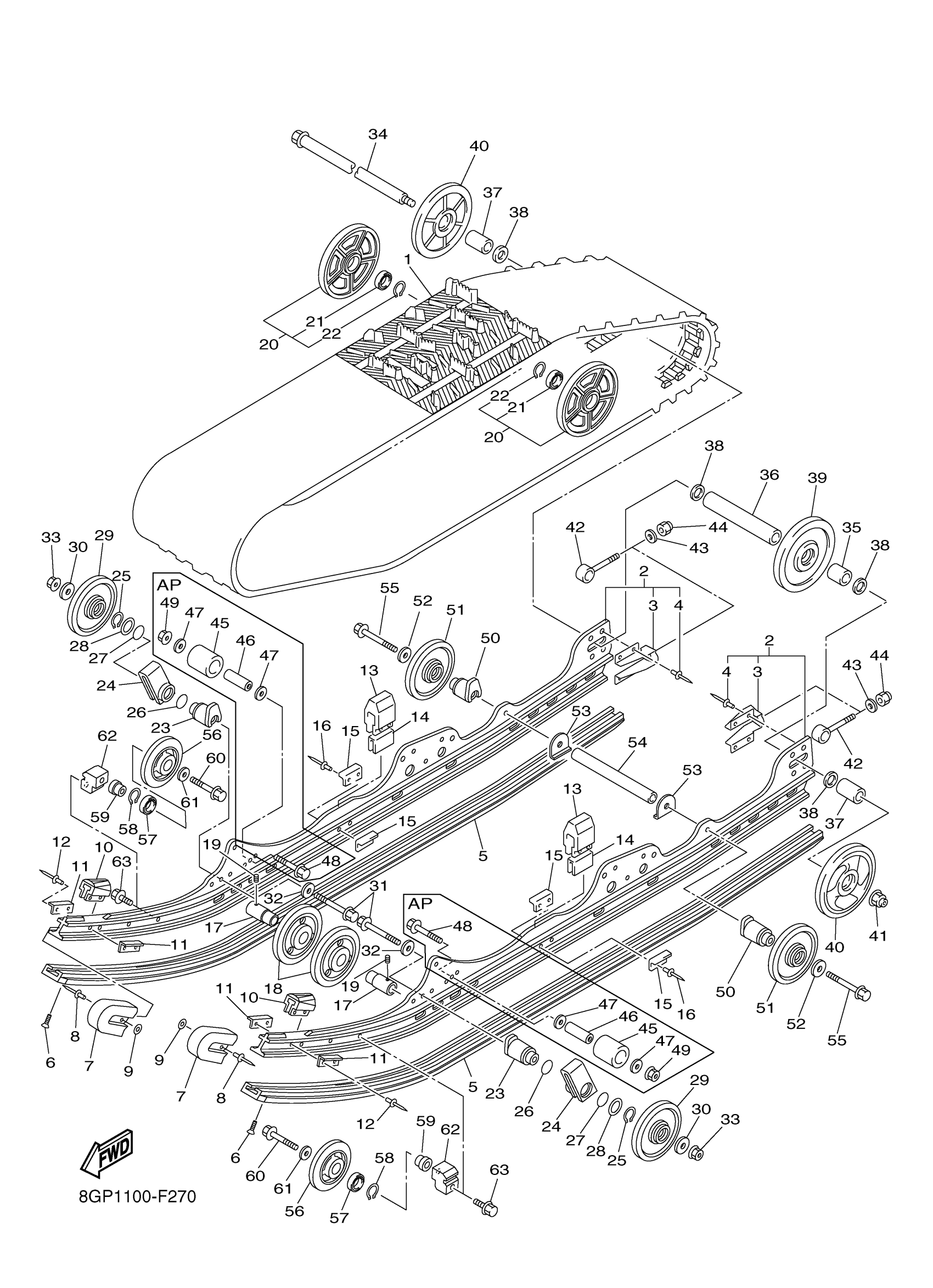

Yamaha PZ50MW (PHAZER MOUNTAIN LITE) 8GP1 2007 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8GP-47110-01-00

Unavailable

2

FRAME, SLIDING

8GP-W4741-01-00

$388.99

3

BRACKET

8DM-4741B-00-00

$45.99

4

RIVET

8V0-47468-00-00

$10.49

5

FX NYTRO 162" HP WIDE HYFAX

SMA-8HR92-00-BK

Unavailable

6

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

7

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

8

RIVET BLIND

90267-48194-00

$3.28

9

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

10

DAMPER 1

8ES-47456-00-00

$6.99

11

PLATE, DAMPER

8K2-47458-01-00

$4.77

12

RIVET, BLIND

90267-48199-00

$3.76

13

DAMPER 2

8AC-47457-00-00

$18.49

14

SPACER

8AC-47341-00-00

$40.99

15

PLATE, DAMPER

8AX-47458-00-00

$10.99

16

RIVET, BLIND

90267-48199-00

$3.76

17

COLLAR

8ES-47319-01-00

Unavailable

18

SUSPENSION WHEEL ASSY

8ES-47310-10-00

Unavailable

19

BOLT, SET (8K2)

90113-06039-00

Unavailable

20

GUIDE WHEEL COMP.

8GC-47530-10-00

Unavailable

21

BEARING

93306-00616-00

Unavailable

22

CIRCLIP

99009-55500-00

Unavailable

23

BRACKET 7

8ES-47419-10-00

Unavailable

24

HOOK 1

8ES-47446-00-00

Unavailable

25

CIRCLIP(6U2)

93410-35M10-00

Unavailable

26

O-RING (16G)

93210-35537-00

Unavailable

27

O-RING (21A)

93210-34633-00

Unavailable

28

WASHER, PLATE

90201-35013-00

Unavailable

29

SUSPENSION WHEEL ASSY

8ES-47310-00-00

Unavailable

30

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

31

BOLT, FLANGE

95812-10080-00

Unavailable

32

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

33

NUT, S/L FLANGE

95602-10200-00

Unavailable

34

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

35

COLLAR

90387-20015-00

Unavailable

36

COLLAR

90387-20016-00

Unavailable

37

COLLAR

90387-20019-00

Unavailable

38

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

39

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

40

WEIGHT

8EK-47550-11-00

Unavailable

41

NUT, U FLANGE

95602-14200-00

Unavailable

42

COLLAR 3

8DM-47479-00-00

Unavailable

43

WASHER, PLATE

92990-10600-00

Unavailable

44

NUT, NYLON

95707-10300-00

Unavailable

45

ROLLER

8ES-47429-00-00

Unavailable

46

COLLAR

90387-10025-00

Unavailable

47

WASHER, PLATE

90201-10052-00

Unavailable

48

BOLT, FLANGE

95812-10060-00

Unavailable

49

NUT, S/L FLANGE

95602-10200-00

Unavailable

50

BRACKET 7

8ES-47419-00-00

Unavailable

51

SUSPENSION WHEEL ASSY

8ES-47310-00-00

Unavailable

52

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

53

WASHER, CLAW

90214-10003-00

Unavailable

54

SHAFT 3

8FU-47485-00-00

Unavailable

55

95812-10090

95812-10090-00

Unavailable

56

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

57

BEARING(8AB)

93306-00444-00

Unavailable

58

CIRCLIP(5U8)

99009-42500-00

Unavailable

59

COLLAR

8GP-47319-00-00

Unavailable

60

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

61

WASHER, PLATE

90201-10052-00

Unavailable

62

BRACKET 7

8GP-47419-00-00

Unavailable

63

BOLT, FLANGE

95817-10030-00

Unavailable
