Description

Price

1

SHROUD

8GC-77111-30-00

$99.99

2

BAND

59V-21646-00-00

$22.99

3

PANEL 1

8GC-2835U-30-00

$63.99

4

PANEL 2

8GC-2835V-30-00

$65.99

5

BOLT

90109-06220-00

$10.49

6

NUT, SPRING

90183-06100-00

$10.49

7

HOOD 3

8GC-2197H-20-00

Unavailable

8

HEAD

3FV-28386-00-00

$40.99

9

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

10

WASHER, SPECIAL 1

5TJ-21757-00-00

$7.99

11

HOOD 4

8GC-2198H-21-00

Unavailable

12

LOUVER 4

8GC-77134-00-00

Unavailable

13

CLIP

90468-06001-00

$4.67

14

HEAD

5PW-28386-00-00

$17.49

15

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

16

FRAME UNDER 1

8GC-2196A-20-00

Unavailable

17

PLATE, SPRING

4XV-2177L-01-00

Unavailable

18

FRAME, UNDER 2

8GC-2196E-20-00

Unavailable

19

PLATE, SPRING

5PW-2177L-01-00

Unavailable

20

BOLT

90109-06220-00

$10.49

21

SCREW

90149-06105-00

Unavailable

22

NUT, SPRING

90183-06100-00

$10.49

23

PLATE, SPRING

4XV-2177L-01-00

Unavailable

24

PLATE, SPRING

5PW-2177L-01-00

Unavailable

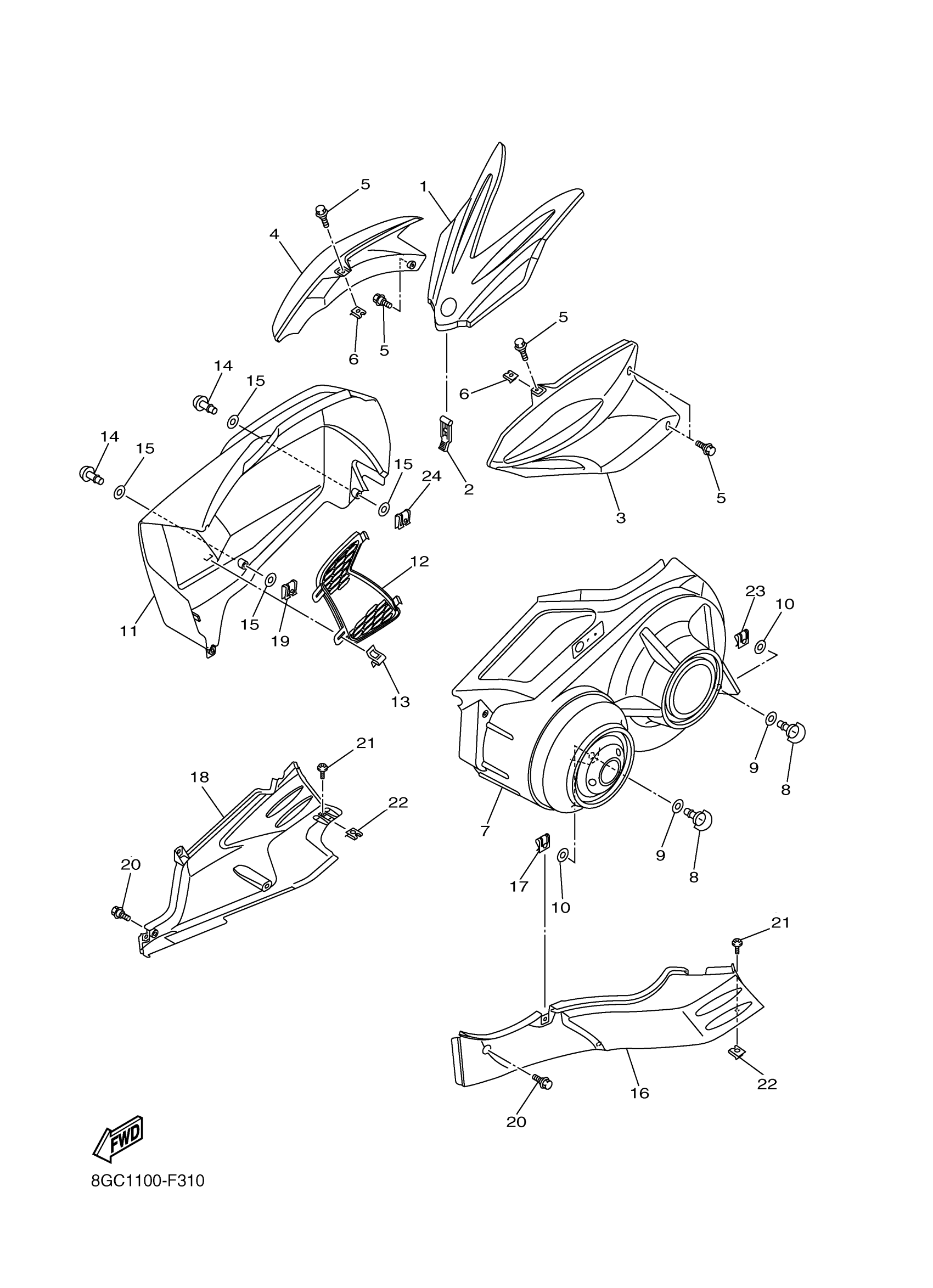

Yamaha PZ50MW (PHAZER MOUNTAIN LITE) 8GP1 2007 SHROUD Diagram

SHROUD

BAND

PANEL 1

PANEL 2

BOLT

NUT, SPRING

HOOD 3

HEAD

WASHER, SPECIAL 1

WASHER, SPECIAL 1

HOOD 4

LOUVER 4

CLIP

HEAD

WASHER, SPECIAL 1

FRAME UNDER 1

PLATE, SPRING

FRAME, UNDER 2

PLATE, SPRING

BOLT

SCREW

NUT, SPRING

PLATE, SPRING

PLATE, SPRING
