Description

Price

1

CYLINDER HEAD ASSY

99999-03777-00

$1,197.99

2

GUIDE, INTAKE VALVE

5NL-11133-10-00

$44.99

3

PLUG, STRAIGHT SCREW

90340-20004-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

BOLT, WASHER BASED

90105-06027-00

$7.49

7

BOLT, FLANGE

95022-06012-00

$3.29

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, WITH WASHER

90119-10004-00

$12.49

10

BOLT

91312-06060-00

$10.49

11

CR9EKB NGK SPLUG 10PK

CR9-EKB00-00-00

Unavailable

12

GASKET, CYLINDER HEAD 1

8GC-11181-00-00

$49.99

13

COVER, CYLINDER HEAD 1

8GC-11191-00-00

Unavailable

14

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

15

GASKET, HEAD COVER 1

8GC-11193-00-00

Unavailable

16

PLUG, OIL

3Y1-15363-10-00

Unavailable

17

O-RING (646)

93210-19123-00

Unavailable

18

PIPE, BREATHER 1

8GC-11166-00-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

BOLT(4BP)

90109-066F0-00

Unavailable

21

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

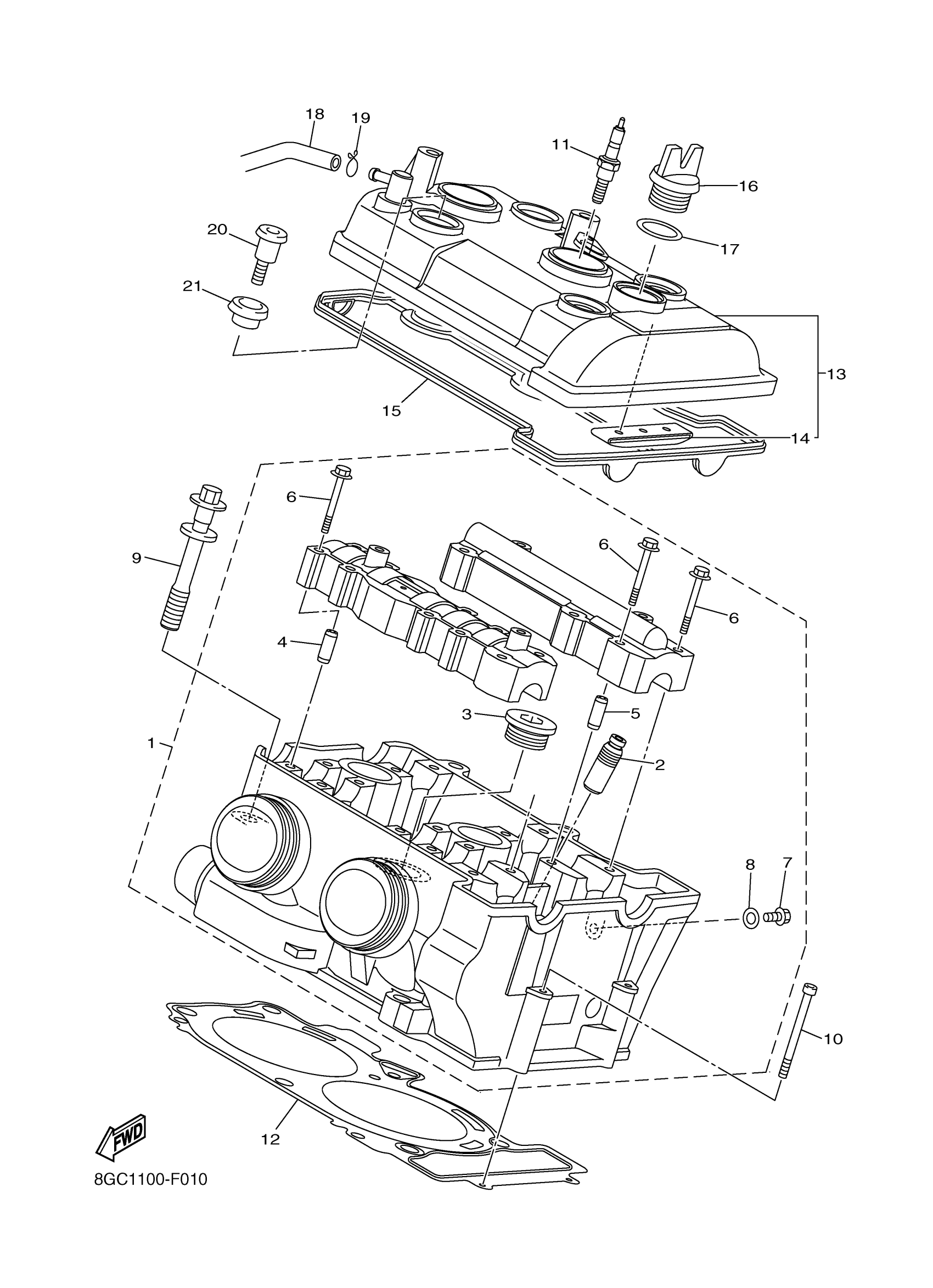

Yamaha PZ50MW (PHAZER MOUNTAIN LITE) 8GP1 2007 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

PIN, DOWEL(3XW)

BOLT, WASHER BASED

BOLT, FLANGE

GASKET 256113960000

BOLT, WITH WASHER

BOLT

CR9EKB NGK SPLUG 10PK

GASKET, CYLINDER HEAD 1

COVER, CYLINDER HEAD 1

GUIDE, STOPPER 2

GASKET, HEAD COVER 1

PLUG, OIL

O-RING (646)

PIPE, BREATHER 1

CLIP

BOLT(4BP)

RUBBER, MOUNT 1
