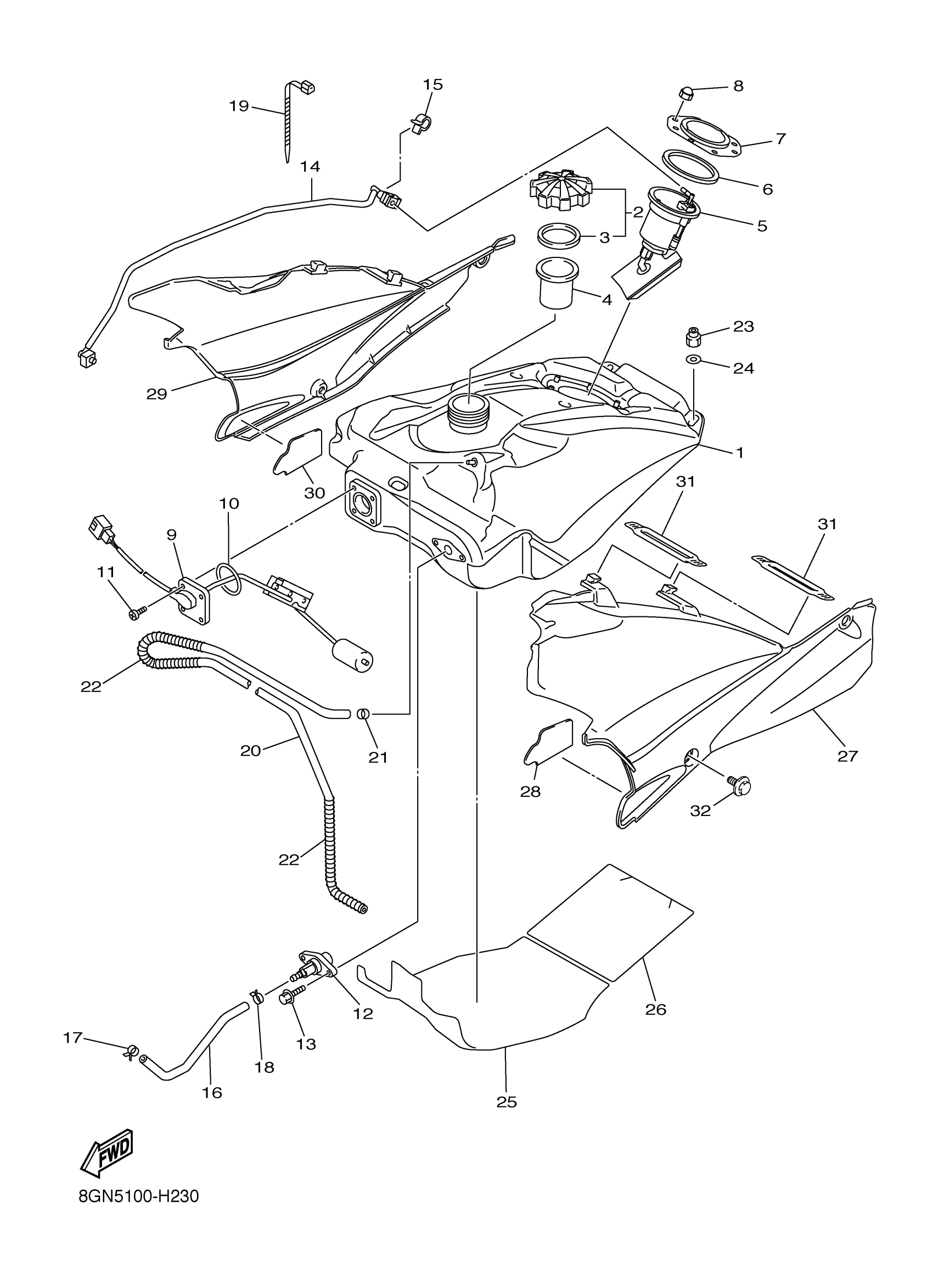

Yamaha PZ50MTZO (PHAZER MTX) 8GP70 2010 FUEL TANK Diagram
#
1
TANK, FUEL
8GC-24111-10-00
$787.99
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FN-24114-00-00
Unavailable
5
FUEL PUMP COMP.
8GC-13907-04-00
$726.99
6
O-RING
8FP-24486-00-00
$18.99
7
BRACKET, FUEL PUMP
8FP-24491-00-00
Unavailable
8
NUT (J17)
95380-06800-00
$8.49
9
SENDER UNIT ASSY, FUEL METER
8GK-85752-00-00
Unavailable
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BIND
98902-05008-00
$1.70
12
VALVE, CHECK 1
8FP-24362-01-00
$67.99
13
BOLT, FLANGE
95817-06012-00
$1.43
14
PIPE, FUEL 1
8GC-24311-10-00
Unavailable
15
CLAMP
90464-14004-00
$7.49
16
PIPE 2
8GC-24312-10-00
Unavailable
17
CLIP(3YX)
90467-13133-00
Unavailable
18
CLIP(3YX)
90467-13133-00
Unavailable
19
CLAMP
90464-13077-00
Unavailable
20
PIPE 3
8GC-24313-00-00
Unavailable
21
CLIP (2A6)
90468-02078-00
Unavailable
22
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
23
NUT, NYLON
95717-08300-00
Unavailable
24
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
25
INSULATOR, FUEL TANK 1
8GC-2416F-00-00
Unavailable
26
INSULATOR, FUEL TANK 2
8GC-2416G-01-00
Unavailable
27
COVER, SIDE 1
8GC-24129-00-00
Unavailable
28
INSULATOR 1
8GC-8253E-00-00
Unavailable
29
COVER, SIDE 2
8GC-24139-00-00
Unavailable
30
INSULATOR 2
8GC-8253F-00-00
Unavailable
31
BAND, TANK FITTING 1
8GC-24173-00-00
Unavailable
32
BOLT
90109-06220-00
Unavailable
