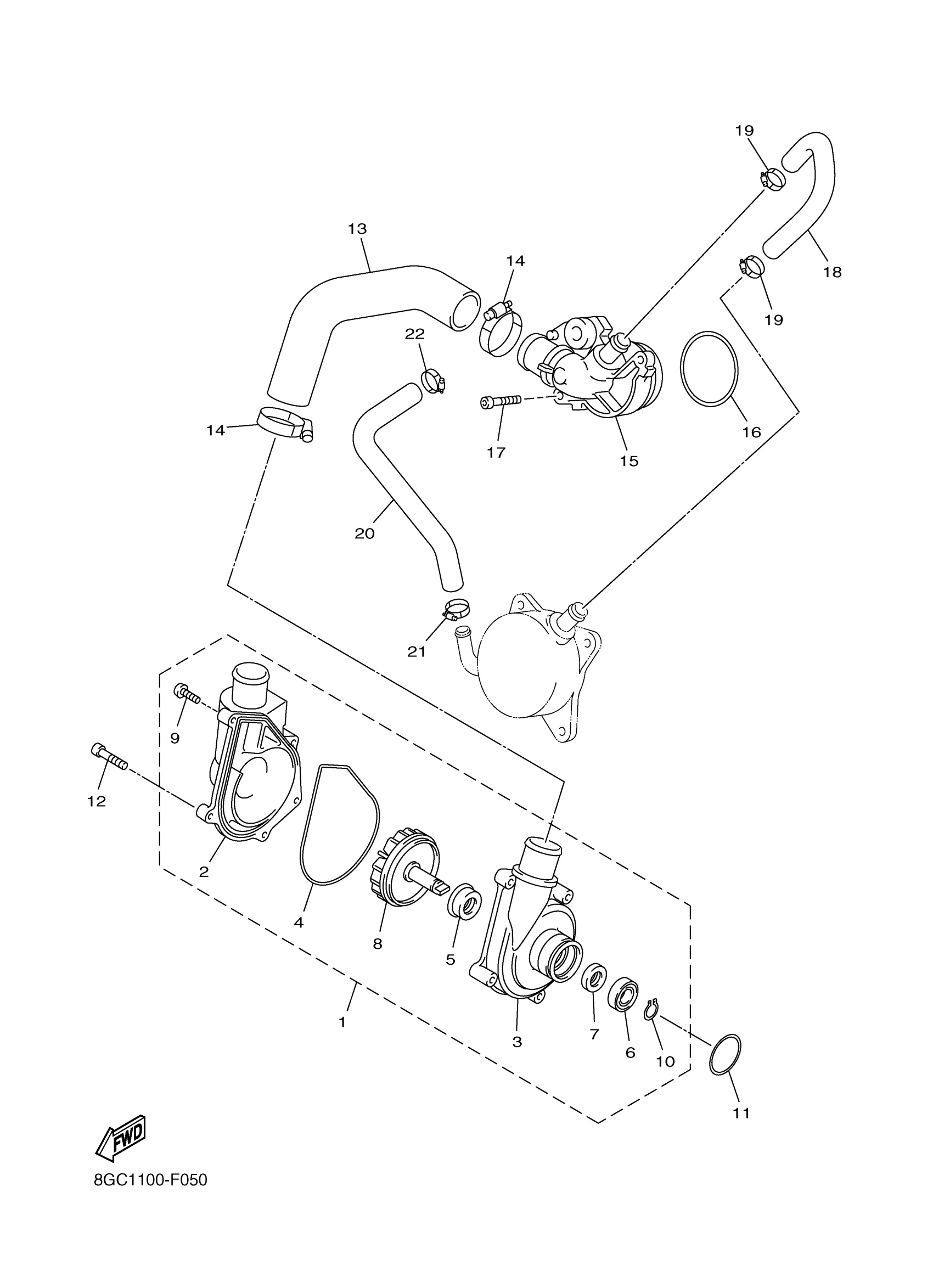

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

8GC-12420-00-00

$186.38

2

COVER, HOUSING

8GC-12422-00-00

$81.49

3

HOUSING, WATER PUMP

8GC-12421-00-00

$88.31

4

GASKET, HOUSING COVER 1

8GC-12427-00-00

$16.74

5

SEAL, MECHANICAL

8ES-12438-00-00

$39.59

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

7

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$9.89

8

IMPELLER SHAFT ASSY

8GC-12450-00-00

$27.28

9

SCREW, PAN HEAD

98580-06016-00

$2.90

10

CIRCLIP(10W)

99009-10400-00

$3.91

11

O-RING(1WT)

93210-30734-00

$12.45

12

BOLT(J17)

91312-06035-00

$2.38

13

HOSE 8

8GC-12552-00-00

$15.42

14

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

15

JOINT 1

8GC-12469-00-00

$74.98

16

O-RING (24W)

93210-56589-00

$6.77

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.45

18

HOSE 5

8GC-12588-00-00

$9.52

19

HOSE CLAMP ASSY

90450-18M09-00

$11.49

20

HOSE 6

8GC-12589-00-00

$8.85

21

HOSE CLAMP ASSY

90450-18M09-00

$11.49

22

HOSE CLAMP ASSY

90450-18M09-00

$11.49
