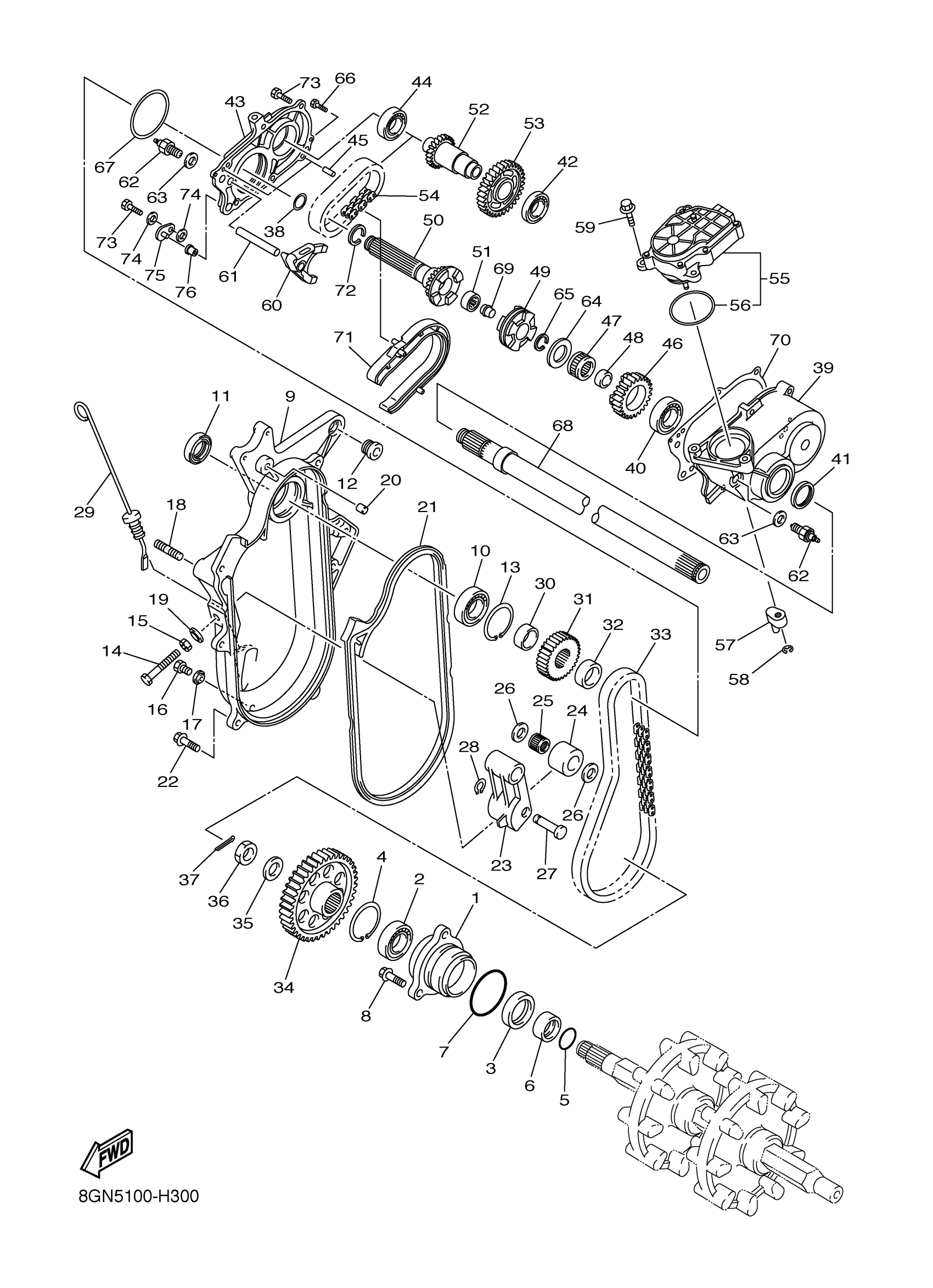

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, BEARING 2

8GC-47633-00-00

$62.63

2

BEARING

93306-20592-00

$50.25

3

OIL SEAL

93102-35010-00

$19.52

4

CIRCLIP(26H)

99009-52500-00

$10.68

5

O-RING (169)

93210-25071-00

$7.51

6

COLLAR(8CJ)

90387-2508C-00

$39.00

7

O-RING

93210-62269-00

$8.70

8

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

9

CAP, HOUSING

8GC-47543-01-00

$266.46

10

BEARING(1FF)

93306-00519-00

$31.24

11

OIL SEAL (697)

93102-32M07-00

$16.32

12

NUT(8CJ)

90179-10679-00

$6.71

13

CIRCLIP(48Y)

99009-47500-00

$7.66

14

BOLT

90101-10026-00

$3.11

15

NUT(3BM)

95314-10600-00

$1.74

16

BOLT, HEXAGON

97017-08016-00

$6.20

17

WASHER, SEAL(8AB)

90210-08017-00

$6.91

18

BOLT, STUD 3

95617-08618-00

$3.08

19

WASHER SEAL 256111730200

90210-10004-00

$4.11

20

PIN, DOWEL

91811-10005-00

$3.37

21

RING, HOUSING

8GC-47558-01-00

Unavailable

22

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

23

HOLDER

8GC-47613-00-00

$18.38

24

WHEEL

8FA-47612-00-00

$22.40

25

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$30.76

26

WASHER, PLATE (5N6)

90201-127E1-00

$3.68

27

PIN

90249-12003-00

$7.74

28

CIRCLIP(10Y)

99009-12400-00

$3.08

29

LEVEL, OIL

8GC-47546-00-00

$25.29

30

COLLAR

90387-25020-00

$8.28

31

SPROCKET, CHAIN DRIVE

8GC-17682-70-00

$50.14

32

COLLAR(85T)

90387-250V9-00

$8.12

33

CHAIN

94591-63080-00

$98.09

34

SPROCKET, CHAIN DRIVEN

8GC-47587-10-00

$103.65

35

WASHER 810475810000

90208-22001-00

$7.35

36

NUT (821-47579-00)

90170-22094-00

$5.34

37

PIN, COTTER

91490-30030-00

$7.15

38

O-RING

93210-20001-00

$5.02

39

CASE 1

8GR-46291-01-00

$164.68

40

BEARING(1FF)

93306-00519-00

$31.24

41

OIL SEAL (27X36X6-7A9)

93102-27169-00

$16.12

42

BEARING

93316-00404-00

$22.57

43

CASE 2

8GR-46292-01-00

$131.80

44

BEARING (5Y1)

93306-00426-00

$35.60

45

PIN, DOWEL

93605-17137-00

$1.20

46

GEAR, REVERSE PINION 1

8GJ-17143-00-00

$103.20

47

BEARING

93310-330S2-00

$31.37

48

COLLAR

90387-25019-00

$17.05

49

DOG, TRANSMISSION SHIFT

8GJ-17492-00-00

$151.31

50

SHAFT

8GJ-17523-01-00

$514.99

51

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$31.48

52

AXLE, COUNTER

8GJ-17431-00-00

$158.20

53

GEAR, REVERSE WHEEL 1

8GJ-17243-00-00

$100.66

54

CHAIN

94591-60044-00

$29.17

55

SERVO MOTOR COMP

8GJ-4616A-01-00

$503.68

56

O-RING

93210-50768-00

$5.86

57

ARM, SHIFT

8GJ-46386-00-00

$53.58

58

CIRCLIP (EU0)

99080-04600-00

$1.67

59

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

60

FORK, SHIFT 1

8GJ-18511-00-00

$226.62

61

SHAFT, SHIFTER

8GJ-18318-00-00

$11.54

62

NEUTRAL SWITCH ASSY

3GD-82540-11-00

$47.36

63

. GASKET

90430-10M11-00

$2.36

64

WASHER PLATE 371115580000

90201-25291-00

$8.91

65

CIRCLIP(JF7)

99009-25400-00

$6.68

66

BOLT, SOCKET

91317-05016-00

$2.48

67

. O-RING

93210-65M50-00

$8.70

68

SHAFT, SECONDARY

8GK-17681-01-00

$354.52

69

PLUG, OIL

82M-17699-00-00

$11.28

70

GASKET 1

8GJ-15455-11-00

Unavailable

71

GUIDE, CHAIN

8GJ-17466-00-00

$55.05

72

CIRCLIP(JF7)

99009-25400-00

$6.68

73

BOLT, FLANGE

95817-06040-00

$4.54

74

GASKET (4V2)

90430-06166-00

$3.45

75

PIPE,OIL 1

8GJ-17021-01-00

$42.29

76

GROMMET

90480-11013-00

$4.20
