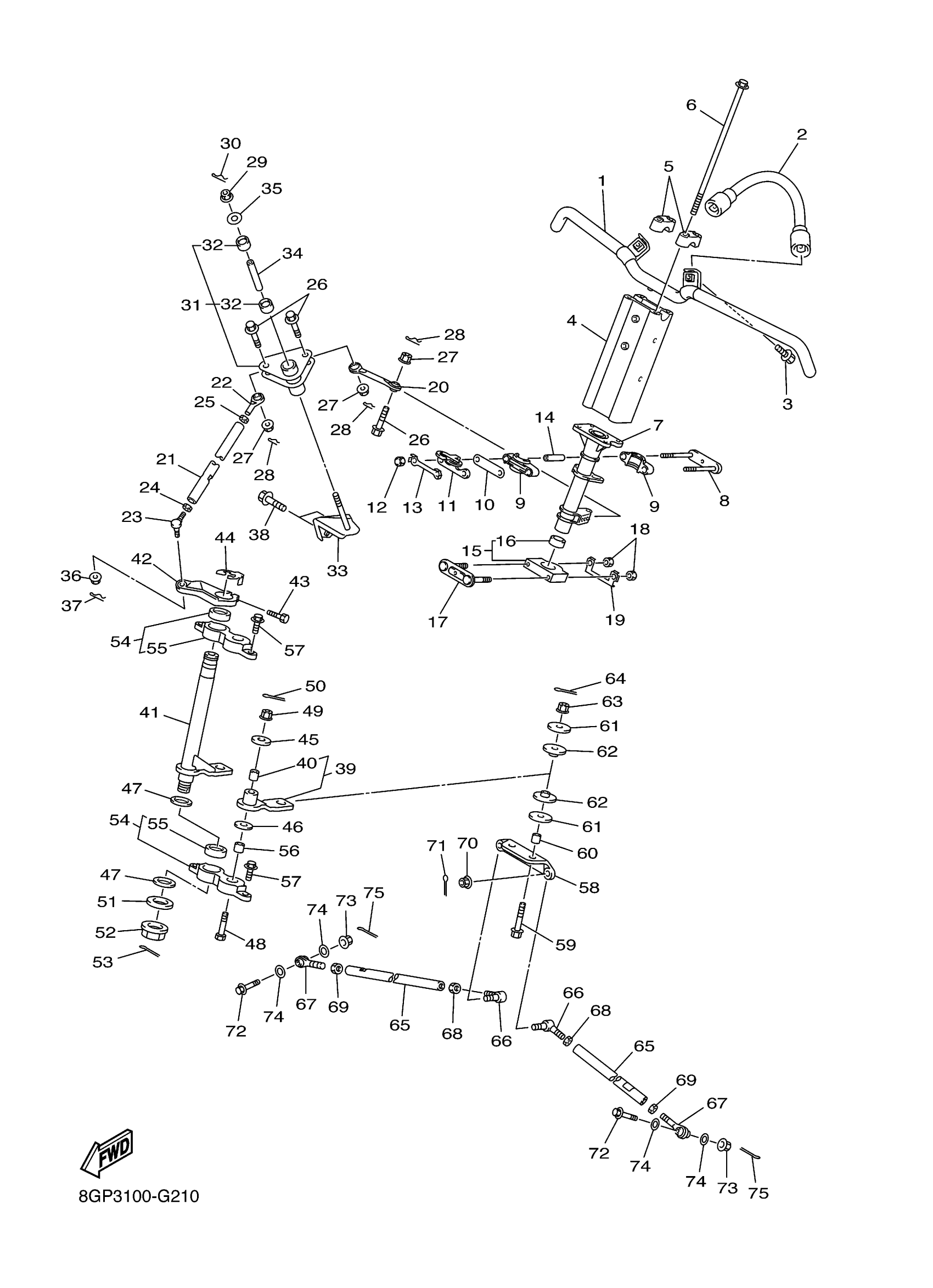

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GP-26111-10-00

$238.22

2

STRAP, STRG

8GE-23829-00-00

$131.94

3

BOLT, BUTTON HEAD

92014-06020-00

$6.91

4

JOINT

8GC-2381B-00-00

$211.52

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

6

BOLT

8GC-23436-00-00

$4.14

7

COLUMN, STEERING 2

8GC-23813-00-00

$199.65

8

HOLDER 2

8GC-23867-00-00

$17.51

9

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

10

HOLDER 2

8FA-23867-00-00

$2.49

11

HOLDER, BEARING

8GC-23872-00-00

$12.85

12

NUT, CAP

95307-08800-00

Unavailable

13

WASHER, LOCK 1

1UY-23894-01-00

$6.86

14

COLLAR

90387-09006-00

$5.43

15

PLANE BEARING, STEERING

8GC-23812-00-00

$55.37

16

BEARING

93317-425B7-00

Unavailable

17

HOLDER

8GJ-23857-00-00

$18.14

18

NUT(6L2)

95333-08600-00

$3.20

19

WASHER, LOCK 1

8GJ-23894-00-00

$11.85

20

ROD, STEERING

8GC-23828-00-00

$141.20

21

ROD, STEERING RELAY

8GC-23821-00-00

$15.25

22

JOINT, UNIVERSAL 1

8GC-23841-00-00

$61.14

23

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

24

NUT (682)

95380-10700-00

$5.78

25

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

26

BOLT, WASHER BASED(47X)

90105-08321-00

$5.74

27

NUT,FLANGE(J10)

95702-08500-00

$0.80

28

CLIP

90468-16001-00

$4.51

29

NUT, FLANGE(3BM)

95704-10500-00

$1.71

30

CLIP (7U6)

90468-18121-00

$0.74

31

ARM, CONTROL 1

8GC-2384E-00-00

$70.05

32

BEARING, CYLINDRICAL(3VR)

93317-41767-00

$38.78

33

BRACKET 1

8GK-23881-00-00

$53.86

34

NUT

8GC-23846-00-00

$11.06

35

WASHER, PLATE

90201-121U3-00

$5.45

36

NUT, FLANGE(3BM)

95704-10500-00

$1.71

37

PIN, COTTER (648)

91490-20015-00

$1.85

38

BOLT, FLANGE

95812-08030-00

$3.25

39

ARM PIVOT ASSY

8GC-2389K-00-00

$61.72

40

BUSH

8GC-23526-00-00

$26.42

41

PIVOT ARM ASSY 2

8GC-2389M-01-00

$223.52

42

ARM, INSIDE

8GC-2381A-00-00

$75.68

43

BOLT, SOCKET

91317-08025-00

$6.25

44

CIRCLIP

8GC-23183-00-00

$6.74

45

WASHER, PLATE(N04)

90201-124G7-00

$4.95

46

WASHER PLATE 371115580000

90201-25291-00

$8.91

47

WASHER, PLATE (5F7)

90201-256E4-00

$9.78

48

BOLT 1

8GC-23346-00-00

$7.05

49

95702-12500

95702-12500-00

$3.03

50

PIN, COTTER

91490-25020-00

$2.94

51

WASHER, PLATE

90201-22018-00

$4.11

52

NUT (26H)

90179-22412-00

$17.88

53

PIN, COTTER

91402-20035-00

$0.15

54

BRACKET, PIVOT

8GC-2389H-00-00

$99.48

55

BEARING

93317-425B7-00

Unavailable

56

COLLAR

8GC-23113-00-00

$22.58

57

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

58

ARM, IDLER

8GC-23826-00-00

$109.31

59

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

60

COLLAR

90387-10070-00

$25.31

61

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

62

BUSH 1

8GC-23362-00-00

$2.95

63

NUT, SELF-LOCKING

90185-10011-00

$3.92

64

PIN, COTTER (648)

91490-20015-00

$1.85

65

ROD, TIE

8GP-23831-00-00

$23.95

66

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

67

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

68

NUT (682)

95380-10700-00

$5.78

69

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

70

NUT, FLANGE(3BM)

95704-10500-00

$1.71

71

PIN, COTTER (648)

91490-20015-00

$1.85

72

BOLT

8GC-23493-00-00

$6.18

73

NUT,FLANGE(J10)

95702-08500-00

$0.80

74

WASHER, PLATE

90201-06018-00

$3.74

75

PIN, COTTER (648)

91490-20015-00

$1.85
