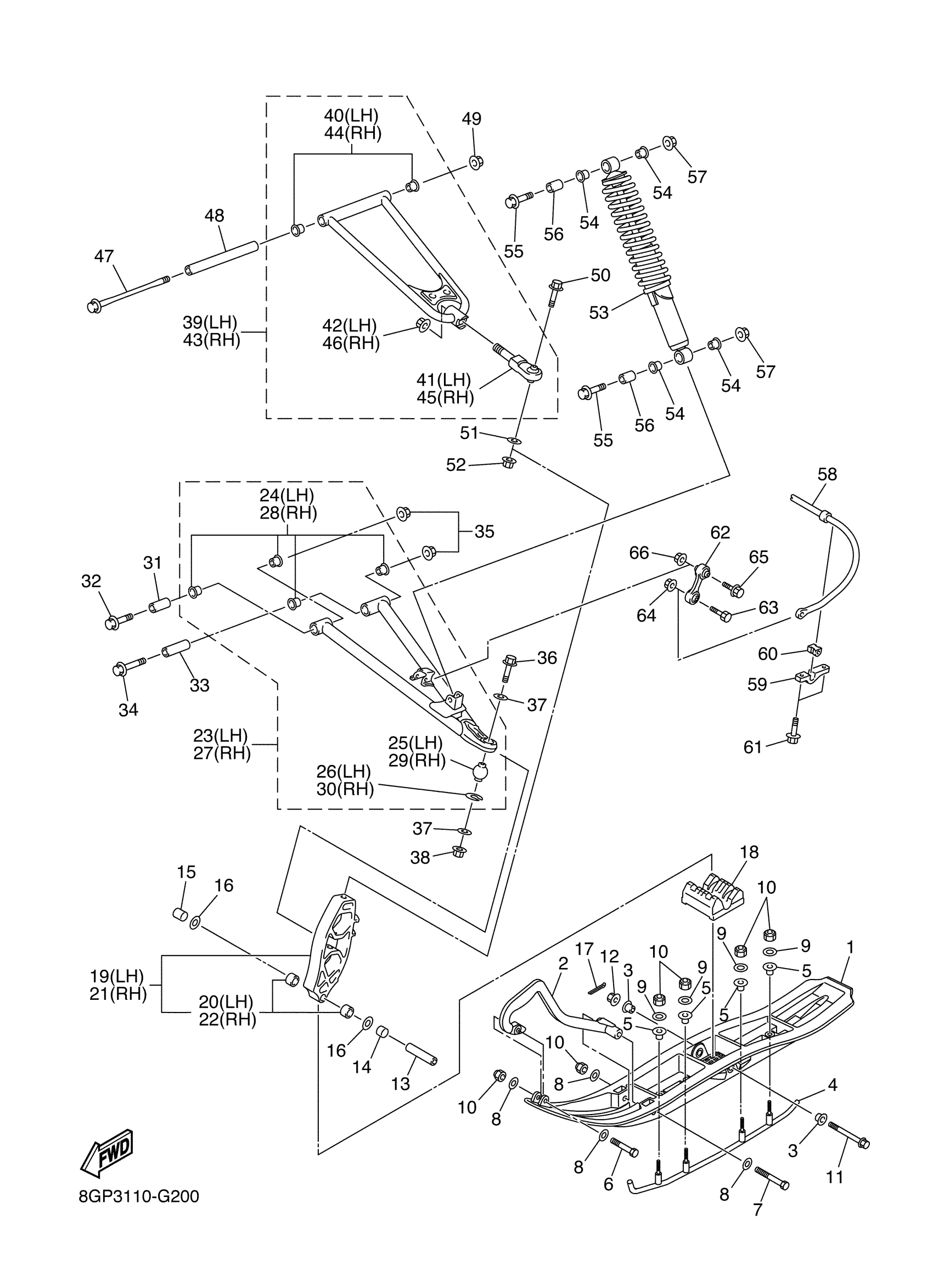

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 SKI Diagram

#

Description
Price

1

SKI 1

8FK-23711-00-BK

Unavailable

2

BLACK 8DM HANDLE PLASTIC

8DM-23712-00-BK

Unavailable

2

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

SKI RUNNER KIT

SMA-F3731-GP-00

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

$5.66

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

BOLT, HEXAGON

97027-08100-00

$4.55

8

WASHER, PLATE (3L7)

90201-08784-00

$2.54

9

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

10

NUT, NYLON

95717-08300-00

$2.57

11

BOLT, FLANGE

90105-10410-00

$12.08

12

NUT, S/L FLANGE

95602-10200-00

$2.29

13

COLLAR

90387-10036-00

$19.77

14

COLLAR

90387-16022-00

$7.29

15

COLLAR

90387-16023-00

$8.29

16

WASHER, PLATE

90201-16022-00

$8.31

17

PIN, COTTER

91490-20025-00

$1.31

18

STOPPER 1

8GP-23743-00-00

$63.17

19

STEERING KNUCKLE ASSY (LEFT)

8GK-23501-01-00

$415.68

20

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

21

STEERING KNUCKLE ASSY (RIGHT)

8GK-23502-01-00

$324.31

22

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

23

FRONT LOWER ARM COMP. (LEFT)

8GP-23570-A0-00

$371.75

23

FRONT LOWER ARM COMP. (LEFT)

8GP-23570-B0-00

$371.75

24

BUSH, SOLID

90381-16003-00

$21.54

25

BALL JOINT 2

8GK-23579-01-00

$133.02

26

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

27

FRONT LOWER ARM COMP. (RIGHT)

8GP-23580-A0-00

$371.75

27

FRONT LOWER ARM COMP. (RIGHT)

8GP-23580-B0-00

$371.75

28

BUSH, SOLID

90381-16003-00

$21.54

29

BALL JOINT 2

8GK-23579-01-00

$133.02

30

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

31

COLLAR

90387-10093-00

$18.20

32

BOLT, FLANGE

90105-10211-00

$5.97

33

COLLAR

90387-10074-00

$23.92

34

BOLT, FLANGE

90105-10212-00

$5.62

35

NUT, S/L FLANGE

95602-10200-00

$2.29

36

BOLT, FLANGE

90105-10210-00

$5.40

37

WASHER, PLATE

90201-10051-00

$7.26

38

NUT, S/L FLANGE

95602-10200-00

$2.29

39

FRONT UPPER ARM COMP. (LEFT)

8GP-23540-A0-00

Unavailable

39

FRONT UPPER ARM COMP. (LEFT)

8GP-23540-B0-00

Unavailable

40

BUSH, SOLID

90381-15003-00

$23.55

41

BALL JOINT 1

8GK-23549-00-00

$148.63

42

NUT, U FLANGE

95602-14200-00

$9.89

43

FRONT UPPER ARM COMP. (RIGHT)

8GP-23550-A0-00

Unavailable

43

FRONT UPPER ARM COMP. (RIGHT)

8GP-23550-B0-00

Unavailable

44

BUSH, SOLID

90381-15003-00

$23.55

45

BALL JOINT 1

8GK-23549-00-00

$148.63

46

NUT, U FLANGE

95602-14200-00

$9.89

47

BOLT, FLANGE

90105-10213-00

$15.49

48

COLLAR

90387-10073-00

$25.32

49

NUT, S/L FLANGE

95602-10200-00

$2.29

50

BOLT

91312-10045-00

$4.04

51

WASHER, PLATE

90201-10052-00

$6.28

52

NUT, S/L FLANGE

95602-10200-00

$2.29

53

ABSORBER ASSY 1

8GP-2376A-30-00

$353.37

54

BUSH, SOLID(8CM)

90381-14101-00

$7.48

55

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

56

COLLAR (8U7)

90387-105G5-00

$7.35

57

NUT, S/L FLANGE

95602-10200-00

$2.29

58

BAR, STABILIZER FRONT

8GN-2386E-10-00

$254.17

59

HOLDER, STABILIZER FRONT

8GN-2386C-00-00

$34.42

60

BUSH, STABILIZER FRONT

8GN-2386G-10-00

$8.23

61

BOLT, FLANGE

95812-08020-00

$1.69

62

JOINT, STABILIZER 1

8GN-2385L-00-00

$97.48

63

BOLT(6TA)

97017-10035-00

$5.80

64

NUT, S/L FLANGE

95602-10200-00

$2.29

65

BOLT, FLANGE

95817-08040-00

$5.43

66

NUT, SELF-LOCKING

95602-08200-00

$2.77
