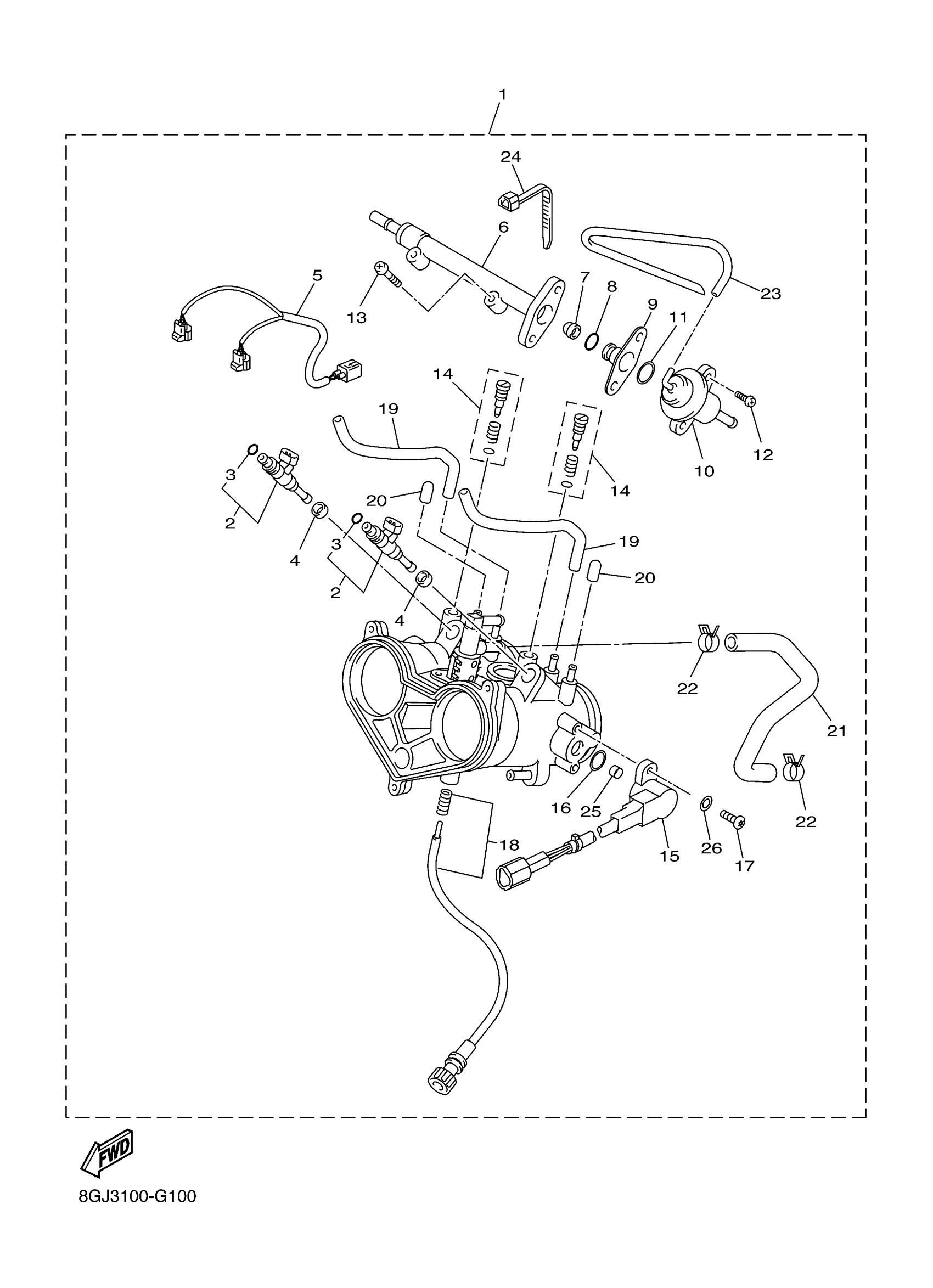

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8GC-13750-12-00

Unavailable

2

INJECTOR ASSY

8GC-13761-00-00

$254.51

3

O-RING

8GC-13769-00-00

Unavailable

4

GASKET

90430-09002-00

$9.65

5

EXTENSION, WIRE HARNESS

8GC-82386-10-00

$37.83

6

PIPE

8GC-13938-00-00

$111.95

7

FILTER COMP

65L-13905-00-00

$9.49

8

O-RING

8GC-13769-00-00

Unavailable

9

SEAT, INTAKE VALVE 1

8GC-13661-00-00

$33.38

10

REGULATOR, PRESSURE

8GC-13906-00-00

$212.46

11

O-RING

8GC-1416A-00-00

$4.29

12

SCREW, PAN HEAD

8GC-14325-00-00

$3.14

13

SCREW, ROD

8GC-14486-00-00

$7.05

14

AIR SCREW SET

8GC-14104-00-00

$44.23

15

THROTTLE SENSOR ASSY

5BE-85885-10-00

$464.68

16

O-RING

4TV-14562-00-00

$6.52

17

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.07

18

ADJUST SCREW SET

8GC-14503-00-00

$78.95

19

PIPE

8GC-14349-00-00

$4.68

20

CAP

8GC-14169-00-00

$7.83

21

HOSE

8GC-14987-00-00

$11.06

22

CLIP

8GC-13577-00-00

$3.37

23

. PIPE 1

8GC-14348-00-00

Unavailable

24

BAND

8GC-13575-00-00

$2.66

25

COLLAR

4TV-14534-00-00

$17.69

26

WASHER(JF2)

92907-04600-00

$1.23
