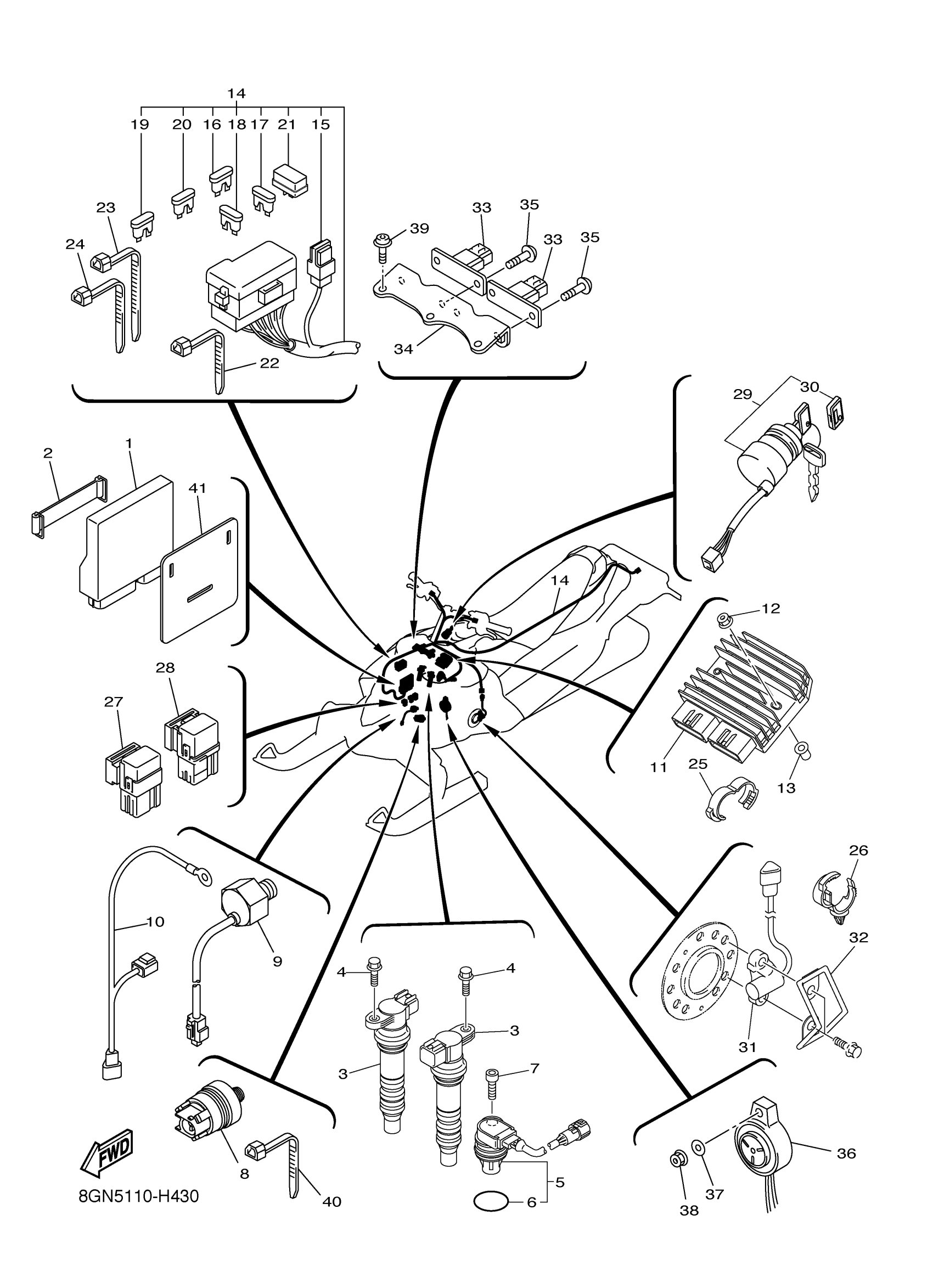

Yamaha PZ50MTYW (PHAZER MTX) 8GP50 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8GP-8591A-20-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$7.91

3

IGNITION COIL ASSY

8FP-82310-00-00

$189.28

4

BOLT, FLANGE

95817-06025-00

$1.46

5

SENSOR, CAM POSITION

8GC-85896-02-00

Unavailable

6

O-RING

4D9-81168-00-00

$3.71

7

BOLT,SOCKET HEAD

91314-06020-00

$2.05

8

OIL PRESSURE SWITCH

8FP-82504-01-00

$57.01

9

SENSOR, KNOCK

8GC-85780-00-00

$134.77

10

LEAD WIRE ASSY

8GC-81515-00-00

$31.15

11

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

12

NUT, U FLANGE

95604-06200-00

$2.35

13

COLLAR

90387-06M45-00

$8.45

14

WIRE HARNESS ASSY

8GN-82590-21-00

Unavailable

15

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

16

FUSE (15A)

67F-82151-50-00

$3.71

17

FUSE

5JJ-82151-20-00

$6.42

18

FUSE (7.5A-BL)

5JJ-82151-00-00

$5.93

19

FISE (4A-BL)

5JJ-82151-40-00

$3.57

20

. FUSE (3A)

67F-82151-30-00

$4.89

21

DIODE ASSY

4WA-81980-00-00

$25.93

22

BAND, SWITCH CORD

25G-83936-01-00

$4.12

23

CLAMP(4FM)

90464-15195-00

$2.77

24

CLAMP(4FM)

90464-15195-00

$2.77

25

CLAMP

90464-16001-00

$1.71

26

CLAMP(4AP)

90464-20181-00

$2.80

27

RELAY ASSY

5DM-81950-01-00

$24.72

28

RELAY ASSY (8FP-01)

8FP-81950-01-00

$33.20

29

MAIN SWITCH ASSY

8FA-82510-01-00

Unavailable

30

CAP, KEY

526-82579-00-00

$6.72

31

SENSOR, SPEED

8GK-83755-12-00

$164.09

32

COVER 2

8GC-2198G-00-00

$33.14

33

SENSOR, PRESSURE

5PS-82380-00-00

$285.54

34

PANEL 1

8GC-1441L-00-00

$12.72

35

SCREW, PAN

98517-06012-00

$3.14

36

BUZZER

8GK-83383-00-00

Unavailable

37

WASHER, PLATE

90201-05043-00

$5.26

38

NUT, FLANGE

95702-05500-00

$0.74

39

BOLT, BUTTON HEAD

92012-05008-00

$2.34

40

CLAMP

90464-13077-00

$6.68

41

PAD 2

8GC-77152-00-00

$8.28
