- PZ50MTXW (PHAZER MTX) 8GP30 2008
TRACK SUSPENSION 1

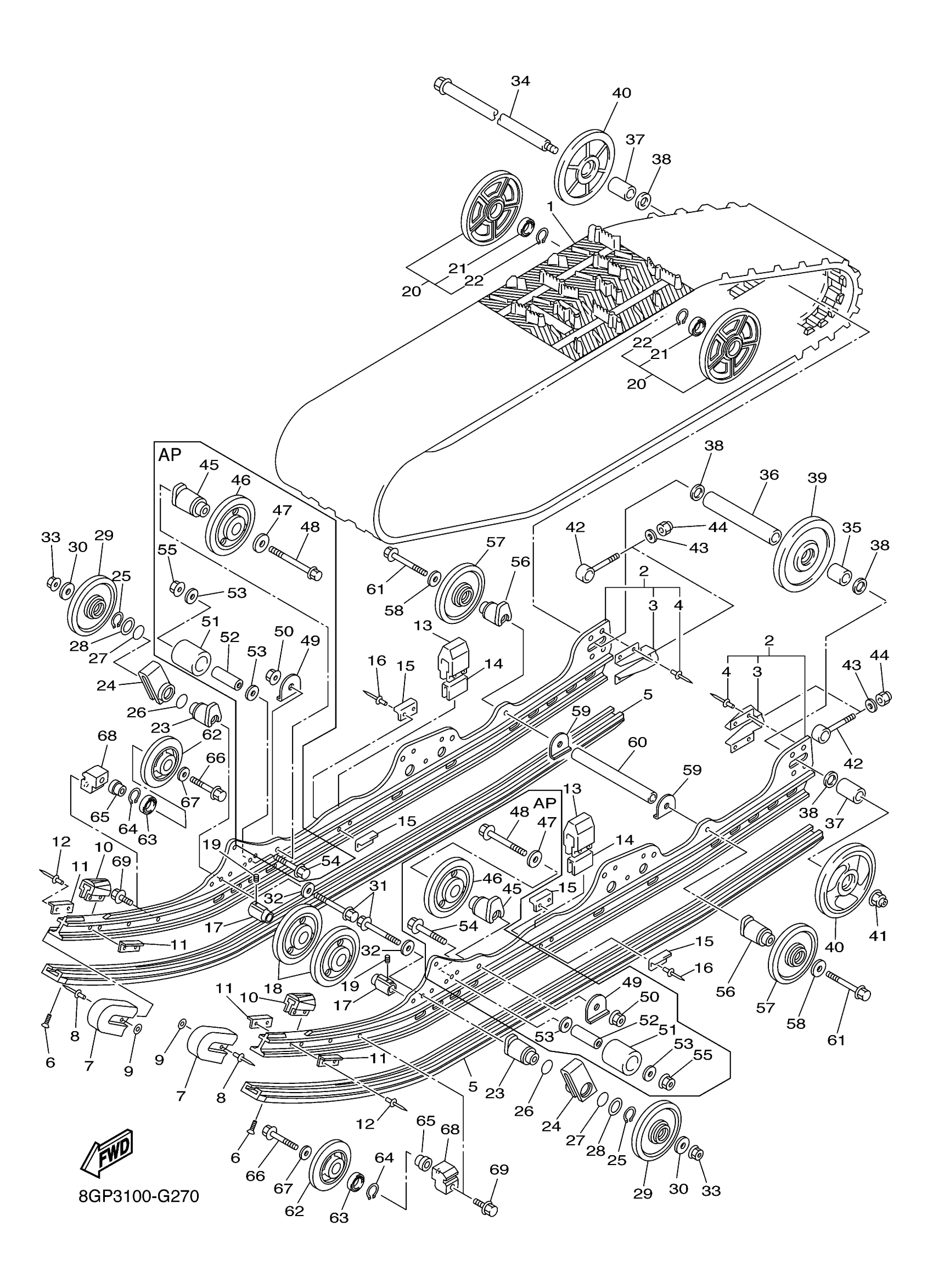

Yamaha PZ50MTXW (PHAZER MTX) 8GP30 2008 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8GP-47110-01-00
Unavailable
2
FRAME, SLIDING
8GP-W4741-01-00
$388.99
3
BRACKET
8DM-4741B-00-00
$45.99
4
RIVET
8V0-47468-00-00
$10.49
5
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8AC-47457-00-00
$18.49
14
SPACER
8AC-47341-00-00
$40.99
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
COLLAR
8ES-47319-01-00
Unavailable
18
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
19
BOLT, SET (8K2)
90113-06039-00
Unavailable
20
GUIDE WHEEL COMP.
8GC-47530-10-00
Unavailable
21
BEARING
93306-00616-00
Unavailable
22
CIRCLIP
99009-55500-00
Unavailable
23
BRACKET 7
8ES-47419-10-00
Unavailable
24
HOOK 1
8ES-47446-00-00
Unavailable
25
CIRCLIP(6U2)
93410-35M10-00
Unavailable
26
O-RING (16G)
93210-35537-00
Unavailable
27
O-RING (21A)
93210-34633-00
Unavailable
28
WASHER, PLATE
90201-35013-00
Unavailable
29
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
30
WASHER, PLATE
90201-10038-00
Unavailable
31
BOLT, FLANGE
95812-10080-00
Unavailable
32
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
35
COLLAR
90387-20015-00
Unavailable
36
COLLAR
90387-20016-00
Unavailable
37
COLLAR
90387-20019-00
Unavailable
38
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
39
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
40
WEIGHT
8EK-47550-11-00
Unavailable
41
NUT, U FLANGE
95602-14200-00
Unavailable
42
COLLAR 3
8DM-47479-00-00
Unavailable
43
WASHER, PLATE
92990-10600-00
Unavailable
44
NUT, NYLON
95707-10300-00
Unavailable
45
BRACKET 7
8ES-47419-00-00
Unavailable
46
SUSPENSION WHEEL ASSY
8ES-47310-10-00
Unavailable
47
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
48
BOLT, FLANGE
95812-10080-00
Unavailable
49
WASHER, CLAW
90214-10003-00
Unavailable
50
NUT, S/L FLANGE
95602-10200-00
Unavailable
51
ROLLER
8ES-47429-00-00
Unavailable
52
COLLAR
90387-10025-00
Unavailable
53
WASHER, PLATE
90201-10052-00
Unavailable
54
BOLT, FLANGE
95812-10060-00
Unavailable
55
NUT, S/L FLANGE
95602-10200-00
Unavailable
56
BRACKET 7
8ES-47419-00-00
Unavailable
57
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
58
WASHER, PLATE
90201-10038-00
Unavailable
59
WASHER, CLAW
90214-10003-00
Unavailable
60
SHAFT 3
8FU-47485-00-00
Unavailable
61
95812-10090
95812-10090-00
Unavailable
62
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
63
BEARING(8AB)
93306-00444-00
Unavailable
64
CIRCLIP(5U8)
99009-42500-00
Unavailable
65
COLLAR
8GP-47319-00-00
Unavailable
66
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
67
WASHER, PLATE
90201-10052-00
Unavailable
68
BRACKET 7
8GP-47419-00-00
Unavailable
69
BOLT, FLANGE
95817-10030-00
Unavailable
