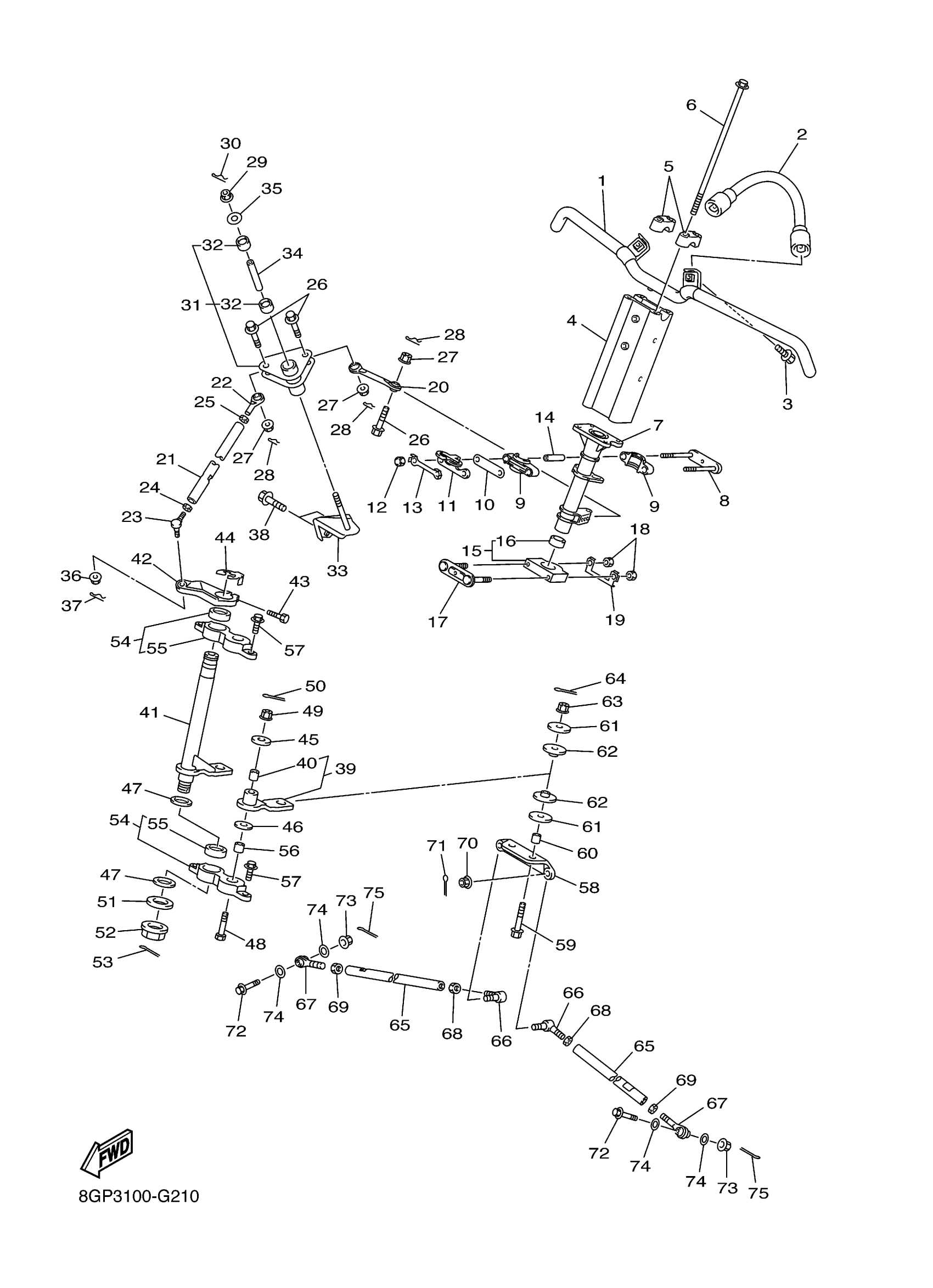

Yamaha PZ50MTXW (PHAZER MTX) 8GP30 2008 STEERING Diagram
#
1
HANDLEBAR
8GP-26111-10-00
Unavailable
2
STRAP, STRG
8GE-23829-00-00
$137.99
3
BOLT, BUTTON HEAD
92014-06020-00
$9.49
4
JOINT
8GC-2381B-00-00
Unavailable
5
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
6
BOLT
8GC-23436-00-00
$4.46
7
COLUMN, STEERING 2
8GC-23813-00-00
Unavailable
8
HOLDER 2
8GC-23867-00-00
Unavailable
9
PLANE BEARING, STEERING
8FA-23812-00-00
$6.99
10
HOLDER 2
8FA-23867-00-00
Unavailable
11
HOLDER, BEARING
8GC-23872-00-00
Unavailable
12
NUT, CAP
95307-08800-00
$7.49
13
WASHER, LOCK 1
1UY-23894-01-00
$7.99
14
COLLAR
90387-09006-00
$7.49
15
PLANE BEARING, STEERING
8GC-23812-00-00
$61.99
16
BEARING
93317-425B7-00
Unavailable
17
HOLDER
8GJ-23857-00-00
Unavailable
18
NUT(6L2)
95333-08600-00
Unavailable
19
WASHER, LOCK 1
8GJ-23894-00-00
Unavailable
20
ROD, STEERING
8GC-23828-00-00
Unavailable
21
ROD, STEERING RELAY
8GC-23821-00-00
Unavailable
22
JOINT, UNIVERSAL 1
8GC-23841-00-00
Unavailable
23
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
24
NUT (682)
95380-10700-00
Unavailable
25
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
26
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
27
NUT,FLANGE(J10)
95702-08500-00
Unavailable
28
CLIP
90468-16001-00
Unavailable
29
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
30
CLIP (7U6)
90468-18121-00
Unavailable
31
ARM, CONTROL 1
8GC-2384E-00-00
Unavailable
32
BEARING, CYLINDRICAL(3VR)
93317-41767-00
Unavailable
33
BRACKET 1
8GK-23881-00-00
Unavailable
34
NUT
8GC-23846-00-00
Unavailable
35
WASHER, PLATE
90201-121U3-00
Unavailable
36
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
37
PIN, COTTER (648)
91490-20015-00
Unavailable
38
BOLT, FLANGE
95812-08030-00
Unavailable
39
ARM PIVOT ASSY
8GC-2389K-00-00
Unavailable
40
BUSH
8GC-23526-00-00
Unavailable
41
PIVOT ARM ASSY 2
8GC-2389M-00-00
Unavailable
42
ARM, INSIDE
8GC-2381A-00-00
Unavailable
43
BOLT, SOCKET
91317-08025-00
Unavailable
44
CIRCLIP
8GC-23183-00-00
Unavailable
45
WASHER, PLATE(N04)
90201-124G7-00
Unavailable
46
WASHER PLATE 371115580000
90201-25291-00
Unavailable
47
WASHER, PLATE (5F7)
90201-256E4-00
Unavailable
48
BOLT 1
8GC-23346-00-00
Unavailable
49
95702-12500
95702-12500-00
Unavailable
50
PIN, COTTER
91490-25020-00
Unavailable
51
WASHER, PLATE
90201-22018-00
Unavailable
52
NUT (26H)
90179-22412-00
Unavailable
53
PIN, COTTER
91402-20035-00
Unavailable
54
BRACKET, PIVOT
8GC-2389H-00-00
Unavailable
55
BEARING
93317-425B7-00
Unavailable
56
COLLAR
8GC-23113-00-00
Unavailable
57
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
58
ARM, IDLER
8GC-23826-00-00
Unavailable
59
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
60
COLLAR
90387-10070-00
Unavailable
61
WASHER, PLATE(JN9)
90201-100S2-00
Unavailable
62
BUSH 1
8GC-23362-00-00
Unavailable
63
NUT, SELF-LOCKING
90185-10011-00
Unavailable
64
PIN, COTTER (648)
91490-20015-00
Unavailable
65
ROD, TIE
8GP-23831-00-00
Unavailable
66
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
67
JOINT, UNIVERSAL 3
8GC-23847-00-00
Unavailable
68
NUT (682)
95380-10700-00
Unavailable
69
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
70
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
71
PIN, COTTER (648)
91490-20015-00
Unavailable
72
BOLT
8GC-23493-00-00
Unavailable
73
NUT,FLANGE(J10)
95702-08500-00
Unavailable
74
WASHER, PLATE
90201-06018-00
Unavailable
75
PIN, COTTER (648)
91490-20015-00
Unavailable
