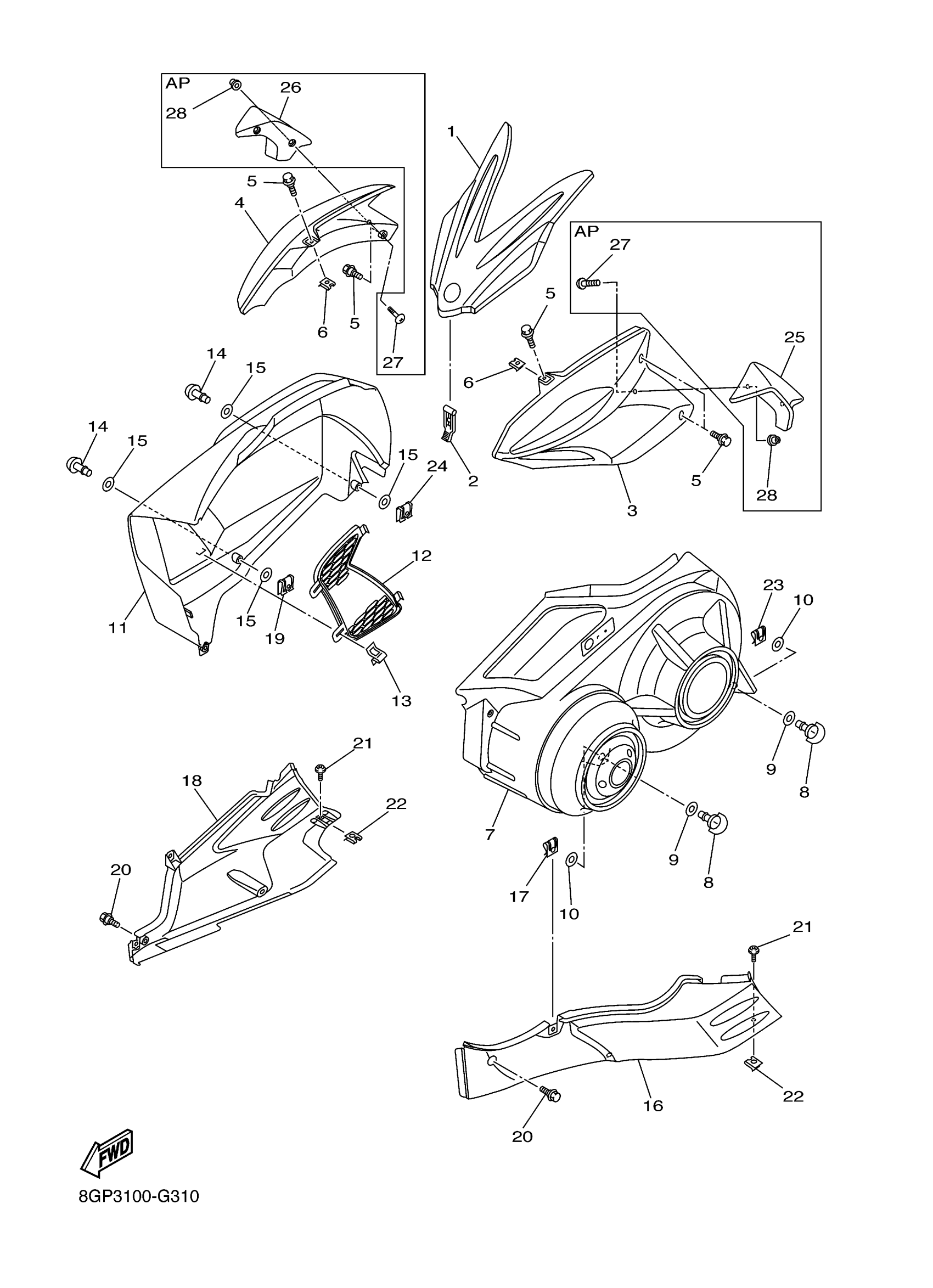

Yamaha PZ50MTXW (PHAZER MTX) 8GP30 2008 SHROUD Diagram
#
1
SHROUD
8GC-77111-00-00
$99.99
1
SHROUD
8GC-77111-30-00
$99.99
2
BAND
59V-21646-00-00
$22.99
3
PANEL 1
8GC-2835U-00-00
Unavailable
3
PANEL 1
8GC-2835U-30-00
$63.99
4
PANEL 2
8GC-2835V-00-00
Unavailable
4
PANEL 2
8GC-2835V-30-00
$65.99
5
BOLT
90109-06220-00
$10.49
6
NUT, SPRING
90183-06100-00
$10.49
7
HOOD 3
8GC-2197H-20-00
Unavailable
8
HEAD
3FV-28386-00-00
$40.99
9
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
10
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
11
HOOD 4
8GC-2198H-21-00
Unavailable
12
LOUVER 4
8GC-77134-00-00
Unavailable
13
CLIP
90468-06001-00
Unavailable
14
HEAD
5PW-28386-00-00
Unavailable
15
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
16
FRAME UNDER 1
8GC-2196A-20-00
Unavailable
17
PLATE, SPRING
4XV-2177L-01-00
Unavailable
18
FRAME, UNDER 2
8GC-2196E-20-00
Unavailable
19
PLATE, SPRING
5PW-2177L-01-00
Unavailable
20
BOLT
90109-06220-00
$10.49
21
SCREW
90149-06105-00
Unavailable
22
NUT, SPRING
90183-06100-00
$10.49
23
PLATE, SPRING
4XV-2177L-01-00
Unavailable
24
PLATE, SPRING
5PW-2177L-01-00
Unavailable
25
PROTECTOR, SIDE 1
8GK-77561-00-00
Unavailable
26
PROTECTOR, SIDE 2
8GK-77562-00-00
Unavailable
27
SCREW, BIND (8K2)
98902-05016-00
Unavailable
28
NUT(1KT)
90179-05523-00
Unavailable
