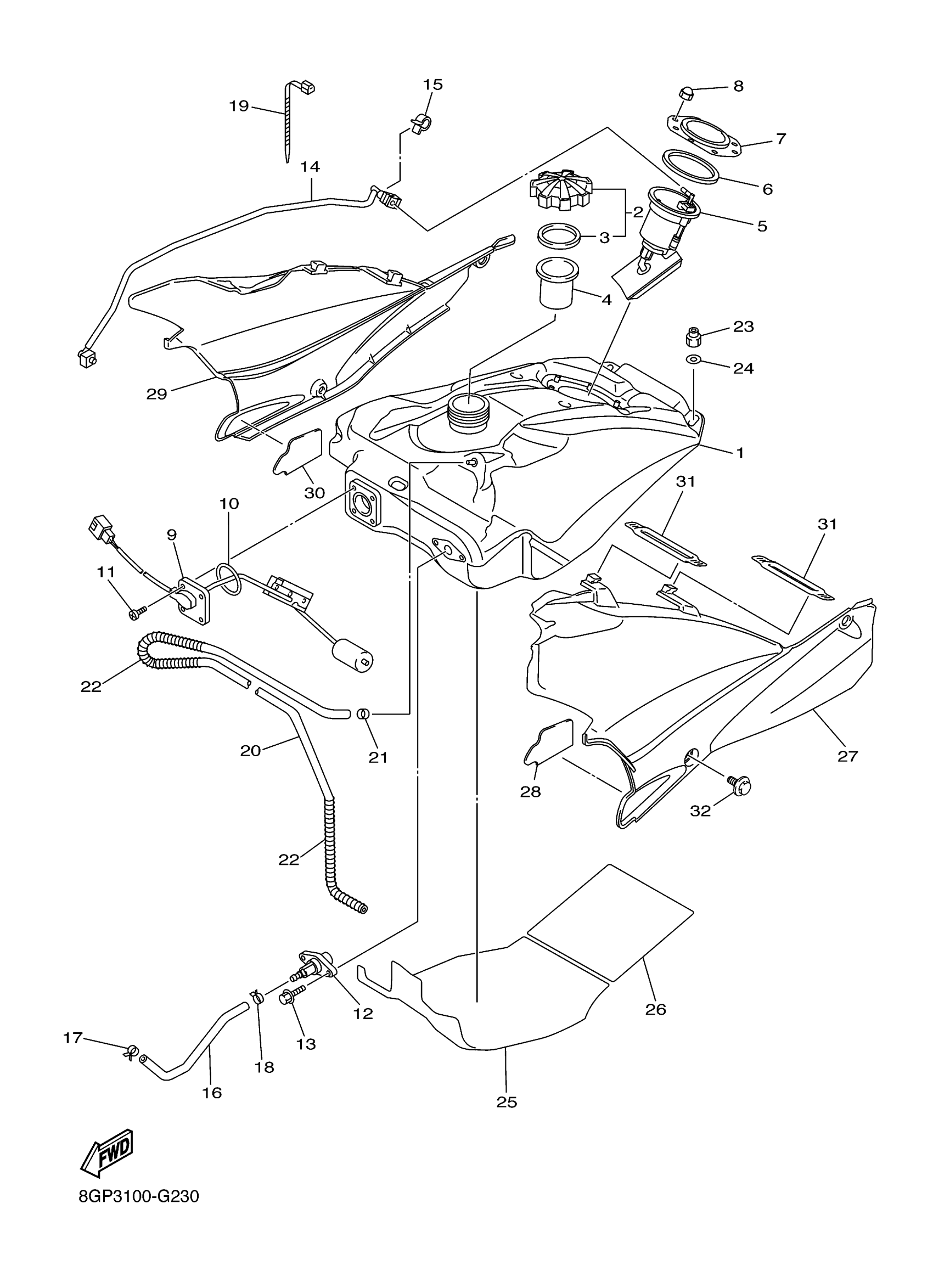

Yamaha PZ50MTXW (PHAZER MTX) 8GP30 2008 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8GC-24111-10-00

$787.99

2

CAP ASSY

8FG-24610-01-00

$40.99

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FN-24114-00-00

Unavailable

5

FUEL PUMP COMP.

8GC-13907-04-00

$726.99

6

O-RING

8FP-24486-00-00

$18.99

7

BRACKET, FUEL PUMP

8FP-24491-00-00

Unavailable

8

NUT (J17)

95380-06800-00

$8.49

9

SENDER UNIT ASSY, FUEL METER

8GK-85752-00-00

Unavailable

10

O-RING (102)

93210-41041-00

$7.49

11

SCREW, BIND

98902-05008-00

$1.70

12

VALVE, CHECK 1

8FP-24362-01-00

$67.99

13

BOLT, FLANGE

95817-06012-00

$1.43

14

PIPE, FUEL 1

8GC-24311-10-00

Unavailable

15

CLAMP

90464-14004-00

$7.49

16

PIPE 2

8GC-24312-10-00

Unavailable

17

CLIP(3YX)

90467-13133-00

Unavailable

18

CLIP(3YX)

90467-13133-00

Unavailable

19

CLAMP

90464-13077-00

Unavailable

20

PIPE 3

8GC-24313-00-00

Unavailable

21

CLIP (2A6)

90468-02078-00

Unavailable

22

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

23

NUT, NYLON

95717-08300-00

Unavailable

24

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

25

INSULATOR, FUEL TANK 1

8GC-2416F-00-00

Unavailable

26

INSULATOR, FUEL TANK 2

8GC-2416G-01-00

Unavailable

27

COVER, SIDE 1

8GC-24129-00-00

Unavailable

28

INSULATOR 1

8GC-8253E-00-00

Unavailable

29

COVER, SIDE 2

8GC-24139-00-00

Unavailable

30

INSULATOR 2

8GC-8253F-00-00

Unavailable

31

BAND, TANK FITTING 1

8GC-24173-00-00

Unavailable

32

BOLT

90109-06220-00

Unavailable
