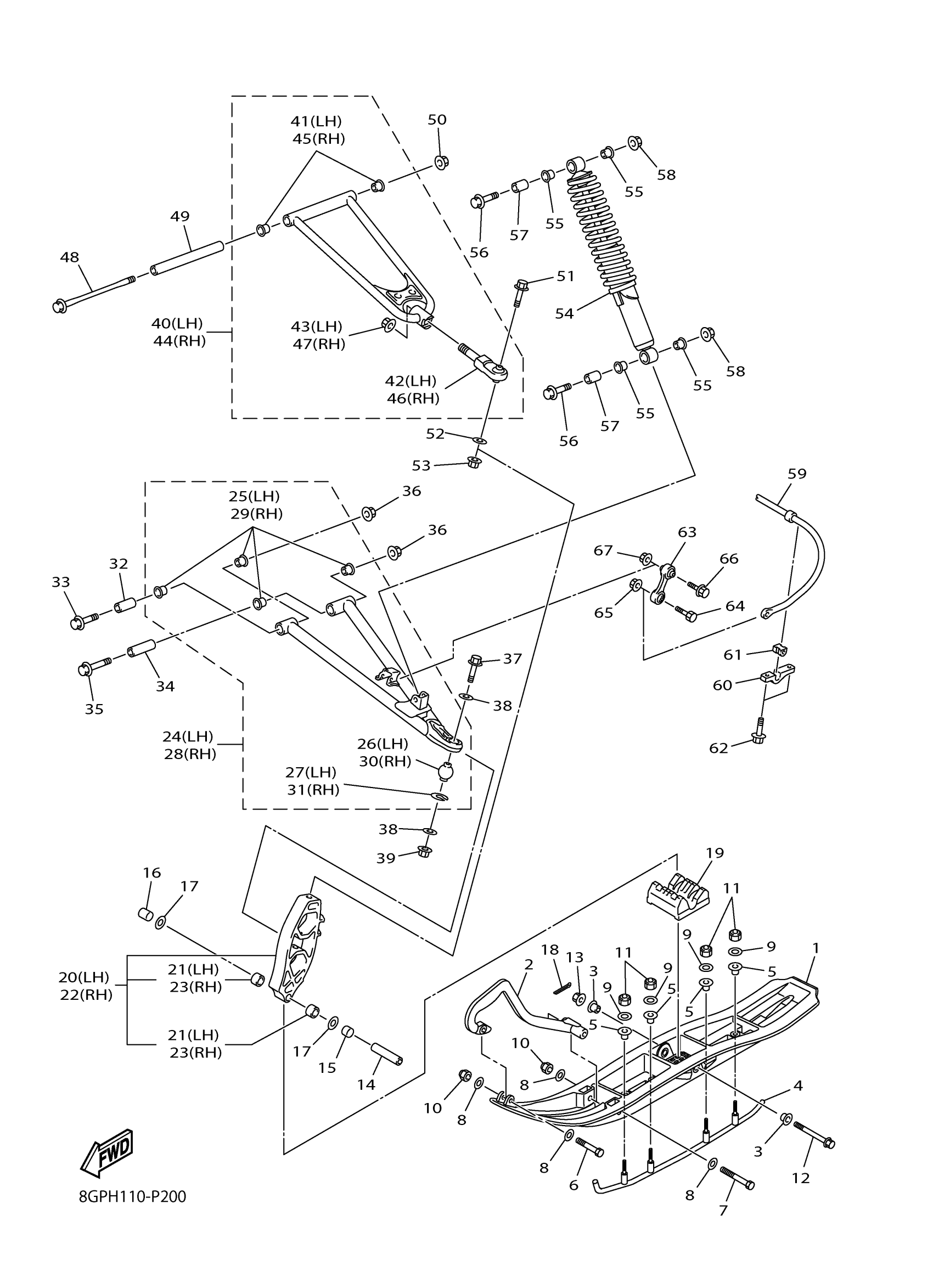

Yamaha PZ50MTHB (PHAZER MTX) 8GPM 2017 SKI Diagram
#
1
SKI 1
8FK-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
SKI RUNNER KIT
SMA-F3731-GP-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
NUT, NYLON
95717-08300-00
$2.70
12
BOLT, FLANGE
90105-10410-00
$14.99
13
NUT, S/L FLANGE
95602-10200-00
$4.82
14
COLLAR
90387-10036-00
$22.99
15
COLLAR
90387-16022-00
$8.49
16
COLLAR
90387-16023-00
Unavailable
17
WASHER, PLATE
90201-16022-00
Unavailable
18
PIN, COTTER
91490-20025-00
Unavailable
19
STOPPER 1
8GP-23743-00-00
Unavailable
20
STEERING KNUCKLE ASSY (LEFT)
8GK-23501-01-00
Unavailable
21
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
22
STEERING KNUCKLE ASSY (RIGHT)
8GK-23502-01-00
Unavailable
23
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
24
FRONT LOWER ARM COMP. (LEFT)
8GP-23570-C0-00
Unavailable
25
BUSH, SOLID
90381-16003-00
Unavailable
26
BALL JOINT 2
8GK-23579-01-00
Unavailable
27
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
28
FRONT LOWER ARM COMP. (RIGHT)
8GP-23580-C0-00
Unavailable
29
BUSH, SOLID
90381-16003-00
Unavailable
30
BALL JOINT 2
8GK-23579-01-00
Unavailable
31
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
32
COLLAR
90387-10093-00
Unavailable
33
BOLT, FLANGE
90105-10211-00
Unavailable
34
COLLAR
90387-10074-00
Unavailable
35
BOLT, FLANGE
90105-10212-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
$4.82
37
BOLT, FLANGE
90105-10210-00
Unavailable
38
WASHER, PLATE
90201-10051-00
Unavailable
39
NUT, S/L FLANGE
95602-10200-00
$4.82
40
FRONT UPPER ARM COMP. (LEFT)
8GP-23540-C0-00
Unavailable
41
BUSH, SOLID
90381-15003-00
Unavailable
42
BALL JOINT 1
8GK-23549-00-00
Unavailable
43
NUT, U FLANGE
95602-14200-00
Unavailable
44
FRONT UPPER ARM COMP. (RIGHT)
8GP-23550-C0-00
Unavailable
45
BUSH, SOLID
90381-15003-00
Unavailable
46
BALL JOINT 1
8GK-23549-00-00
Unavailable
47
NUT, U FLANGE
95602-14200-00
Unavailable
48
BOLT, FLANGE
90105-10213-00
Unavailable
49
COLLAR
90387-10073-00
Unavailable
50
NUT, S/L FLANGE
95602-10200-00
$4.82
51
BOLT
91312-10045-00
Unavailable
52
WASHER, PLATE
90201-10052-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
$4.82
54
ABSORBER ASSY 1
8GP-2376A-30-00
Unavailable
55
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
56
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
57
COLLAR (8U7)
90387-105G5-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
$4.82
59
BAR, STABILIZER FRONT
8GN-2386E-10-00
Unavailable
60
HOLDER, STABILIZER FRONT
8GN-2386C-00-00
Unavailable
61
BUSH, STABILIZER FRONT
8GN-2386G-10-00
Unavailable
62
BOLT, FLANGE
95812-08020-00
Unavailable
63
JOINT, STABILIZER 1
8GN-2385L-00-00
Unavailable
64
BOLT(6TA)
97017-10035-00
Unavailable
65
NUT, S/L FLANGE
95602-10200-00
$4.82
66
BOLT, FLANGE
95817-08040-00
Unavailable
67
NUT, SELF-LOCKING
95602-08200-00
Unavailable
