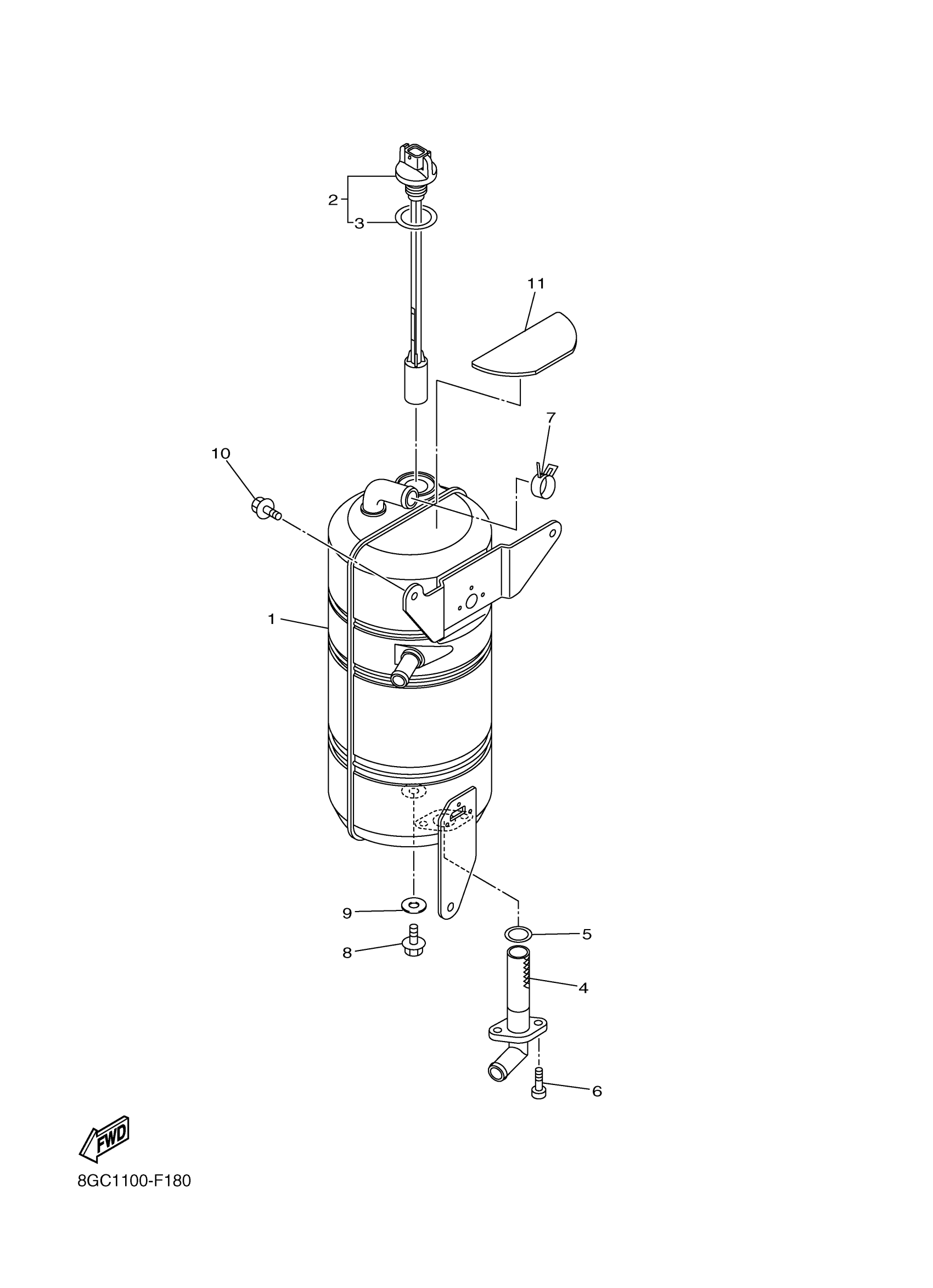

Yamaha PZ50MTHB (PHAZER MTX) 8GPM 2017 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8GC-21751-00-00

Unavailable

2

OIL LEVEL GAUGE ASSY

8GC-85720-00-00

$39.42

3

O-RING

8FP-85075-00-00

$8.12

4

OIL PIPE COMP. 2

8GC-13406-00-00

Unavailable

5

O-RING (603)

93210-19026-00

$6.22

6

BOLT(3MA)

91312-06016-00

$4.57

7

CLIP(34X)

90467-22097-00

$6.65

8

BOLT, FLANGE

95817-08012-00

$3.71

9

GASKET(3AJ)

90430-08204-00

$6.10

10

BOLT, FLANGE

95817-06016-00

$1.40

11

DAMPER

8GC-21746-00-00

$10.47
