- PZ50MTFB (PHAZER MTX) 8GPH 2015
TRACK SUSPENSION 1

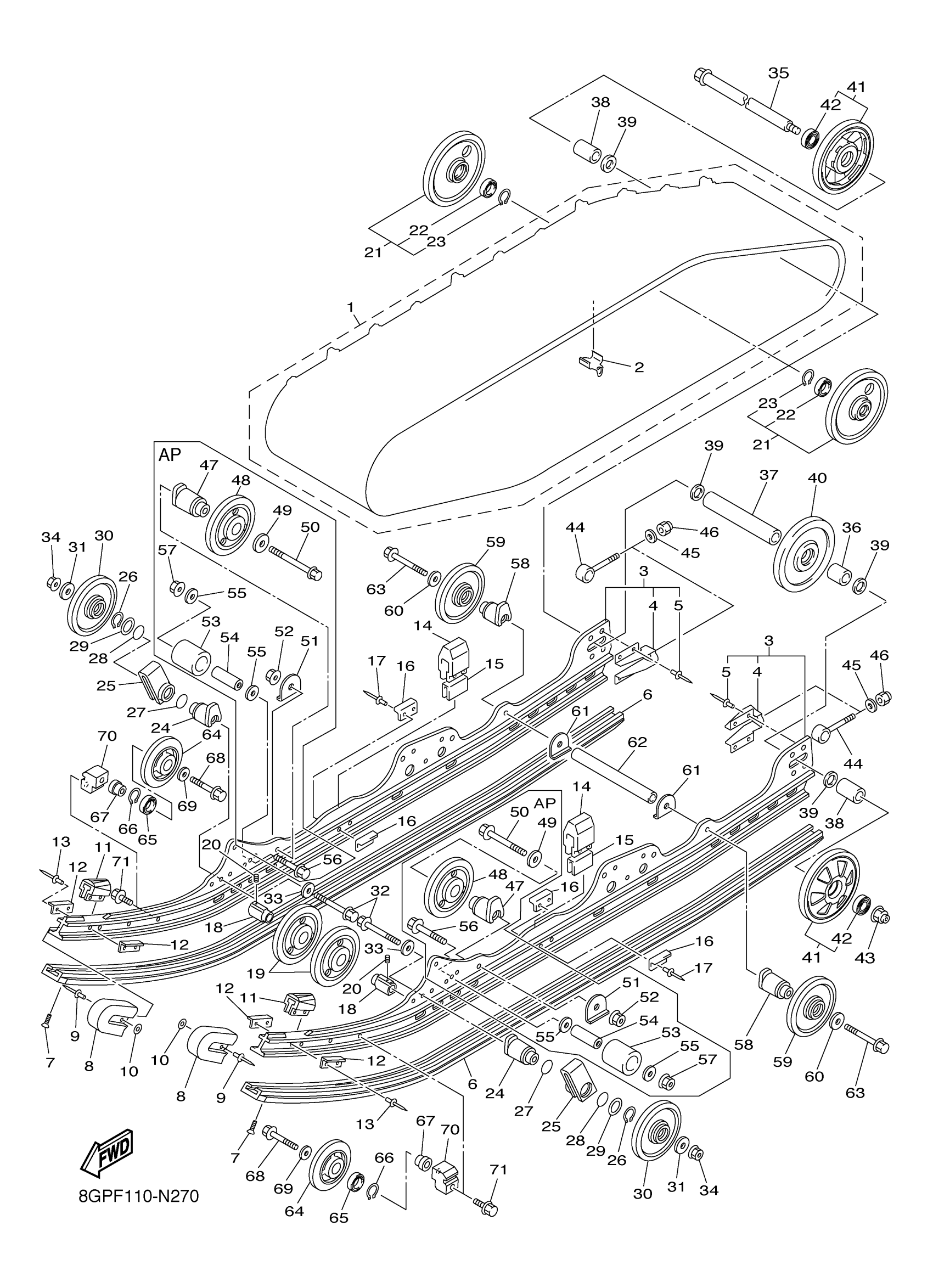

Yamaha PZ50MTFB (PHAZER MTX) 8GPH 2015 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8GP-47110-01-00
Unavailable
2
METAL, SLIDE
8HR-47115-09-00
$16.99
3
FRAME, SLIDING
8GP-W4741-01-00
$388.99
4
BRACKET
8DM-4741B-00-00
$45.99
5
RIVET
8V0-47468-00-00
$10.49
6
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
7
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
8
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
9
RIVET BLIND
90267-48194-00
$3.28
10
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
11
DAMPER 1
8ES-47456-00-00
$6.99
12
PLATE, DAMPER
8K2-47458-01-00
$4.77
13
RIVET, BLIND
90267-48199-00
$3.76
14
DAMPER 2
8AC-47457-00-00
$18.49
15
SPACER
8AC-47341-00-00
$40.99
16
PLATE, DAMPER
8AX-47458-00-00
Unavailable
17
RIVET, BLIND
90267-48199-00
$3.76
18
COLLAR
8ES-47319-01-00
Unavailable
19
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
GUIDE WHEEL COMP.
8GC-47530-10-00
Unavailable
22
BEARING
93306-00616-00
Unavailable
23
CIRCLIP
99009-55500-00
Unavailable
24
BRACKET 7
8ES-47419-10-00
Unavailable
25
HOOK 1
8ES-47446-00-00
Unavailable
26
CIRCLIP(6U2)
93410-35M10-00
Unavailable
27
O-RING (16G)
93210-35537-00
Unavailable
28
O-RING (21A)
93210-34633-00
Unavailable
29
WASHER, PLATE
90201-35013-00
Unavailable
30
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
31
WASHER, PLATE
90201-101U2-00
Unavailable
32
BOLT, FLANGE
95812-10080-00
Unavailable
33
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
36
COLLAR
90387-20015-00
Unavailable
37
COLLAR
90387-20016-00
Unavailable
38
COLLAR
90387-20019-00
Unavailable
39
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
40
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
41
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
42
BEARING(8AB)
93306-00444-00
Unavailable
43
NUT, U FLANGE
95602-14200-00
Unavailable
44
COLLAR 3
8DM-47479-00-00
Unavailable
45
WASHER, PLATE
92990-10600-00
Unavailable
46
NUT, NYLON
95707-10300-00
Unavailable
47
BRACKET 7
8ES-47419-00-00
Unavailable
48
SUSPENSION WHEEL ASSY
8ES-47310-10-00
Unavailable
49
WASHER, PLATE
90201-101U2-00
Unavailable
50
BOLT, FLANGE
95812-10080-00
Unavailable
51
WASHER, CLAW
90214-10003-00
Unavailable
52
NUT, S/L FLANGE
95602-10200-00
Unavailable
53
ROLLER
8ES-47429-00-00
Unavailable
54
COLLAR
90387-10025-00
Unavailable
55
WASHER, PLATE
90201-10052-00
Unavailable
56
BOLT, FLANGE
95812-10060-00
Unavailable
57
NUT, S/L FLANGE
95602-10200-00
Unavailable
58
BRACKET 7
8ES-47419-00-00
Unavailable
59
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
60
WASHER, PLATE
90201-101U2-00
Unavailable
61
WASHER, CLAW
90214-10003-00
Unavailable
62
SHAFT 3
8FU-47485-00-00
Unavailable
63
95812-10090
95812-10090-00
Unavailable
64
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
65
BEARING(8AB)
93306-00444-00
Unavailable
66
CIRCLIP(5U8)
99009-42500-00
Unavailable
67
COLLAR
8GP-47319-00-00
Unavailable
68
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
69
WASHER, PLATE
90201-10052-00
Unavailable
70
BRACKET 7
8GP-47419-00-00
Unavailable
71
BOLT, FLANGE
95817-10030-00
Unavailable
