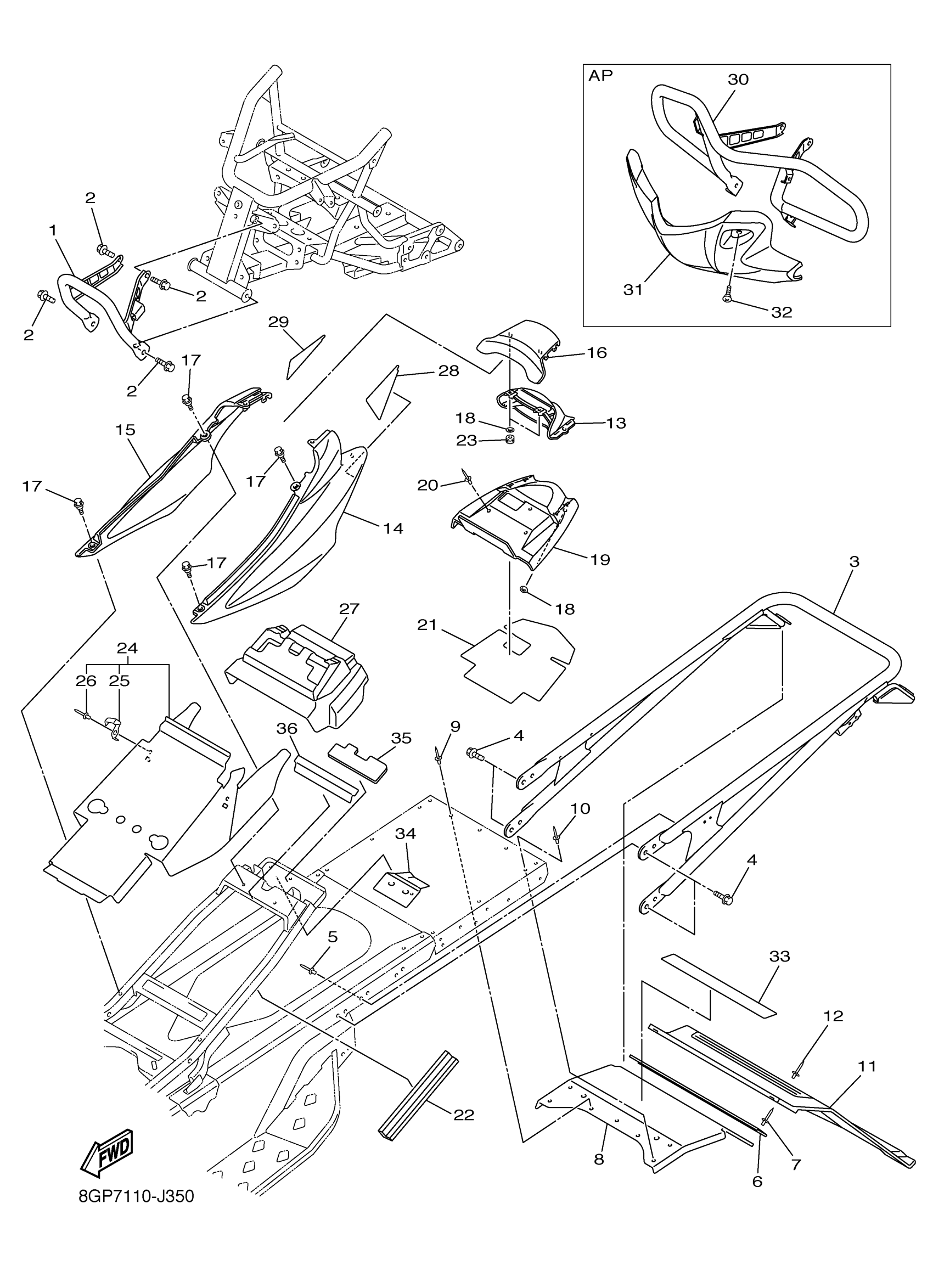

Yamaha PZ50MTBW (PHAZER MTX) 8GPB 2012 BUMPER Diagram
#
1
BUMPER, FRONT 1
8GC-77511-10-00
$157.99
2
BOLT, FLANGE
95814-08016-00
$9.49
3
BUMPER, REAR 1
8GP-77541-20-00
Unavailable
4
BOLT, FLANGE
95814-08016-00
$9.49
5
RIVET, BLIND
90267-47195-00
$3.88
6
STOPPER, FLAP
8GC-77596-00-00
Unavailable
7
RIVET, BLIND
90267-47195-00
$3.88
8
PANEL, SUB FRAME 5
8GC-21916-00-00
$89.99
9
RIVET, BLIND
90267-47195-00
$3.88
10
RIVET, BLIND
90267-47197-00
$2.39
11
FLAP
8GT-K7595-00-00
Unavailable
12
RIVET, BLIND(8CH)
90267-47187-00
$2.34
13
COVER, TAILLIGHT
8GC-84516-01-00
$26.99
14
PROTECTOR 1
8GC-77551-40-00
Unavailable
15
PROTECTOR 2
8GC-77552-40-00
Unavailable
16
PROTECTOR 3
8GC-77553-40-00
Unavailable
17
BOLT
90109-06220-00
Unavailable
18
NUT, SPRING
90183-06071-00
Unavailable
19
BRACKET, TAILLIGHT
8GC-2117E-01-00
Unavailable
20
RIVET, BLIND(8CH)
90267-47187-00
$2.34
21
SEAT 1
8GC-2112B-00-00
Unavailable
22
SHEET,2
8GC-2113C-00-00
Unavailable
23
GROMMET(1WG)
90480-11454-00
Unavailable
24
PROTECTOR 5
8GC-77555-00-00
Unavailable
25
CLAMP(3RW)
90462-08224-00
Unavailable
26
RIVET, BLIND
90267-47195-00
$3.88
27
PROTECTOR 6
8GC-77556-00-00
Unavailable
28
PROTECTOR, SIDE 1
8GC-77561-00-00
Unavailable
29
PROTECTOR, SIDE 2
8GC-77562-00-00
Unavailable
30
BUMPER, FRONT 1
8GR-77511-10-00
Unavailable
31
PROTECTOR 5
8GR-77555-00-00
Unavailable
32
SCREW(2XF)
90149-06263-00
Unavailable
33
LABEL, WARNING 2
8HA-77762-E0-00
Unavailable
34
PROTECTOR 7
8GC-77557-00-00
Unavailable
35
INSULATOR 1
8GC-8258K-00-00
Unavailable
36
INSULATOR 2
8GC-8259K-00-00
Unavailable
