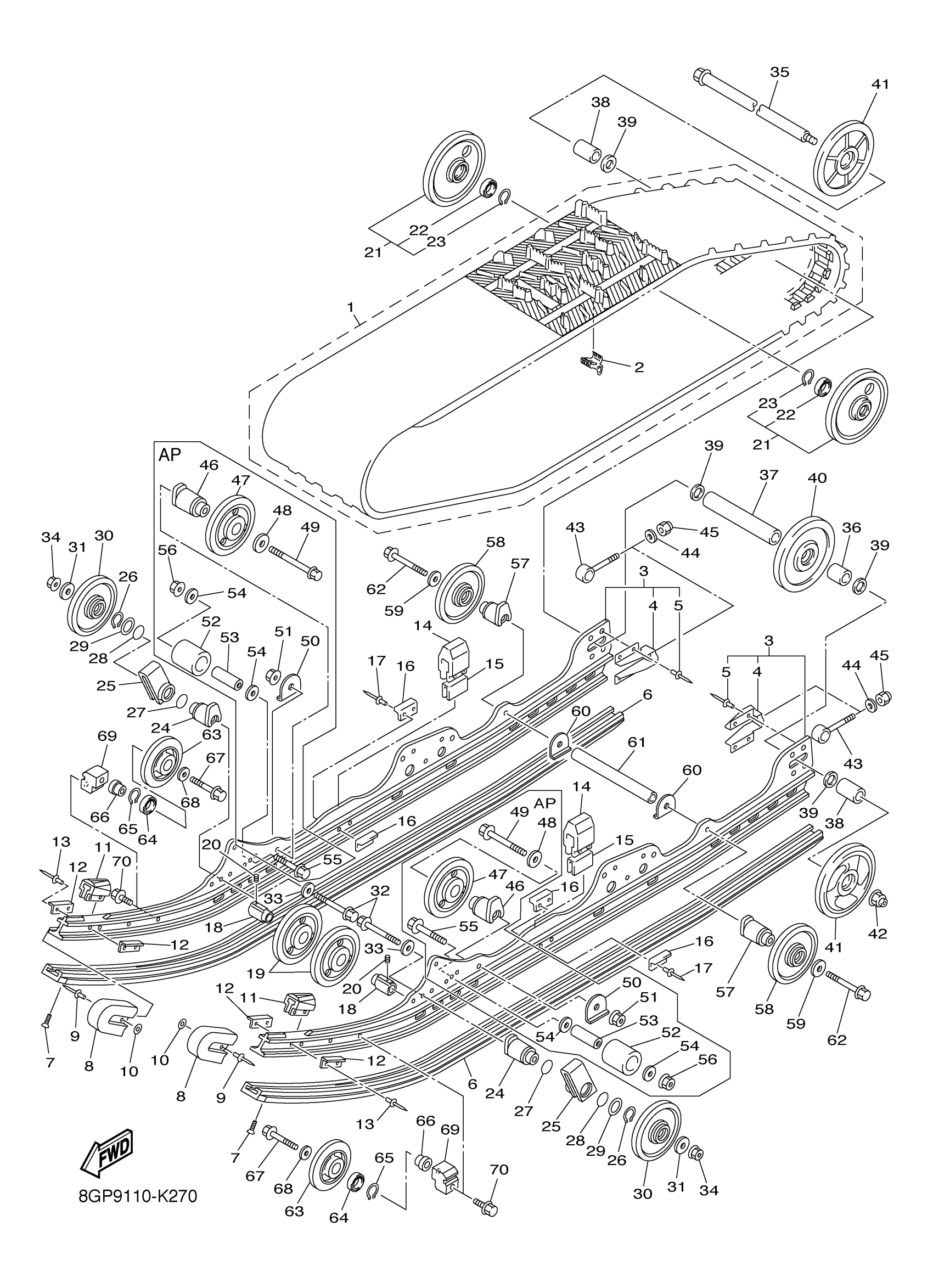

Yamaha PZ50MTAW (PHAZER MTX) 8GP9 2011 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8GP-47110-01-00

Unavailable

2

METAL, SLIDE

8GN-47115-09-00

$13.99

3

FRAME, SLIDING

8GP-W4741-01-00

$388.99

4

BRACKET

8DM-4741B-00-00

$45.99

5

RIVET

8V0-47468-00-00

$10.49

6

FX NYTRO 162" HP WIDE HYFAX

SMA-8HR92-00-BK

Unavailable

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

8

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

9

RIVET BLIND

90267-48194-00

$3.28

10

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

11

DAMPER 1

8ES-47456-00-00

$6.99

12

PLATE, DAMPER

8K2-47458-01-00

$4.77

13

RIVET, BLIND

90267-48199-00

$3.76

14

DAMPER 2

8AC-47457-00-00

$18.49

15

SPACER

8AC-47341-00-00

$40.99

16

PLATE, DAMPER

8AX-47458-00-00

Unavailable

17

RIVET, BLIND

90267-48199-00

$3.76

18

COLLAR

8ES-47319-01-00

Unavailable

19

SUSPENSION WHEEL ASSY

8ET-47310-00-00

Unavailable

20

BOLT, SET (8K2)

90113-06039-00

Unavailable

21

GUIDE WHEEL COMP.

8GC-47530-10-00

Unavailable

22

BEARING

93306-00616-00

Unavailable

23

CIRCLIP

99009-55500-00

Unavailable

24

BRACKET 7

8ES-47419-10-00

Unavailable

25

HOOK 1

8ES-47446-00-00

Unavailable

26

CIRCLIP(6U2)

93410-35M10-00

Unavailable

27

O-RING (16G)

93210-35537-00

Unavailable

28

O-RING (21A)

93210-34633-00

Unavailable

29

WASHER, PLATE

90201-35013-00

Unavailable

30

SUSPENSION WHEEL ASSY

8ES-47310-00-00

Unavailable

31

WASHER, PLATE

90201-101U2-00

Unavailable

32

BOLT, FLANGE

95812-10080-00

Unavailable

33

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

34

NUT, S/L FLANGE

95602-10200-00

Unavailable

35

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

36

COLLAR

90387-20015-00

Unavailable

37

COLLAR

90387-20016-00

Unavailable

38

COLLAR

90387-20019-00

Unavailable

39

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

40

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

41

WEIGHT

8EK-47550-11-00

Unavailable

42

NUT, U FLANGE

95602-14200-00

Unavailable

43

COLLAR 3

8DM-47479-00-00

Unavailable

44

WASHER, PLATE

92990-10600-00

Unavailable

45

NUT, NYLON

95707-10300-00

Unavailable

46

BRACKET 7

8ES-47419-00-00

Unavailable

47

SUSPENSION WHEEL ASSY

8ES-47310-10-00

Unavailable

48

WASHER, PLATE

90201-101U2-00

Unavailable

49

BOLT, FLANGE

95812-10080-00

Unavailable

50

WASHER, CLAW

90214-10003-00

Unavailable

51

NUT, S/L FLANGE

95602-10200-00

Unavailable

52

ROLLER

8ES-47429-00-00

Unavailable

53

COLLAR

90387-10025-00

Unavailable

54

WASHER, PLATE

90201-10052-00

Unavailable

55

BOLT, FLANGE

95812-10060-00

Unavailable

56

NUT, S/L FLANGE

95602-10200-00

Unavailable

57

BRACKET 7

8ES-47419-00-00

Unavailable

58

SUSPENSION WHEEL ASSY

8ES-47310-00-00

Unavailable

59

WASHER, PLATE

90201-101U2-00

Unavailable

60

WASHER, CLAW

90214-10003-00

Unavailable

61

SHAFT 3

8FU-47485-00-00

Unavailable

62

95812-10090

95812-10090-00

Unavailable

63

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

64

BEARING(8AB)

93306-00444-00

Unavailable

65

CIRCLIP(5U8)

99009-42500-00

Unavailable

66

COLLAR

8GP-47319-00-00

Unavailable

67

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

68

WASHER, PLATE

90201-10052-00

Unavailable

69

BRACKET 7

8GP-47419-00-00

Unavailable

70

BOLT, FLANGE

95817-10030-00

Unavailable
