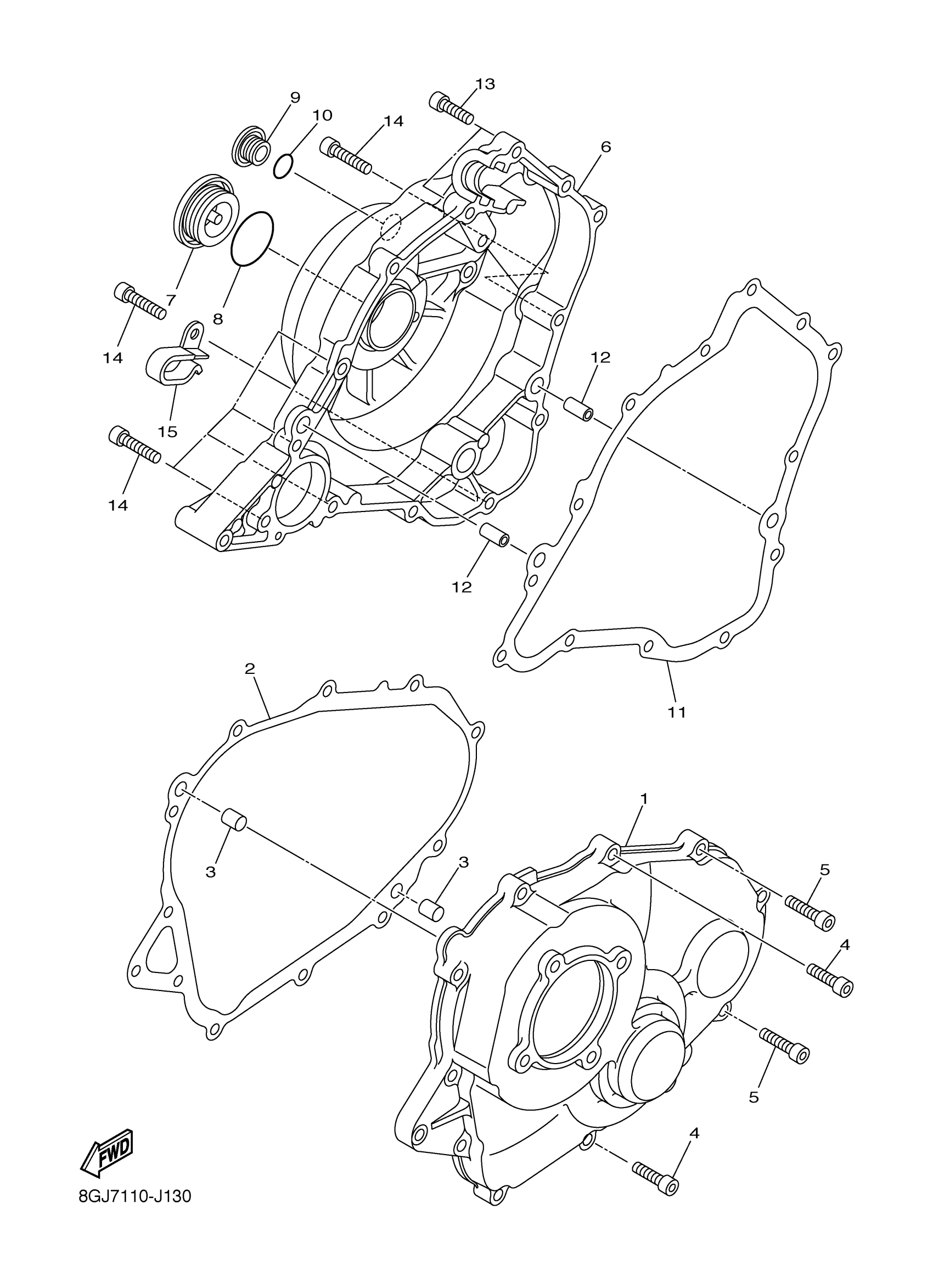

Yamaha PZ50MTAW (PHAZER MTX) 8GP9 2011 CRANKCASE COVER 1 Diagram

#

Description

Price

1

COVER, CRANKCASE 1

8GC-15411-00-00

$149.99

2

GASKET, CRANKCASE COVER 1

8GC-15451-00-00

Unavailable

3

PIN, STRAIGHT

90250-08017-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$10.49

6

COVER, CRANKCASE 2

8GC-15421-01-00

Unavailable

7

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

8

O-RING (341)

93210-32172-00

$7.49

9

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

10

O-RING (2H9)

93210-14369-00

$7.49

11

GASKET, CRANKCASE COVER 2

8GC-15461-00-00

$17.99

12

PIN, DOWEL

99530-08012-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$5.60

14

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$10.49

15

CLAMP

90465-10048-00

Unavailable
