- PZ50MPHL (VENTURE MP) 8GRM 2017
TRACK SUSPENSION 1

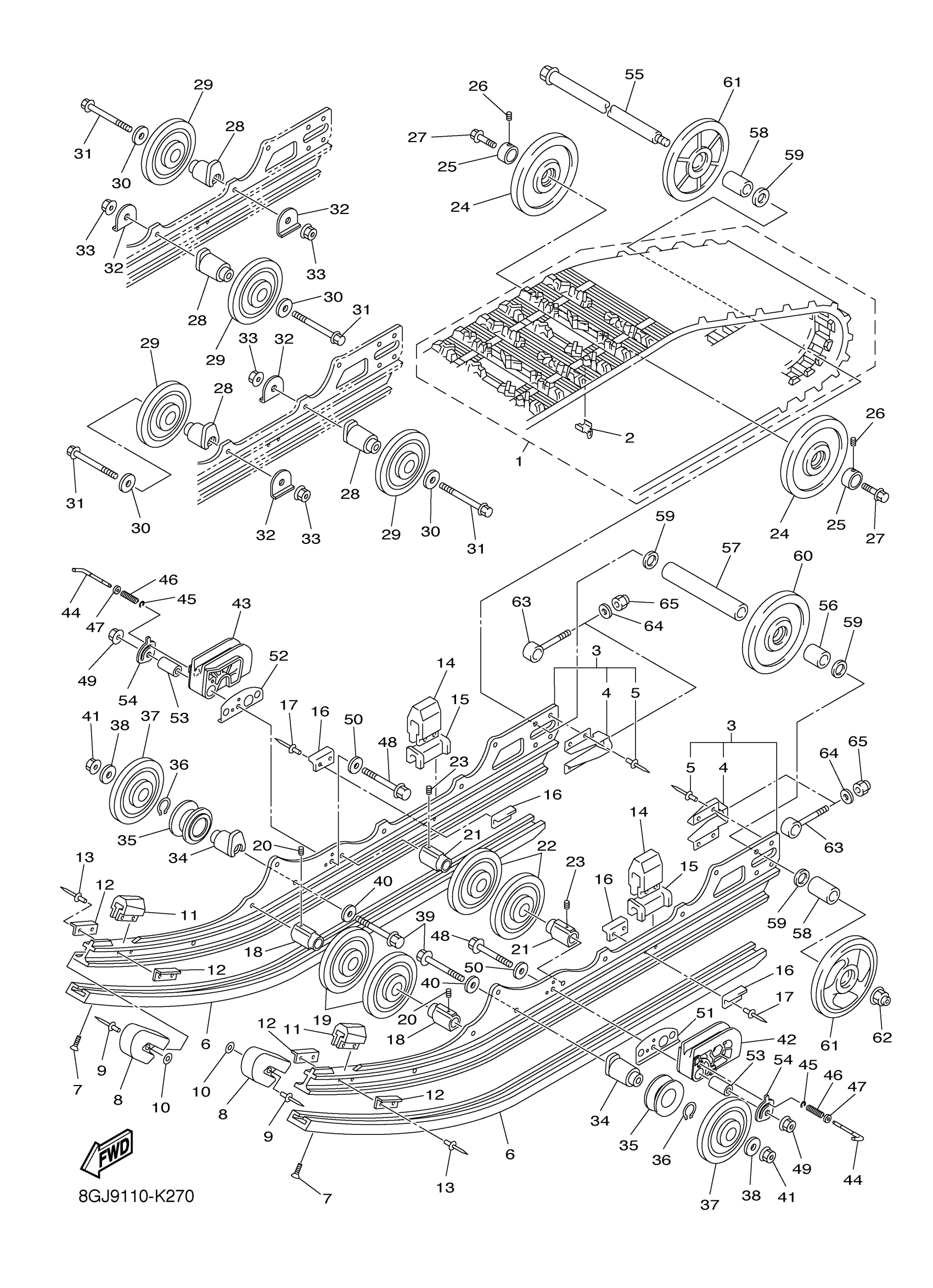

Yamaha PZ50MPHL (VENTURE MP) 8GRM 2017 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8GR-47110-01-00
Unavailable
2
METAL, SLIDE
8HR-47115-09-00
$16.99
3
FRAME, SLIDING
8ET-W4741-11-00
Unavailable
4
BRACKET
8DM-4741B-00-00
$45.99
5
RIVET
8V0-47468-00-00
$10.49
6
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
7
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
8
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
9
RIVET BLIND
90267-48194-00
$3.28
10
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
11
DAMPER 1
8ES-47456-00-00
$6.99
12
PLATE, DAMPER
8K2-47458-01-00
$4.77
13
RIVET, BLIND
90267-48199-00
$3.76
14
DAMPER 2
8CM-47457-00-00
$16.49
15
SPACER
8CM-47341-00-00
$16.49
16
PLATE, DAMPER
8AX-47458-00-00
Unavailable
17
RIVET, BLIND
90267-48199-00
$3.76
18
COLLAR
8ES-47319-01-00
Unavailable
19
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
COLLAR
8ES-47319-01-00
Unavailable
22
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
23
BOLT, SET (8K2)
90113-06039-00
Unavailable
24
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
25
COLLAR 1
8FS-47365-00-00
Unavailable
26
BOLT, SET (8K2)
90113-06039-00
Unavailable
27
BOLT
90109-10032-00
Unavailable
28
BRACKET 7
8ES-47419-00-00
Unavailable
29
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
30
WASHER, PLATE
90201-101U2-00
Unavailable
31
BOLT, FLANGE
95812-10080-00
Unavailable
32
WASHER, CLAW
90214-10003-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
BRACKET 7
8ES-47419-10-00
Unavailable
35
HOOK 1
8ET-47446-00-00
Unavailable
36
CIRCLIP(6U2)
93410-35M10-00
Unavailable
37
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
38
WASHER, PLATE
90201-101U2-00
Unavailable
39
BOLT, FLANGE
95812-10080-00
Unavailable
40
WASHER, PLATE
90201-10052-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
Unavailable
42
SPRING, OUTSIDE 1
8ET-47435-10-00
Unavailable
43
SPRING, OUTSIDE 2
8ET-47436-10-00
Unavailable
44
PIN 1
8ET-47449-10-00
Unavailable
45
CIRCLIP (EU0)
99080-04600-00
Unavailable
46
SPRING, CONPRESSION (7R4)
90501-08665-00
Unavailable
47
WASHER 6464337400
90201-06040-00
Unavailable
48
BOLT, FLANGE
90105-10029-00
Unavailable
49
NUT, S/L FLANGE
95602-10200-00
Unavailable
50
WASHER, PLATE
90201-10052-00
Unavailable
51
WASHER 1
8ET-47374-10-00
Unavailable
52
WASHER 2
8ET-47375-10-00
Unavailable
53
COLLAR(47X)
90387-106K8-00
Unavailable
54
WASHER, LOCK
8ET-47347-00-00
Unavailable
55
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
56
COLLAR
90387-20015-00
Unavailable
57
COLLAR
90387-20016-00
Unavailable
58
COLLAR
90387-20019-00
Unavailable
59
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
60
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
61
WEIGHT
8EK-47550-11-00
Unavailable
62
NUT, U FLANGE
95602-14200-00
Unavailable
63
COLLAR 3
8DM-47479-00-00
Unavailable
64
WASHER, PLATE
92990-10600-00
Unavailable
65
NUT, NYLON
95707-10300-00
Unavailable
