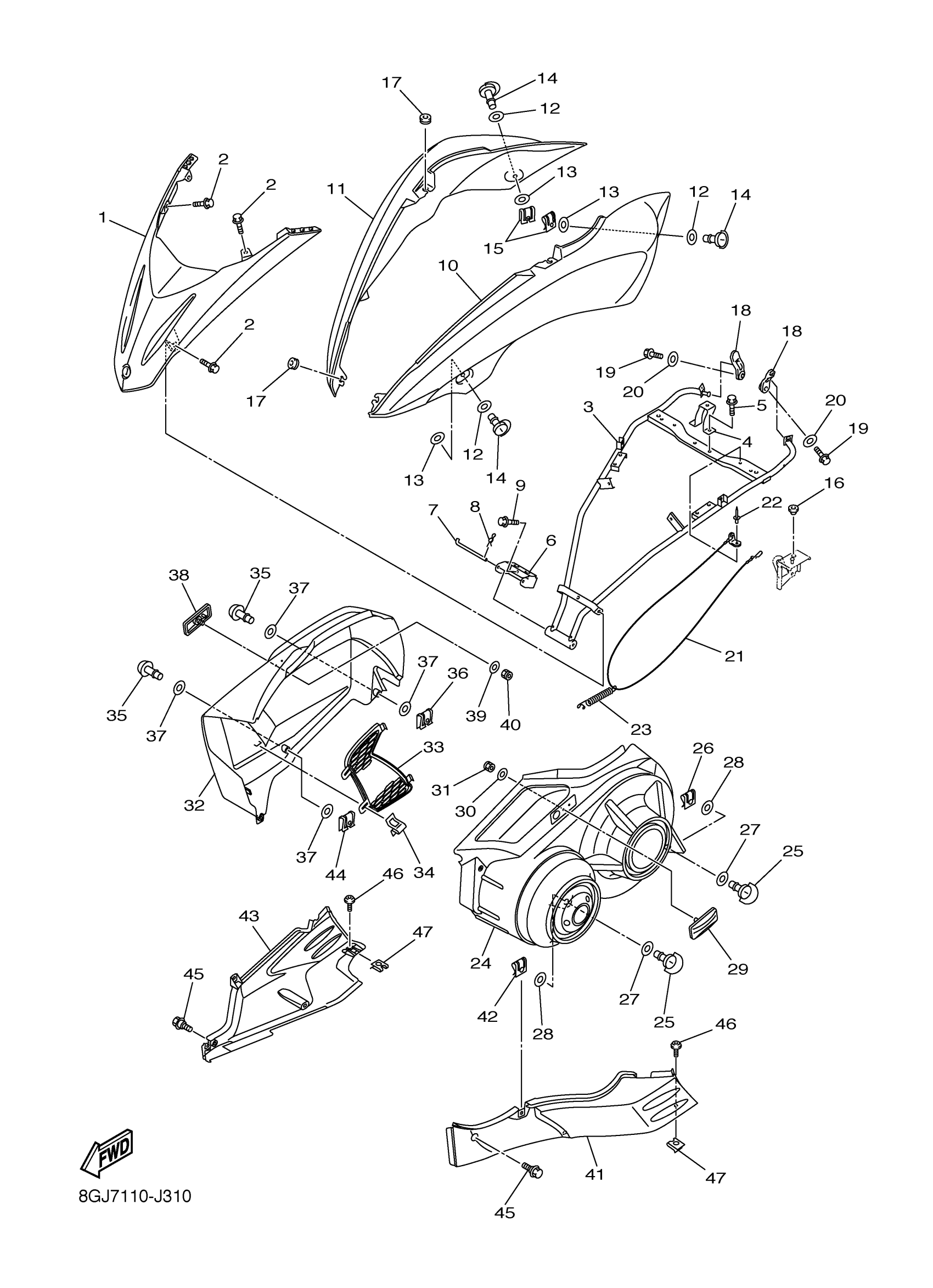

Yamaha PZ50MPHL (VENTURE MP) 8GRM 2017 SHROUD Diagram
#
1
SHROUD
8GJ-77111-00-P6
Unavailable
2
BOLT
90109-06220-00
$10.49
3
HINGE 1
8GJ-77145-00-00
Unavailable
4
STAY 1
8GJ-77125-00-00
Unavailable
5
BOLT, FLANGE
95817-06012-00
$1.43
6
HINGE 2
8GJ-77146-00-00
Unavailable
7
PIN
8GJ-77384-00-00
Unavailable
8
CLIP (7R4)
90468-12120-00
$8.49
9
BOLT, FLANGE
95817-06016-00
$2.75
10
PANEL 1
8GJ-2835U-00-00
Unavailable
11
PANEL 2
8GJ-2835V-00-00
Unavailable
12
WASHER, SPECIAL 1
8HG-21757-00-00
$1.07
13
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
14
HEAD
8HG-28386-00-00
$31.99
15
PLATE, SPRING
4XV-2177L-01-00
$6.99
16
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
17
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
18
BODY, LATCH 1
8GJ-77171-00-00
Unavailable
19
BOLT
90109-085G1-00
Unavailable
20
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
21
STOPPER, SHROUD
8GJ-77118-00-00
Unavailable
22
RIVET, BLIND(3LC)
90267-48147-00
Unavailable
23
CLAMP, ROD
89A-77159-00-00
Unavailable
24
HOOD 3
8GC-2197H-00-00
Unavailable
25
HEAD
8HG-28386-00-00
$31.99
26
PLATE, SPRING
4XV-2177L-01-00
$6.99
27
WASHER, SPECIAL 1
8HG-21757-00-00
$1.07
28
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
29
PLATE 1
8FR-77185-00-00
Unavailable
30
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
31
NUT, NYLON
95707-05300-00
Unavailable
32
HOOD 4
8GC-2198H-01-00
Unavailable
33
LOUVER 4
8GC-77134-00-00
Unavailable
34
CLIP
90468-06001-00
Unavailable
35
HEAD
5PW-28386-00-00
Unavailable
36
PLATE, SPRING
5PW-2177L-01-00
Unavailable
37
WASHER, SPECIAL 1
8HW-21757-00-00
Unavailable
38
PLATE 1
8FR-77185-00-00
Unavailable
39
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
40
NUT, NYLON
95707-05300-00
Unavailable
41
FRAME UNDER 1
8GC-2196A-00-00
Unavailable
42
PLATE, SPRING
4XV-2177L-01-00
$6.99
43
FRAME, UNDER 2
8GC-2196E-00-00
Unavailable
44
PLATE, SPRING
5PW-2177L-01-00
Unavailable
45
BOLT
90109-06220-00
$10.49
46
SCREW
90149-06105-00
Unavailable
47
NUT, SPRING
90183-06100-00
Unavailable
