Description

Price

1

BUMPER, FRONT 1

8GR-77511-10-00

Unavailable

2

BOLT, FLANGE

95814-08016-00

$9.49

3

BUMPER, REAR 1

8GJ-77541-20-00

Unavailable

4

BOLT, FLANGE

95814-08016-00

$9.49

5

RIVET, BLIND

90267-47195-00

$3.88

6

FLAP

8GJ-77595-00-00

$23.99

7

RIVET, BLIND(8CH)

90267-47187-00

$2.34

8

FLAP

8GW-77595-00-00

Unavailable

9

RIVET, BLIND(8CH)

90267-47187-00

$2.34

10

REAR BUMPER COMP.

8GJ-77540-00-00

Unavailable

11

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

12

COVER, 3

8GJ-77563-01-00

Unavailable

13

COVER, 4

8GJ-77564-01-00

Unavailable

14

BOLT

90109-06220-00

$10.49

15

PROTECTOR 5

8GR-77555-00-00

Unavailable

16

SCREW(2XF)

90149-06263-00

Unavailable

17

PROTECTOR 6

8GR-77556-00-00

Unavailable

18

RIVET, BLIND(8CH)

90267-47187-00

$2.34

19

LABEL, PULLING LOAD LIMIT

8GS-2817S-E0-00

Unavailable

20

BRACKET, HITCH 2

84R-77592-00-00

Unavailable

21

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

22

LABEL, WARNING 5

8JT-77765-E0-00

Unavailable

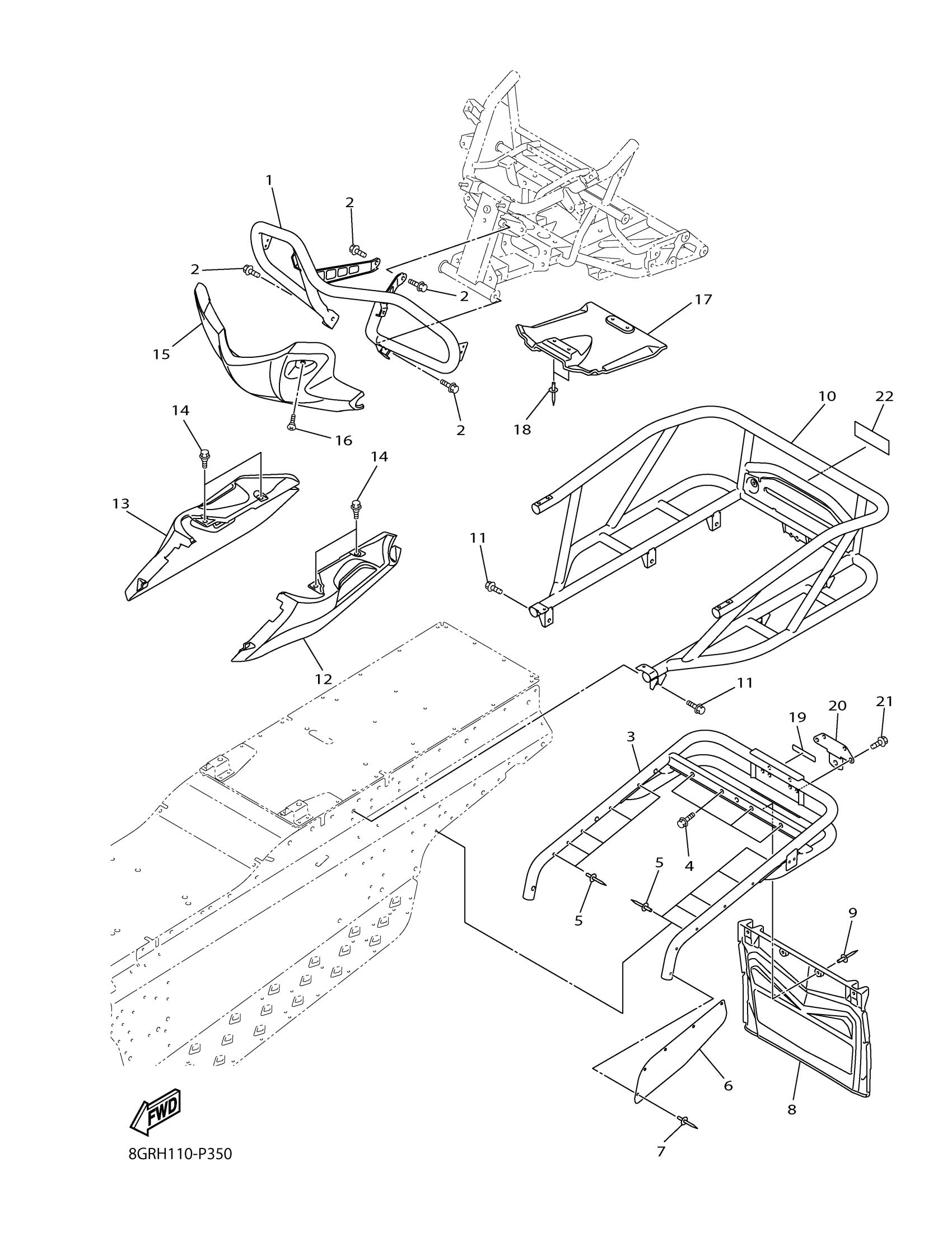

Yamaha PZ50MPFL (VENTURE MULTI PURPOSE) 8GRH 2015 BUMPER Diagram

BUMPER, FRONT 1

BOLT, FLANGE

BUMPER, REAR 1

BOLT, FLANGE

RIVET, BLIND

FLAP

RIVET, BLIND(8CH)

FLAP

RIVET, BLIND(8CH)

REAR BUMPER COMP.

BOLT, FLANGE(8AB)

COVER, 3

COVER, 4

BOLT

PROTECTOR 5

SCREW(2XF)

PROTECTOR 6

RIVET, BLIND(8CH)

LABEL, PULLING LOAD LIMIT

BRACKET, HITCH 2

BOLT, FLANGE(8AB)

LABEL, WARNING 5
