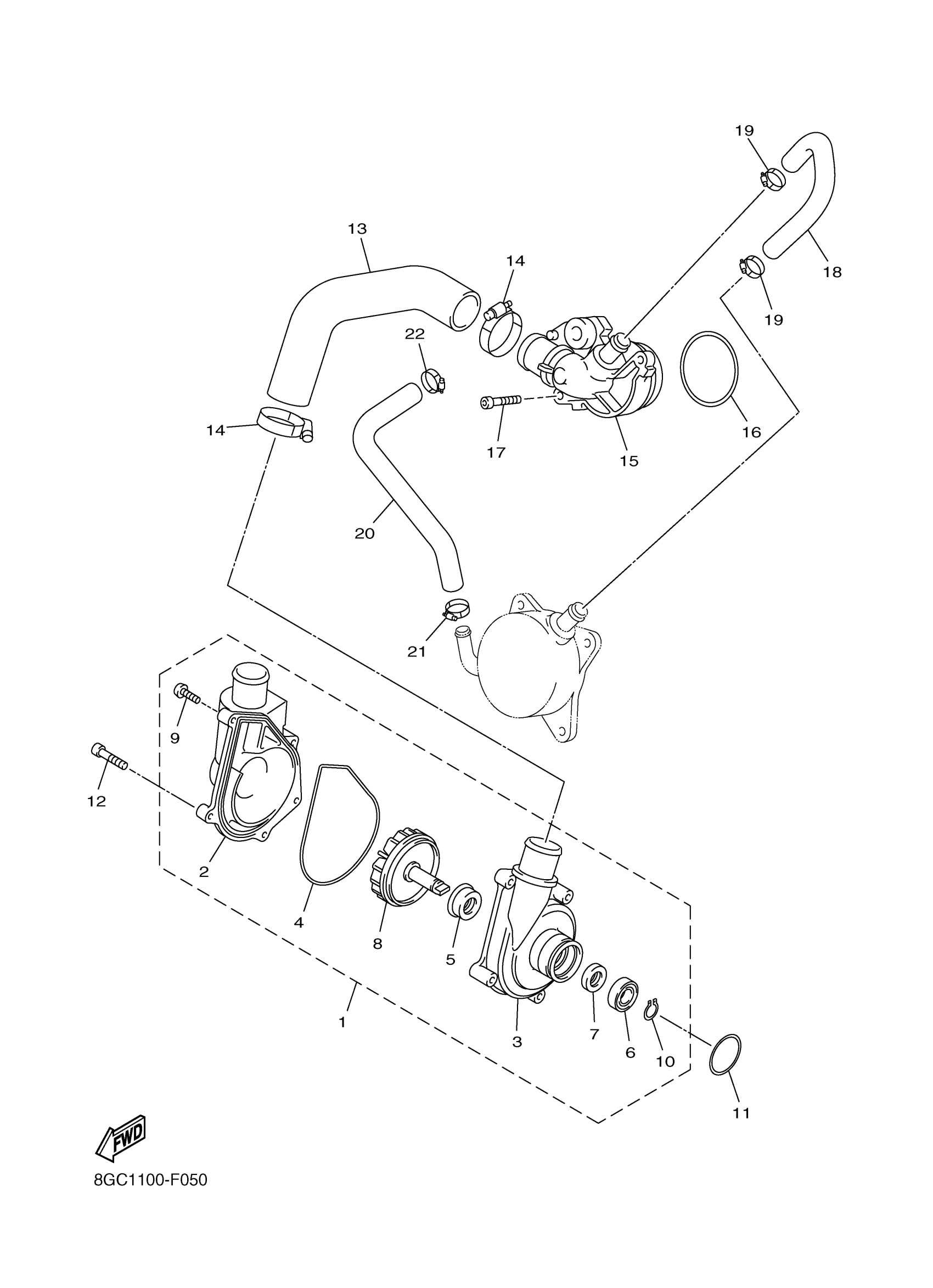

Yamaha PZ50MPEL (VENTURE MULTI PURPOSE) 8GRF 2014 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

8GC-12420-00-00

$183.56

2

COVER, HOUSING

8GC-12422-00-00

Unavailable

3

HOUSING, WATER PUMP

8GC-12421-00-00

Unavailable

4

GASKET, HOUSING COVER 1

8GC-12427-00-00

Unavailable

5

SEAL, MECHANICAL

8ES-12438-00-00

$37.04

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$30.52

7

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

$9.25

8

IMPELLER SHAFT ASSY

8GC-12450-00-00

Unavailable

9

SCREW, PAN HEAD

98580-06016-00

$2.88

10

CIRCLIP(10W)

99009-10400-00

$3.65

11

O-RING(1WT)

93210-30734-00

$11.61

12

BOLT(J17)

91312-06035-00

$2.21

13

HOSE 8

8GC-12552-00-00

Unavailable

14

HOSE CLAMP ASSY(3GM)

90450-38040-00

$14.71

15

JOINT 1

8GC-12469-00-00

Unavailable

16

O-RING (24W)

93210-56589-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

18

HOSE 5

8GC-12588-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-18M09-00

$9.82

20

HOSE 6

8GC-12589-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-18M09-00

$9.82

22

HOSE CLAMP ASSY

90450-18M09-00

$9.82
