Description

Price

1

SINGLE SEAT ASSY

8GJ-24710-10-00

Unavailable

2

SEAT COVER COMP.

8GJ-2470F-11-00

$378.99

3

BOLT, FLANGE

95814-08016-00

$9.49

4

TANDEM SEAT ASSY

8GJ-24750-11-00

$569.99

5

SEAT COVER COMP. ,2

8GJ-2470H-11-00

Unavailable

6

NUT, FLANGE

95702-06500-00

$2.39

7

SEAT BACK ASSY

8GJ-24790-10-00

Unavailable

8

SEMI-DOUBLE SEAT

8GJ-24771-11-00

$475.99

9

BOLT, FLANGE

95822-08014-00

$8.49

10

GROMMET

8GJ-24742-00-00

$7.49

11

BOLT, FLANGE

95822-08014-00

$8.49

12

ASSIST, GRIP

8GJ-2474A-00-00

Unavailable

13

ASSIST,GRIP 2

8GJ-2474W-00-00

Unavailable

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

BOLT, BUTTON HEAD

92012-06020-00

$8.49

16

COVER 1

8GJ-2842M-00-00

Unavailable

17

ASSIST GRIP WARMER ASSY 1

8GR-2474B-00-00

Unavailable

18

SWITCH

8ET-82917-00-00

Unavailable

19

COVER 1

8GJ-24845-00-00

Unavailable

20

BOLT

90109-06220-00

Unavailable

21

COVER 2

8GJ-24846-00-00

Unavailable

22

COVER 3

8GJ-24844-00-00

Unavailable

23

BOLT

90109-06220-00

Unavailable

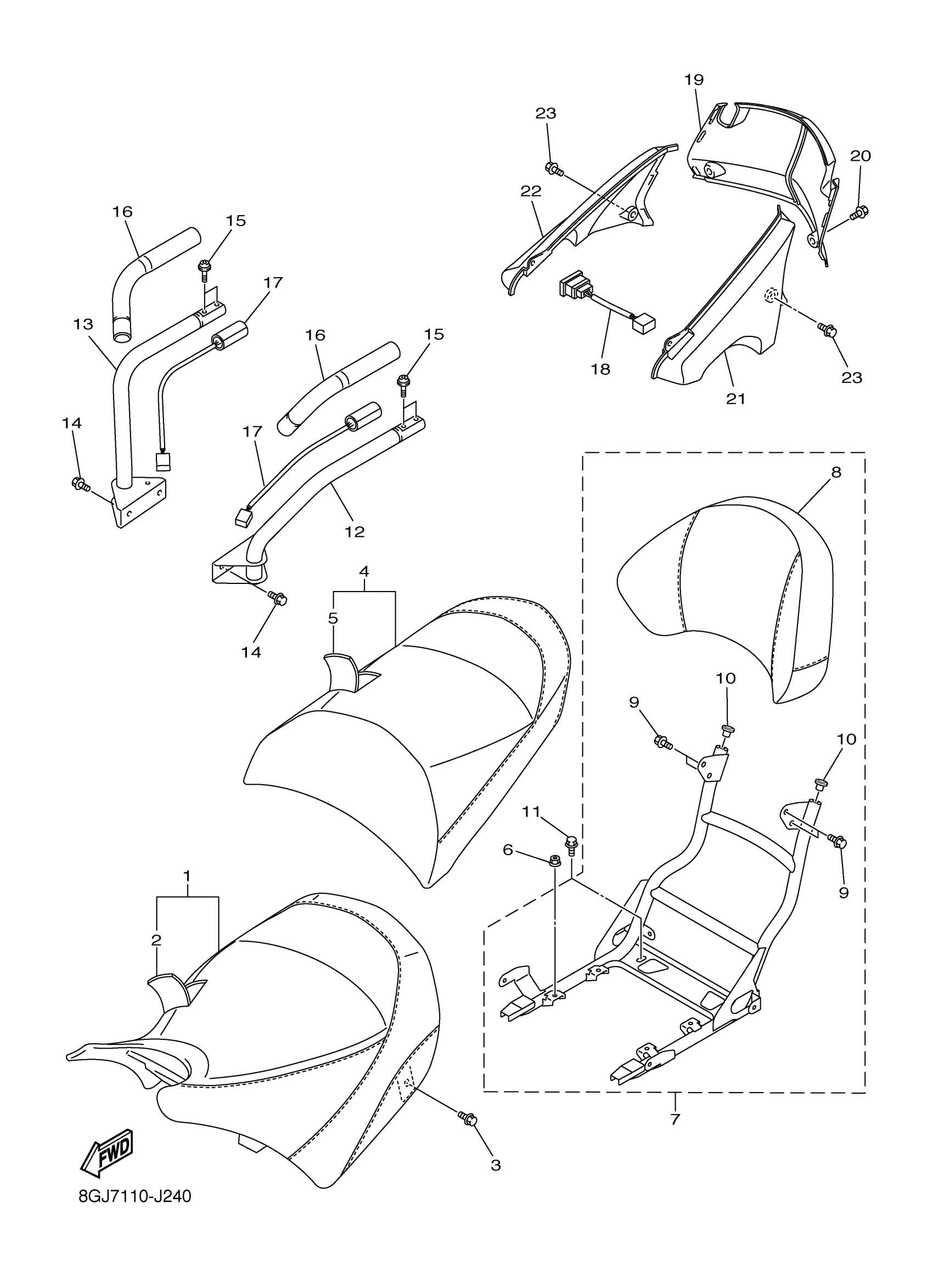

Yamaha PZ50MPEL (VENTURE MULTI PURPOSE) 8GRF 2014 SEAT Diagram

SINGLE SEAT ASSY

SEAT COVER COMP.

BOLT, FLANGE

TANDEM SEAT ASSY

SEAT COVER COMP. ,2

NUT, FLANGE

SEAT BACK ASSY

SEMI-DOUBLE SEAT

BOLT, FLANGE

GROMMET

BOLT, FLANGE

ASSIST, GRIP

ASSIST,GRIP 2

BOLT, FLANGE(8AB)

BOLT, BUTTON HEAD

COVER 1

ASSIST GRIP WARMER ASSY 1

SWITCH

COVER 1

BOLT

COVER 2

COVER 3

BOLT
