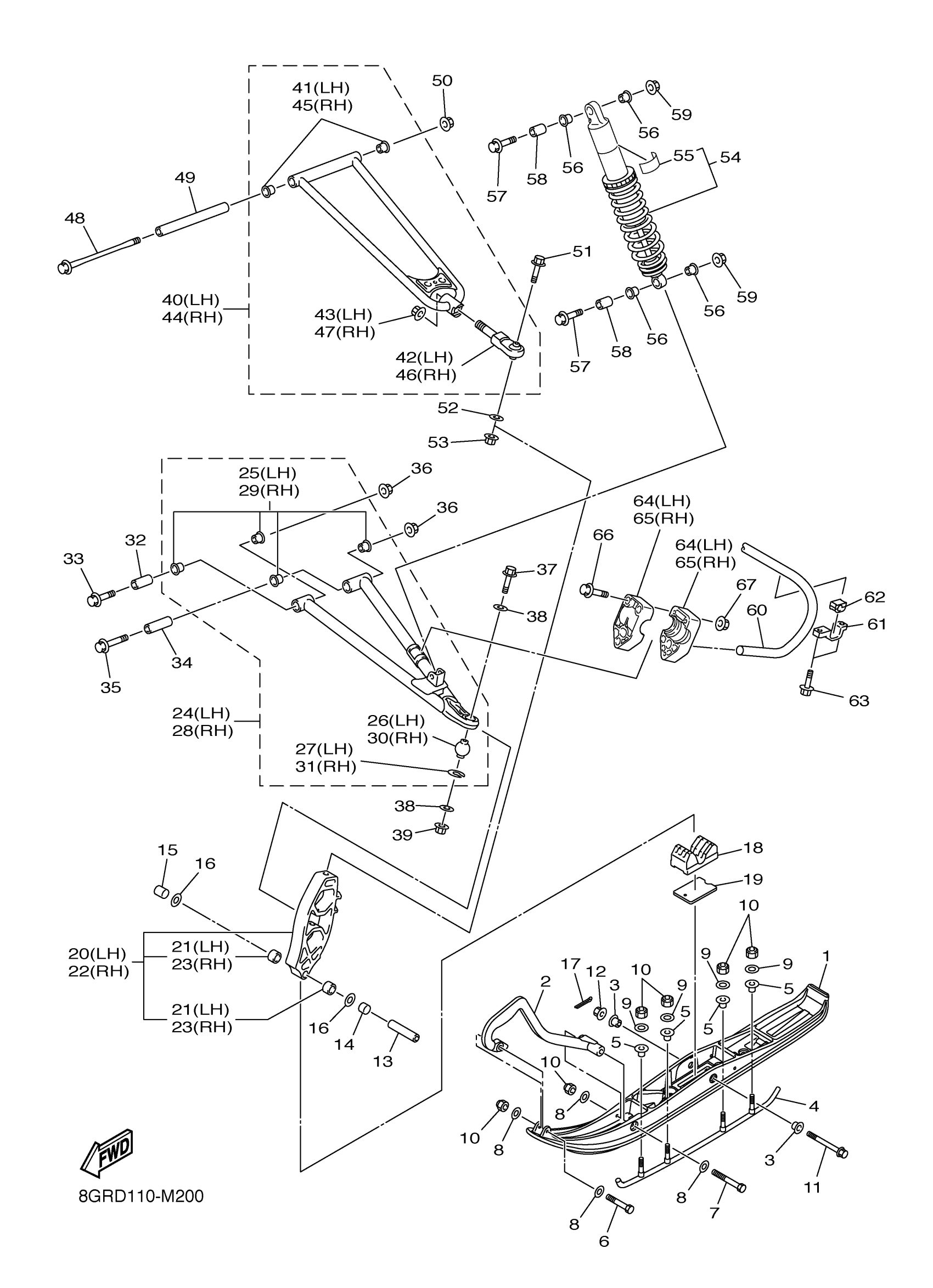

Yamaha PZ50MPDR (VENTURE MULTI PURPOSE) 8GRD 2013 SKI Diagram
#
1
SKI 1
8FM-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
SKI RUNNER KIT
SMA-F3731-GP-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10410-00
$14.99
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-10061-00
$16.99
14
COLLAR
90387-16017-00
$5.60
15
COLLAR
90387-16021-00
$30.99
16
WASHER, PLATE
90201-16022-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
STOPPER 1
8GR-23743-00-00
Unavailable
19
STOPPER 2
8FM-23744-00-00
Unavailable
20
STEERING KNUCKLE ASSY (LEFT)
8GK-23501-10-00
Unavailable
21
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
22
STEERING KNUCKLE ASSY (RIGHT)
8GK-23502-10-00
Unavailable
23
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
24
FRONT LOWER ARM COMP. (LEFT)
8GK-23570-C0-00
Unavailable
25
BUSH, SOLID
90381-16003-00
Unavailable
26
BALL JOINT 2
8GK-23579-01-00
Unavailable
27
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
28
FRONT LOWER ARM COMP. (RIGHT)
8GK-23580-C0-00
Unavailable
29
BUSH, SOLID
90381-16003-00
Unavailable
30
BALL JOINT 2
8GK-23579-01-00
Unavailable
31
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
32
COLLAR
90387-10093-00
Unavailable
33
BOLT, FLANGE
90105-10211-00
Unavailable
34
COLLAR
90387-10074-00
Unavailable
35
BOLT, FLANGE
90105-10212-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
$4.82
37
BOLT, FLANGE
90105-10210-00
Unavailable
38
WASHER, PLATE
90201-10051-00
Unavailable
39
NUT, S/L FLANGE
95602-10200-00
$4.82
40
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
Unavailable
41
BUSH, SOLID
90381-15003-00
Unavailable
42
BALL JOINT 1
8GK-23549-00-00
Unavailable
43
NUT, U FLANGE
95602-14200-00
Unavailable
44
FRONT UPPER ARM COMP. (RIGHT)
8GK-23550-C0-00
Unavailable
45
BUSH, SOLID
90381-15003-00
Unavailable
46
BALL JOINT 1
8GK-23549-00-00
Unavailable
47
NUT, U FLANGE
95602-14200-00
Unavailable
48
BOLT, FLANGE
90105-10213-00
Unavailable
49
COLLAR
90387-10073-00
Unavailable
50
NUT, S/L FLANGE
95602-10200-00
$4.82
51
BOLT
91312-10045-00
Unavailable
52
WASHER, PLATE
90201-10052-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
$4.82
54
ABSORBER ASSY 1
8GR-2376A-30-00
Unavailable
55
LABEL, WARNING
4AA-22259-60-00
Unavailable
56
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
57
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
58
COLLAR (8U7)
90387-105G5-00
Unavailable
59
NUT, S/L FLANGE
95602-10200-00
$4.82
60
BAR, STABILIZER FRONT
8GK-2386E-10-00
Unavailable
61
HOLDER, STABILIZER FRONT
8GK-2386C-00-00
Unavailable
62
BUSH, STABILIZER FRONT
8GK-2386G-10-00
Unavailable
63
BOLT, FLANGE
95812-08020-00
Unavailable
64
JOINT, STABILIZER 1
8GK-2385L-10-00
Unavailable
65
JOINT, STABILIZER 2
8GK-2385M-10-00
Unavailable
66
BOLT, FLANGE
95817-06040-00
Unavailable
67
NUT, U FLANGE
95604-06200-00
Unavailable
