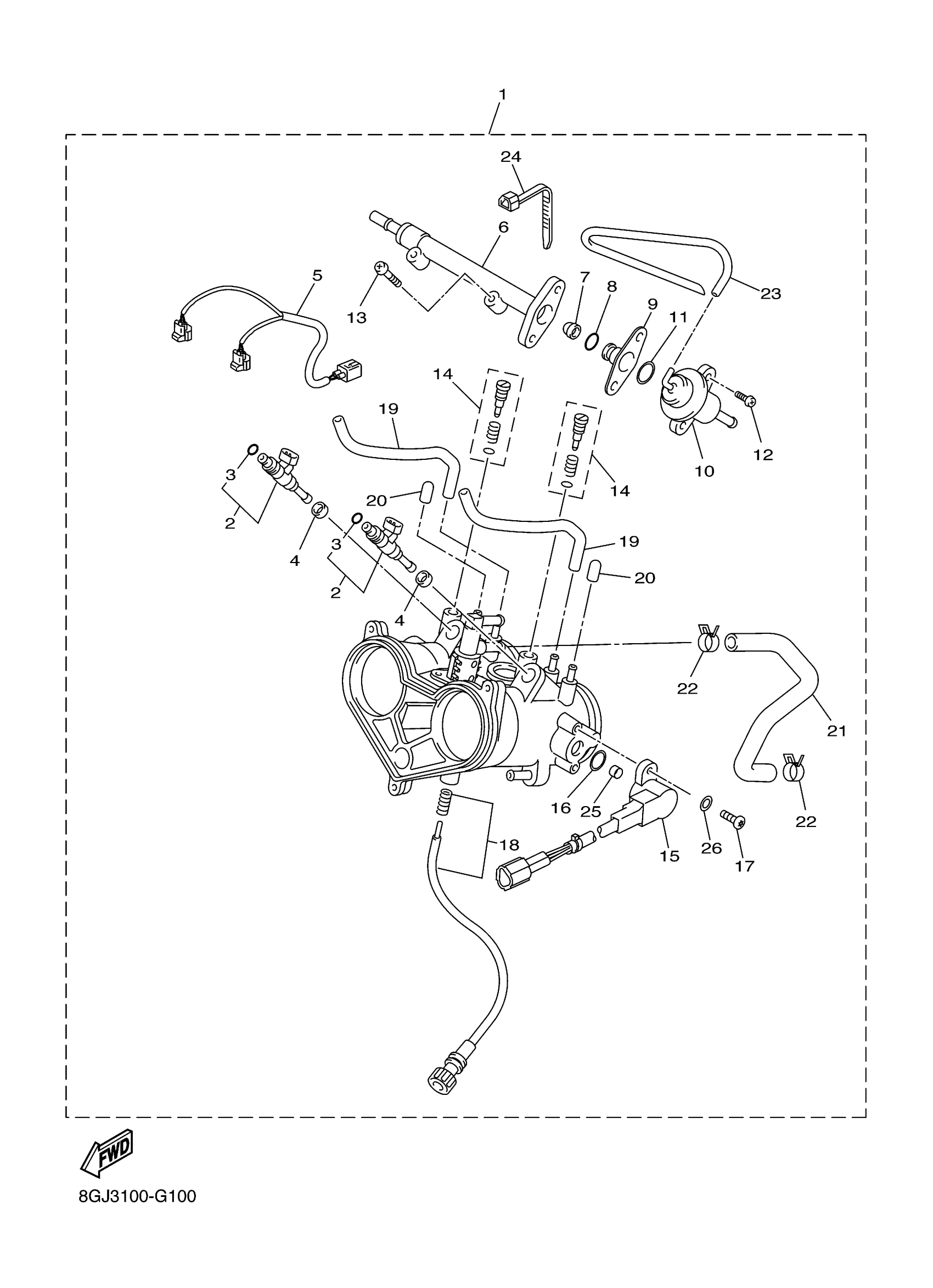

Yamaha PZ50MPDR (VENTURE MULTI PURPOSE) 8GRD 2013 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8GC-13750-12-00

Unavailable

2

INJECTOR ASSY

8GC-13761-00-00

$257.99

3

O-RING

8GC-13769-00-00

$16.99

4

GASKET

90430-09002-00

$11.49

5

EXTENSION, WIRE HARNESS

8GC-82386-10-00

Unavailable

6

PIPE

8GC-13938-00-00

Unavailable

7

FILTER COMP

65L-13905-00-00

Unavailable

8

O-RING

8GC-13769-00-00

$16.99

9

SEAT, INTAKE VALVE 1

8GC-13661-00-00

Unavailable

10

REGULATOR, PRESSURE

8GC-13906-00-00

Unavailable

11

O-RING

8GC-1416A-00-00

Unavailable

12

SCREW, PAN HEAD

8GC-14325-00-00

$3.28

13

SCREW, ROD

8GC-14486-00-00

$8.49

14

AIR SCREW SET

8GC-14104-00-00

Unavailable

15

THROTTLE SENSOR ASSY

5BE-85885-10-00

$466.99

16

O-RING

4TV-14562-00-00

Unavailable

17

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

18

ADJUST SCREW SET

8GC-14503-00-00

Unavailable

19

PIPE

8GC-14349-00-00

Unavailable

20

CAP

8GC-14169-00-00

Unavailable

21

HOSE

8GC-14987-00-00

Unavailable

22

CLIP

8GC-13577-00-00

Unavailable

23

. PIPE 1

8GC-14348-00-00

Unavailable

24

BAND

8GC-13575-00-00

Unavailable

25

COLLAR

4TV-14534-00-00

Unavailable

26

WASHER(JF2)

92907-04600-00

Unavailable
