- PZ50GTW (PHAZER GT) 8GK1 2007
TRACK DRIVE 2

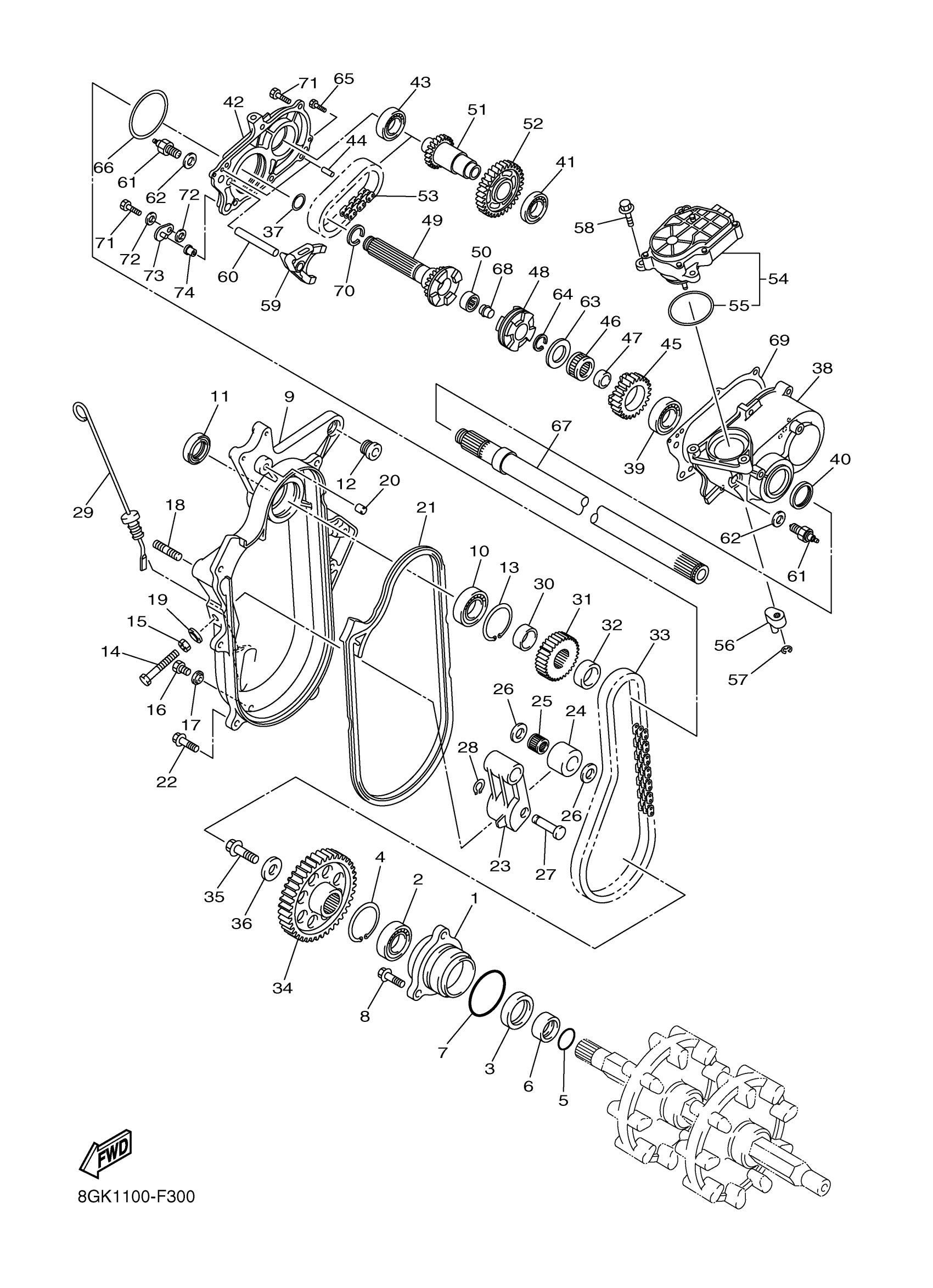

Yamaha PZ50GTW (PHAZER GT) 8GK1 2007 TRACK DRIVE 2 Diagram
#
1
HOUSING, BEARING 2
8GC-47633-00-00
Unavailable
2
BEARING
93306-20592-00
$59.99
3
OIL SEAL
93102-35010-00
$23.99
4
CIRCLIP(26H)
99009-52500-00
$12.49
5
O-RING (169)
93210-25071-00
$8.49
6
COLLAR(8CJ)
90387-2508C-00
$46.99
7
O-RING
93210-62269-00
Unavailable
8
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
9
CAP, HOUSING
8GC-47543-01-00
$238.99
10
BEARING(1FF)
93306-00519-00
$36.99
11
OIL SEAL (697)
93102-32M07-00
$18.99
12
NUT(8CJ)
90179-10679-00
Unavailable
13
CIRCLIP(48Y)
99009-47500-00
$9.49
14
BOLT
90101-10026-00
$3.28
15
NUT(3BM)
95314-10600-00
$2.39
16
BOLT, HEXAGON
97017-08016-00
Unavailable
17
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
18
BOLT, STUD 3
95617-08618-00
Unavailable
19
WASHER SEAL 256111730200
90210-10004-00
Unavailable
20
PIN, DOWEL
91811-10005-00
Unavailable
21
RING, HOUSING
8GC-47558-01-00
Unavailable
22
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
23
HOLDER
8GC-47613-00-00
Unavailable
24
WHEEL
8FA-47612-00-00
Unavailable
25
BEARING, CYLINDRICAL(1VJ)
93310-212R6-00
Unavailable
26
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
27
PIN
90249-12003-00
Unavailable
28
CIRCLIP(10Y)
99009-12400-00
Unavailable
29
LEVEL, OIL
8GC-47546-00-00
Unavailable
30
COLLAR
90387-25020-00
Unavailable
31
SPROCKET, CHAIN DRIVE
8GC-17682-00-00
Unavailable
32
COLLAR(85T)
90387-250V9-00
Unavailable
33
CHAIN
94591-63080-00
Unavailable
34
SPROCKET, CHAIN DRIVEN
8GC-47587-10-00
Unavailable
35
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
36
WASHER, PLATE (856)
90201-10321-00
Unavailable
37
O-RING
93210-20001-00
Unavailable
38
CASE 1
8GJ-46291-00-00
Unavailable
39
BEARING(1FF)
93306-00519-00
$36.99
40
OIL SEAL (27X36X6-7A9)
93102-27169-00
Unavailable
41
BEARING
93316-00404-00
Unavailable
42
CASE 2
8GJ-46292-00-00
Unavailable
43
BEARING (5Y1)
93306-00426-00
Unavailable
44
PIN, DOWEL
93605-17137-00
Unavailable
45
GEAR, REVERSE PINION 1
8GJ-17143-00-00
Unavailable
46
BEARING
93310-330S2-00
Unavailable
47
COLLAR
90387-25019-00
Unavailable
48
DOG, TRANSMISSION SHIFT
8GJ-17492-00-00
Unavailable
49
SHAFT
8GJ-17523-01-00
Unavailable
50
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
Unavailable
51
AXLE, COUNTER
8GJ-17431-00-00
Unavailable
52
GEAR, REVERSE WHEEL 1
8GJ-17243-00-00
Unavailable
53
CHAIN
94591-60044-00
Unavailable
54
SERVO MOTOR COMP
8GJ-4616A-01-00
Unavailable
55
O-RING
93210-50768-00
Unavailable
56
ARM, SHIFT
8GJ-46386-00-00
Unavailable
57
CIRCLIP (EU0)
99080-04600-00
Unavailable
58
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
59
FORK, SHIFT 1
8GJ-18511-00-00
Unavailable
60
SHAFT, SHIFTER
8GJ-18318-00-00
Unavailable
61
NEUTRAL SWITCH ASSY
3GD-82540-11-00
Unavailable
62
. GASKET
90430-10M11-00
Unavailable
63
WASHER PLATE 371115580000
90201-25291-00
Unavailable
64
CIRCLIP(JF7)
99009-25400-00
Unavailable
65
BOLT, SOCKET
91317-05016-00
Unavailable
66
. O-RING
93210-65M50-00
Unavailable
67
SHAFT, SECONDARY
8GK-17681-01-00
Unavailable
68
PLUG, OIL
82M-17699-00-00
Unavailable
69
GASKET 1
8GJ-15455-01-00
Unavailable
70
CIRCLIP(JF7)
99009-25400-00
Unavailable
71
BOLT, FLANGE
95817-06040-00
Unavailable
72
GASKET (4V2)
90430-06166-00
Unavailable
73
PIPE,OIL 1
8GJ-17021-01-00
Unavailable
74
GROMMET
90480-10012-00
Unavailable
