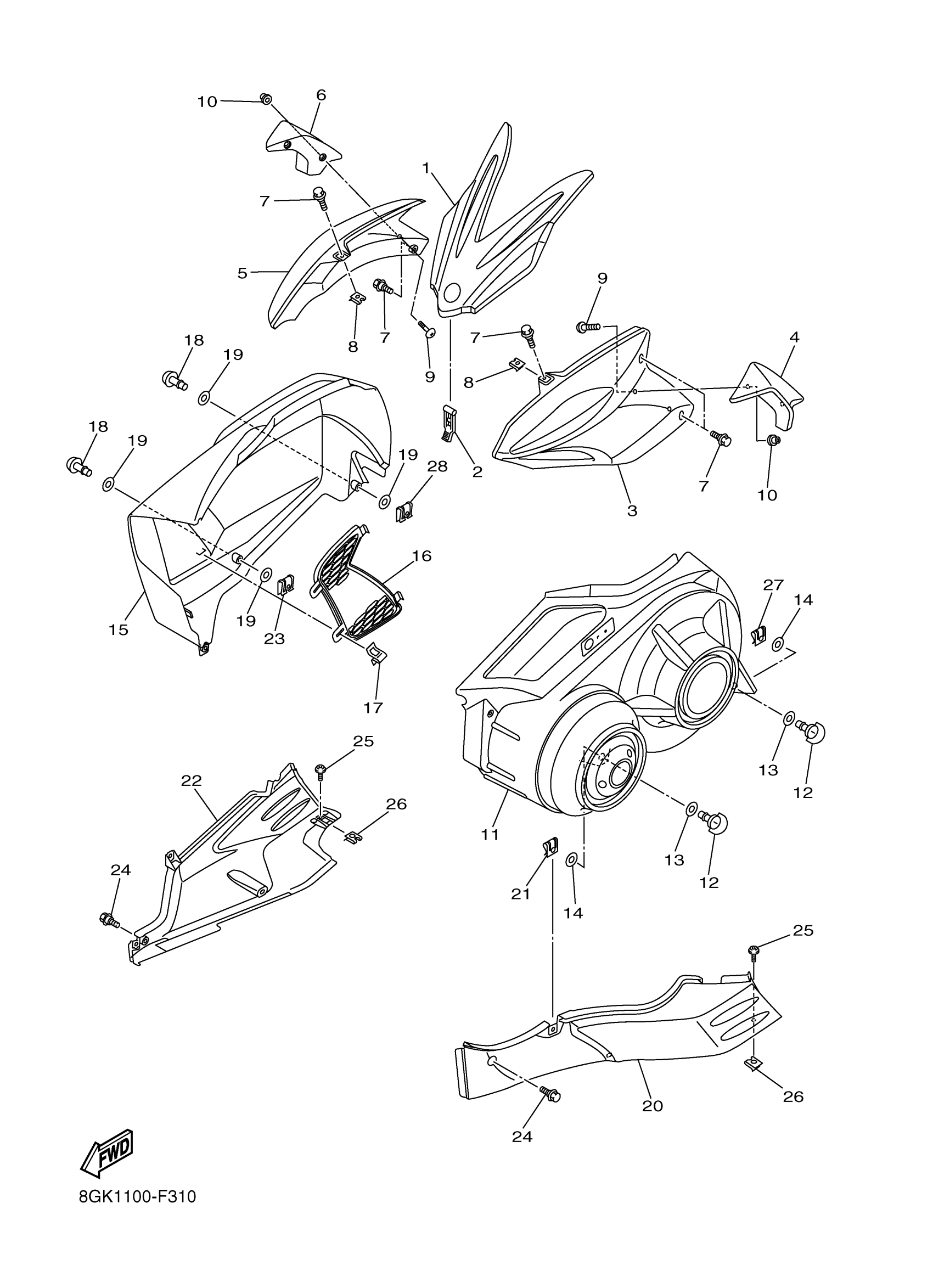

Yamaha PZ50GTW (PHAZER GT) 8GK1 2007 SHROUD Diagram

#

Description
Price

1

SHROUD

8GC-77111-00-00

$90.73

1

SHROUD

8GC-77111-10-00

Unavailable

1

SHROUD

8GC-77111-30-00

$91.03

2

BAND

59V-21646-00-00

$18.20

3

PANEL 1

8GK-2835U-00-00

$82.88

3

PANEL 1

8GK-2835U-10-00

$81.86

3

PANEL 1

8GK-2835U-30-00

$81.39

4

PROTECTOR, SIDE 1

8GK-77561-00-00

$42.89

5

PANEL 2

8GK-2835V-00-00

$82.88

5

PANEL 2

8GK-2835V-10-00

$81.86

5

PANEL 2

8GK-2835V-30-00

$81.39

6

PROTECTOR, SIDE 2

8GK-77562-00-00

$64.65

7

BOLT

90109-06220-00

$6.94

8

NUT, SPRING

90183-06100-00

$7.35

9

SCREW, BIND (8K2)

98902-05016-00

$1.15

10

NUT(1KT)

90179-05523-00

Unavailable

11

HOOD 3

8GC-2197H-00-00

Unavailable

11

HOOD 3

8GC-2197H-20-00

Unavailable

12

HEAD

3FV-28386-00-00

Unavailable

13

WASHER, SPECIAL 1

2TK-21757-00-00

Unavailable

14

WASHER, SPECIAL 1

5TJ-21757-00-00

Unavailable

15

HOOD 4

8GC-2198H-01-00

Unavailable

15

HOOD 4

8GC-2198H-21-00

Unavailable

16

LOUVER 4

8GC-77134-00-00

Unavailable

17

CLIP

90468-06001-00

Unavailable

18

HEAD

5PW-28386-00-00

Unavailable

19

WASHER, SPECIAL 1

2TK-21757-00-00

Unavailable

20

FRAME UNDER 1

8GC-2196A-00-00

Unavailable

20

FRAME UNDER 1

8GC-2196A-20-00

Unavailable

21

PLATE, SPRING

4XV-2177L-01-00

Unavailable

22

FRAME, UNDER 2

8GC-2196E-00-00

Unavailable

22

FRAME, UNDER 2

8GC-2196E-20-00

Unavailable

23

PLATE, SPRING

5PW-2177L-01-00

Unavailable

24

BOLT

90109-06220-00

$6.94

25

SCREW

90149-06105-00

Unavailable

26

NUT, SPRING

90183-06100-00

$7.35

27

PLATE, SPRING

4XV-2177L-01-00

Unavailable

28

PLATE, SPRING

5PW-2177L-01-00

Unavailable
