Description

Price

1

TOOL KIT

8GC-28100-00-00

Unavailable

2

BOX, TOOL

8GC-28173-00-00

Unavailable

3

LID

8GC-28185-00-00

$35.99

4

HOOK 1

8GC-2814H-00-00

Unavailable

5

RIVET, BLIND(8CR)

90267-47186-00

$2.97

6

. WASHER, PLAIN

92990-05200-00

Unavailable

7

PANEL, TOOL BOX

8GC-2817G-00-00

Unavailable

8

BOLT, FLANGE

95817-06016-00

$2.75

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

NUT, NYLON

95707-06300-00

$3.50

11

GROMMET

90480-13013-00

Unavailable

12

POUCH

4JG-28186-00-00

$7.99

13

GUARD, DRIVE

8GC-77311-00-00

Unavailable

14

PROTECTOR

8GC-77373-00-00

$3.71

15

RIVET, BLIND

90267-47195-00

$3.88

16

DAMPER 1

8CR-77319-00-00

Unavailable

17

PIN

8CR-77384-01-00

Unavailable

18

LABEL, WARNING 2

8BD-77762-00-00

Unavailable

19

LABEL 1

8ES-47578-00-00

Unavailable

20

LABEL, CAUTION

8GC-1417E-01-00

Unavailable

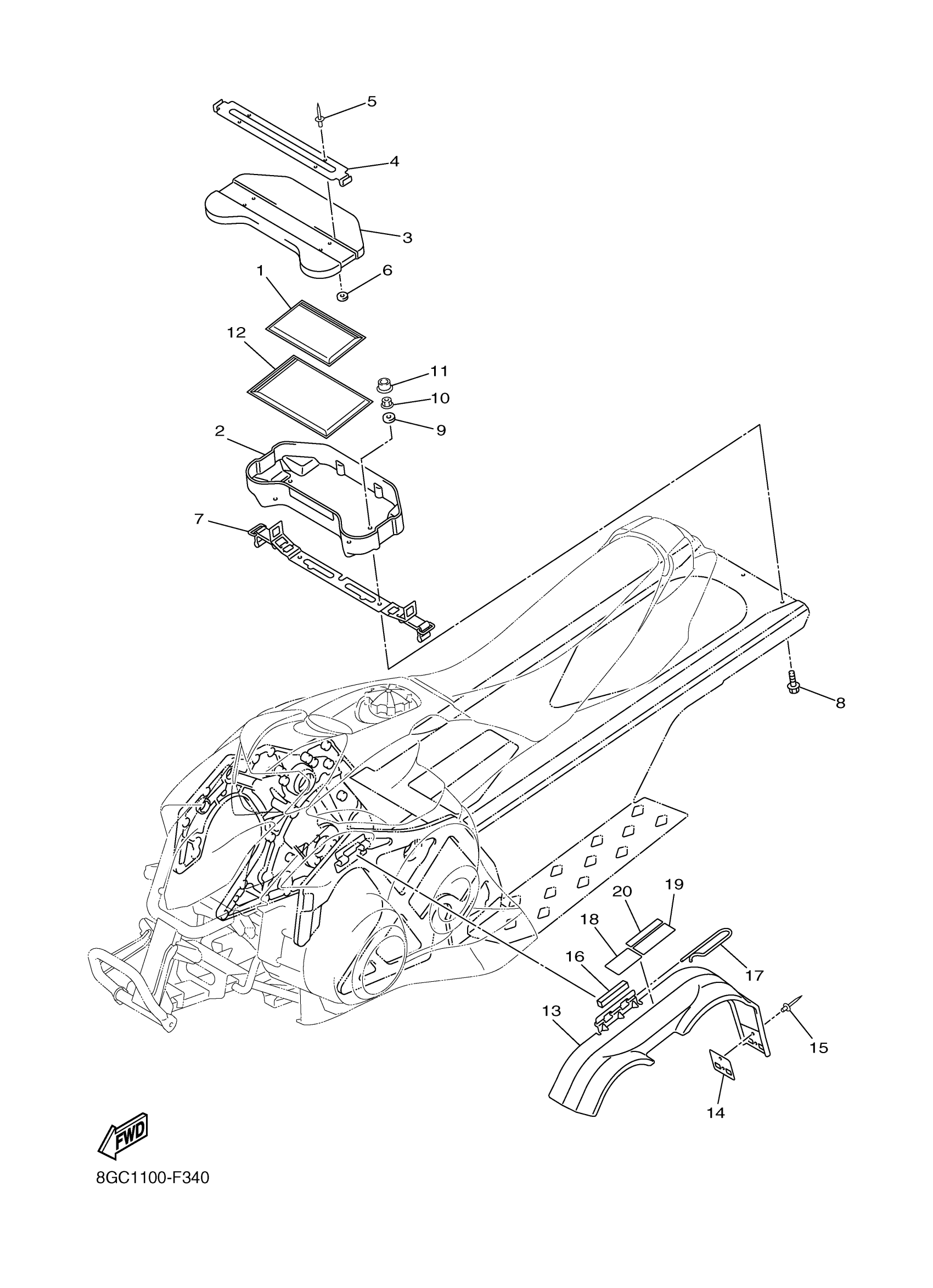

Yamaha PZ50GTW (PHAZER GT) 8GK1 2007 GUARD LUGGAGE BOX Diagram

TOOL KIT

BOX, TOOL

LID

HOOK 1

RIVET, BLIND(8CR)

. WASHER, PLAIN

PANEL, TOOL BOX

BOLT, FLANGE

YBS66-6 WASHER, PLAIN

NUT, NYLON

GROMMET

POUCH

GUARD, DRIVE

PROTECTOR

RIVET, BLIND

DAMPER 1

PIN

LABEL, WARNING 2

LABEL 1

LABEL, CAUTION
