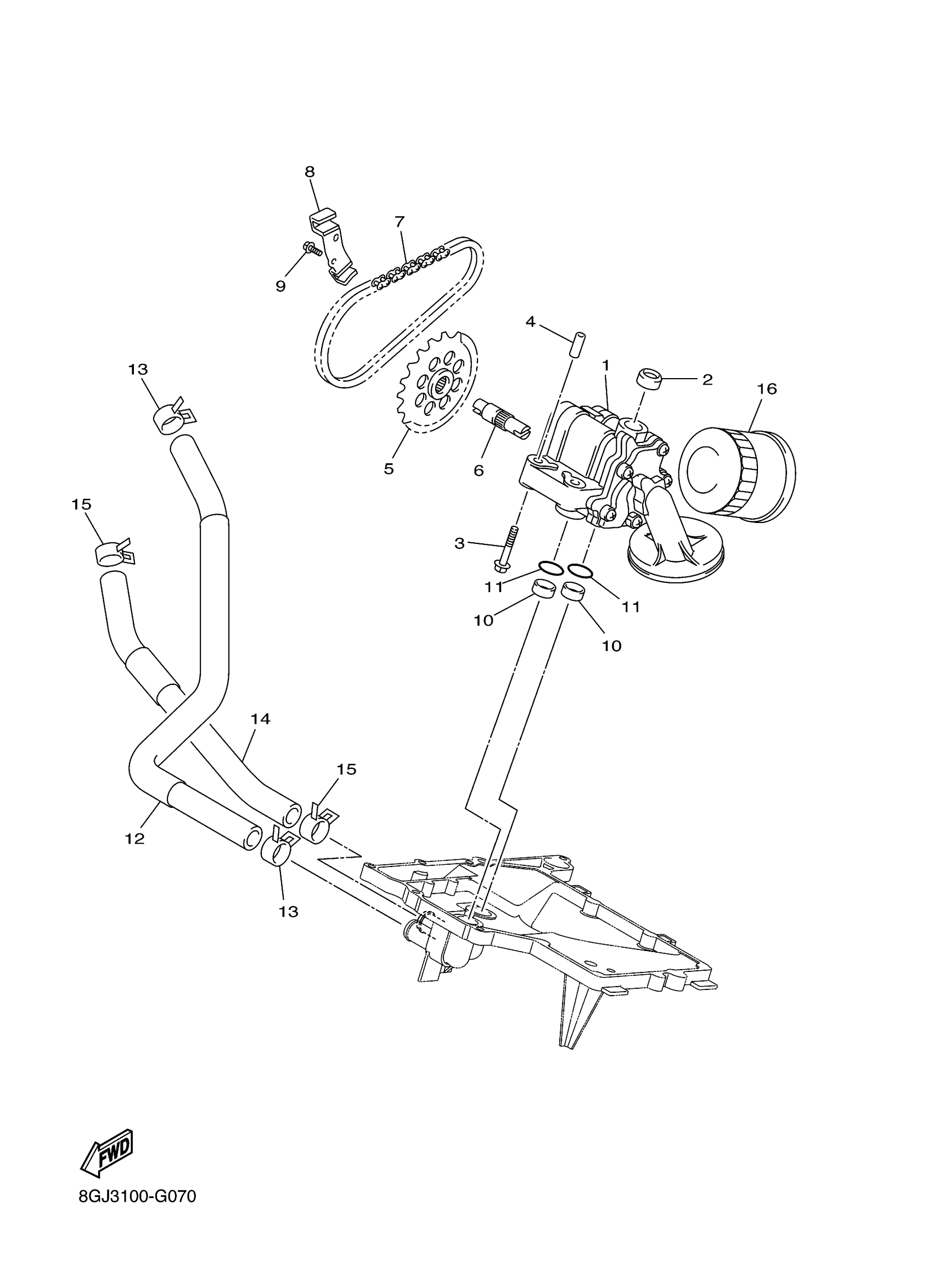

Yamaha PZ50GTDW (PHAZER GT) 8GK9 2013 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8GC-13300-00-00

Unavailable

2

GASKET

5GJ-13475-00-00

$5.49

3

BOLT, FLANGE

95817-06040-00

$5.60

4

PIN, DOWEL

99530-08012-00

Unavailable

5

SPROCKET, DRIVEN

8GC-13355-10-00

Unavailable

6

SHAFT, DRIVEN GEAR

8GC-13344-10-00

$42.99

7

CHAIN

94581-94068-00

Unavailable

8

HOLDER

8GC-13898-10-00

$20.99

9

BOLT, FLANGE

90105-06090-00

$8.49

10

COLLAR

90387-13005-00

$3.50

11

O-RING (22U)

93210-15566-00

$7.49

12

HOSE, OIL 1

8GC-13464-00-00

$41.99

13

CLIP(34X)

90467-22097-00

$9.49

14

HOSE, OIL 2

8GC-13465-00-00

$30.99

15

CLIP(34X)

90467-22097-00

$9.49

16

ELEMENT ASSY, OIL CLEANER

5DM-13440-00-00

Unavailable
