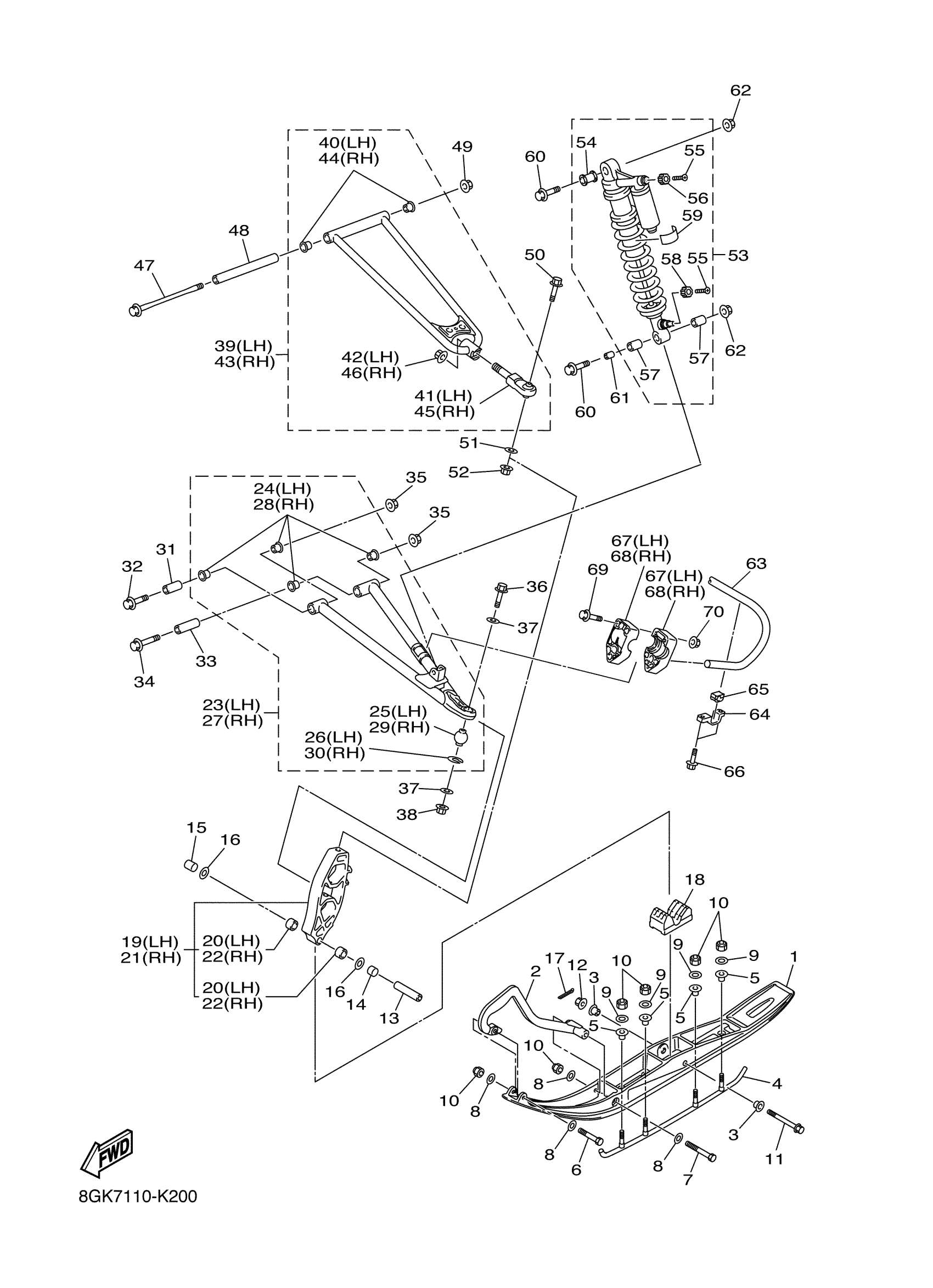

Yamaha PZ50GTBW (PHAZER GT) 8GK8 2012 SKI Diagram
#
1
SKI 1, BLACK
8EX-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER 1
8GK-F3731-00-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-1012H-00
$24.99
14
COLLAR
90387-16017-00
$5.60
15
COLLAR
90387-16018-00
$32.99
16
WASHER, PLATE
90201-16022-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
STOPPER 1
8GK-23743-00-00
Unavailable
19
STEERING KNUCKLE ASSY (LEFT)
8GK-23501-01-00
Unavailable
20
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
21
STEERING KNUCKLE ASSY (RIGHT)
8GK-23502-01-00
Unavailable
22
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
23
FRONT LOWER ARM COMP. (LEFT)
8GK-23570-C0-00
Unavailable
24
BUSH, SOLID
90381-16003-00
Unavailable
25
BALL JOINT 2
8GK-23579-01-00
Unavailable
26
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
27
FRONT LOWER ARM COMP. (RIGHT)
8GK-23580-C0-00
Unavailable
28
BUSH, SOLID
90381-16003-00
Unavailable
29
BALL JOINT 2
8GK-23579-01-00
Unavailable
30
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
31
COLLAR
90387-10093-00
Unavailable
32
BOLT, FLANGE
90105-10211-00
Unavailable
33
COLLAR
90387-10074-00
Unavailable
34
BOLT, FLANGE
90105-10212-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
$4.82
36
BOLT, FLANGE
90105-10210-00
Unavailable
37
WASHER, PLATE
90201-10051-00
Unavailable
38
NUT, S/L FLANGE
95602-10200-00
$4.82
39
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
Unavailable
40
BUSH, SOLID
90381-15003-00
Unavailable
41
BALL JOINT 1
8GK-23549-00-00
Unavailable
42
NUT, U FLANGE
95602-14200-00
Unavailable
43
FRONT UPPER ARM COMP. (RIGHT)
8GK-23550-C0-00
Unavailable
44
BUSH, SOLID
90381-15003-00
Unavailable
45
BALL JOINT 1
8GK-23549-00-00
Unavailable
46
NUT, U FLANGE
95602-14200-00
Unavailable
47
BOLT, FLANGE
90105-10213-00
Unavailable
48
COLLAR
90387-10073-00
Unavailable
49
NUT, S/L FLANGE
95602-10200-00
$4.82
50
BOLT
91312-10045-00
Unavailable
51
WASHER, PLATE
90201-10052-00
Unavailable
52
NUT, S/L FLANGE
95602-10200-00
$4.82
53
ABSORBER ASSY 1
8GK-2376A-50-00
Unavailable
54
DAMPER, BUSH B
8GN-2331R-00-00
Unavailable
55
SCREW, OVAL HEAD
98680-03008-00
Unavailable
56
. KNOB (COMP)
5EA-22464-00-00
Unavailable
57
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
58
KNOB (TEN)
5JW-2319W-00-00
Unavailable
59
LABEL, WARNING
4AA-22259-60-00
Unavailable
60
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
61
COLLAR
90387-10024-00
Unavailable
62
NUT, S/L FLANGE
95602-10200-00
$4.82
63
BAR, STABILIZER FRONT
8GK-2386E-10-00
Unavailable
64
HOLDER, STABILIZER FRONT
8GK-2386C-00-00
Unavailable
65
BUSH, STABILIZER FRONT
8GK-2386G-10-00
Unavailable
66
BOLT, FLANGE
95812-08020-00
Unavailable
67
JOINT, STABILIZER 1
8GK-2385L-10-00
Unavailable
68
JOINT, STABILIZER 2
8GK-2385M-10-00
Unavailable
69
BOLT, FLANGE
95817-06040-00
Unavailable
70
NUT, U FLANGE
95604-06200-00
Unavailable
