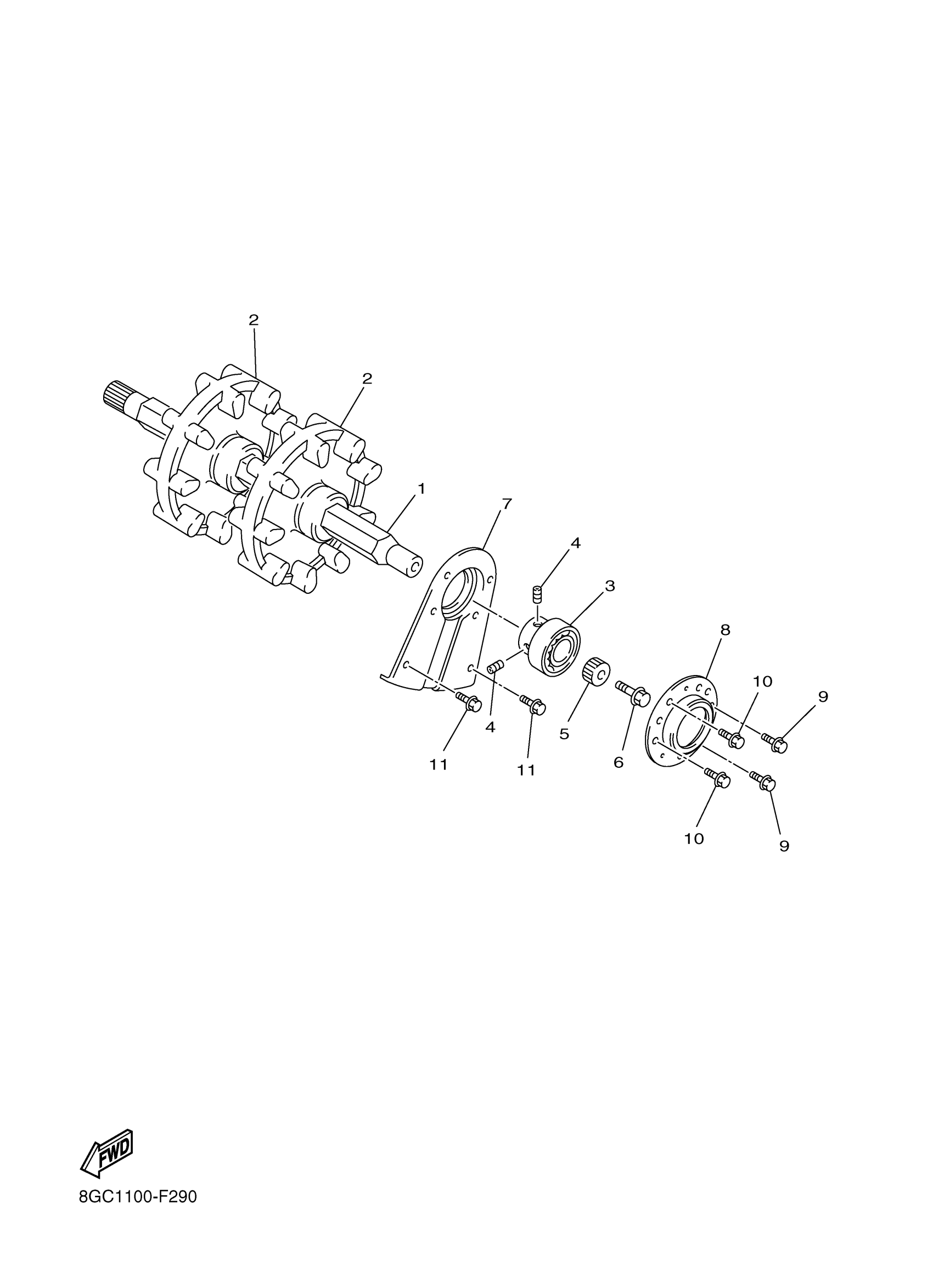

Yamaha PZ50FXW (PHAZER FX) 8GN1 2007 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8GC-47511-00-00

$321.18

2

WHEEL, SPROCKET 1

8CM-47531-10-00

$137.70

3

BEARING(8CJ)

93306-20589-00

$48.16

4

BOLT, SET

90113-06006-00

$3.34

5

JOINT

8EK-47715-00-00

$28.34

6

BOLT, FLANGE(3GD)

95817-10025-00

$5.75

7

HOUSING, REINF SUB-ASSY(L.H)

8GC-21920-00-00

Unavailable

8

HOUSING, FRONT AXLE

8EK-47551-00-00

$8.83

9

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

10

BOLT, FLANGE(4LN)

95817-08025-00

$5.75

11

BOLT, FLANGE(8AB)

95817-08020-00

$6.52
